Fisher FIELDVUE DVC6200 Instruction Manual page 70

Parts
February 2017

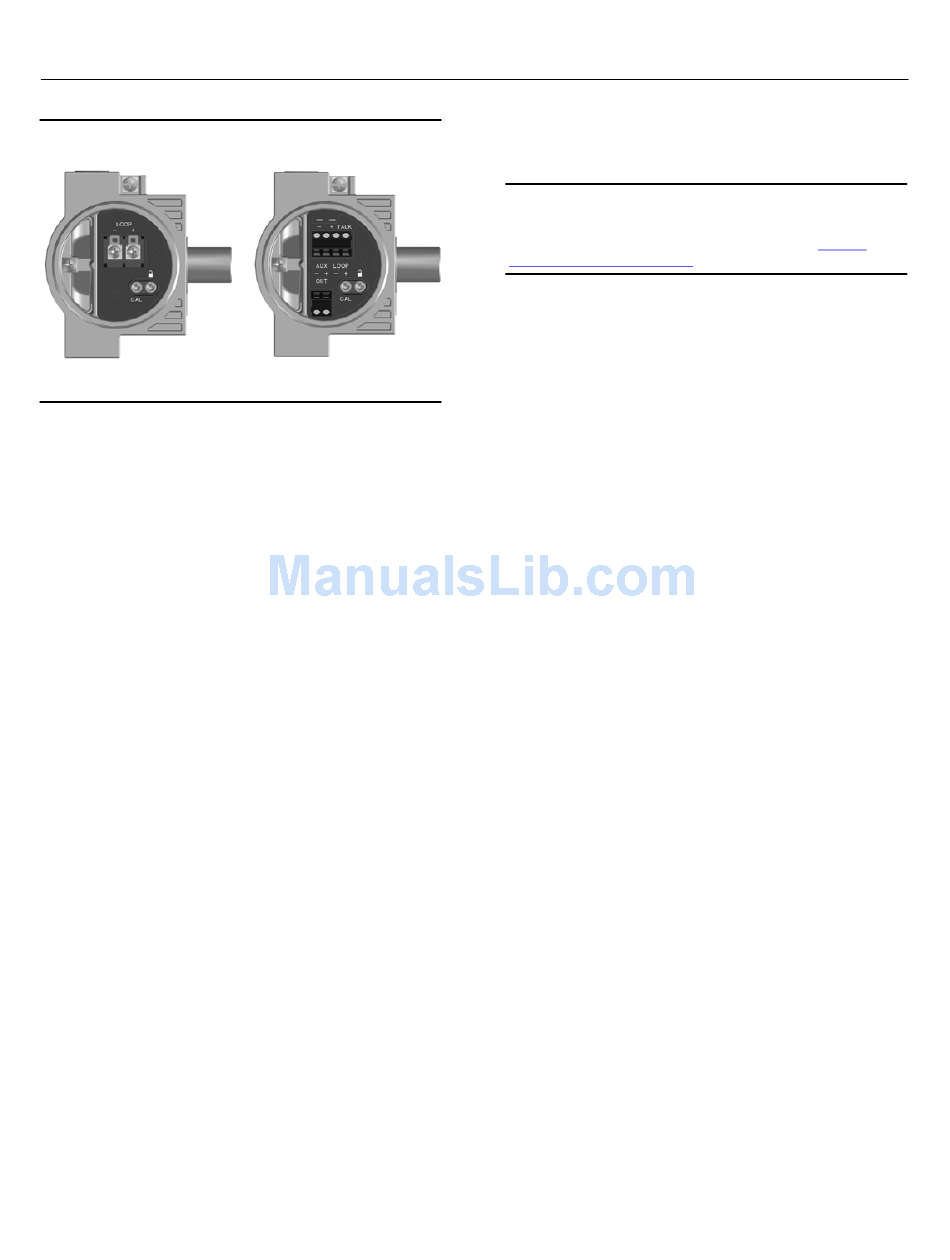

Figure 7‐1. Terminal Box
WITHOUT I/O PACKAGE
Kit Description
5* I/P Converter Kit
Standard
For Extreme Temperature option
(fluorosilicone elastomers)
6* Spare Module Base Assembly Kit,
[kit contains module base (key 2); drive screws, qty. 2,
(key 11); shield/label (key 19); hex socket cap screw, qty. 3,
(key 38); self tapping screw, qty. 2 (key 49); pipe plug, qty. 3
(key 61); retaining ring, qty. 3 (key 154); screen (key 236);
and flame arrestors, qty. 3 (key 243)]
Aluminum
Stainless Steel
7* Spare Housing Assembly Kit
[kit contains housing (key 1); vent assembly (key 52);
seal (only included in Housing A kits) (key 288);
seal (key 237); O‐ring (key 34); O‐ring (only used
with integrally mounted regulator) (key 5)]
Aluminum
Housing A (used for GX actuator)
Standard (nitrile elastomers)
Extreme Temperature option
(fluorosilicone elastomers)
Housing B (used for all actuators except GX)
Standard (nitrile elastomers)
Extreme Temperature option
(fluorosilicone elastomers)
Stainless Steel
Housing B (used for all actuators except GX)
Extreme Temperature option
(fluorosilicone elastomers)
8* Spare I/P Shroud Kit
[kit contains shroud (key 169) and
hex socket cap screw, qty. 4 (key 23)]
70
WITH I/O PACKAGE
Part Number
38B6041X152
38B6041X132
GE18654X012
GE18654X022
GE48798X032
GE48798X042
GE48798X072
GE48798X082
GE48798X102
GE29183X012
Kit Description
Note
The Remote Mount Feedback Unit kit is not orderable by part number
due to nameplate/approval requirements. Contact your
Automation Solutions sales office
9 Remote Mount Feedback Unit Kit (see figure 7‐5)
[remote housing assembly (key25); hex socket set
screw (key 58); 1/2 NPT pipe plug (key 62); wire retainer, qty 2
(key 131); terminal cover (key 255); o-ring (key 256); gasket
(Housing A only, used for GX actuator) (key 287); seal
(Housing A only, used for GX actuator) (key 288)
10 Feedback Array Kit
Sliding Stem (Linear)
[kit contains feedback array and hex socket cap screws, qty. 2,
washer, plain, qty. 2, external tooth lock washer, qty. 2 (only
with aluminum feedback array kit) and alignment template.
210 mm (8-1/4 inch) kit contains feedback array and hex
socket cap screws, qty. 4, washer, plain, qty. 4, external tooth
lock washer, qty. 4 (only with aluminum feedback array kit),
alignment template and insert]. Stainless steel kits only for use
with stainless steel mounting kits.
7 mm (1/4-inch)
Aluminum
19 mm (3/4-inch)
Aluminum
Stainless steel
25 mm (1-inch)
Aluminum
Stainless steel
38 mm (1-1/2 inch)
Aluminum
Stainless steel
50 mm (2-inch)
Aluminum
Stainless steel
110 mm (4-1/8 inch)
Aluminum
Stainless steel
210 mm (8-1/4 inch)
Aluminum
Stainless steel
Rotary
[Kit contains feedback assembly, pointer assembly, travel
indicator scale and M3 machine pan head screws qty. 2].
Stainless steel kits only for use with stainless steel mounting kits.
Aluminum
Stainless steel
11 Mounting Shield Kit
[kit contains shield, qty. 3 and machine
screws, qty. 6]
12* Gasket/Seal Kit, for use with GX actuator
[kit contains insulating gasket (key 287)
and seal (key 288)]
*Recommended spare parts
Instruction Manual
D103605X012
Part Number
Emerson
for information on ordering this kit.
GG20240X012
GG20240X022
GE65853X012
GG20240X032
GE65853X022
GG20240X042
GE65853X032
GG20240X052
GE65853X042
GG20240X082
GE65853X062
GG20243X012
GE65853X072
GE71982X012
GE71982X022
GG05242X022
GE45468X012
