Introduction
February 2017

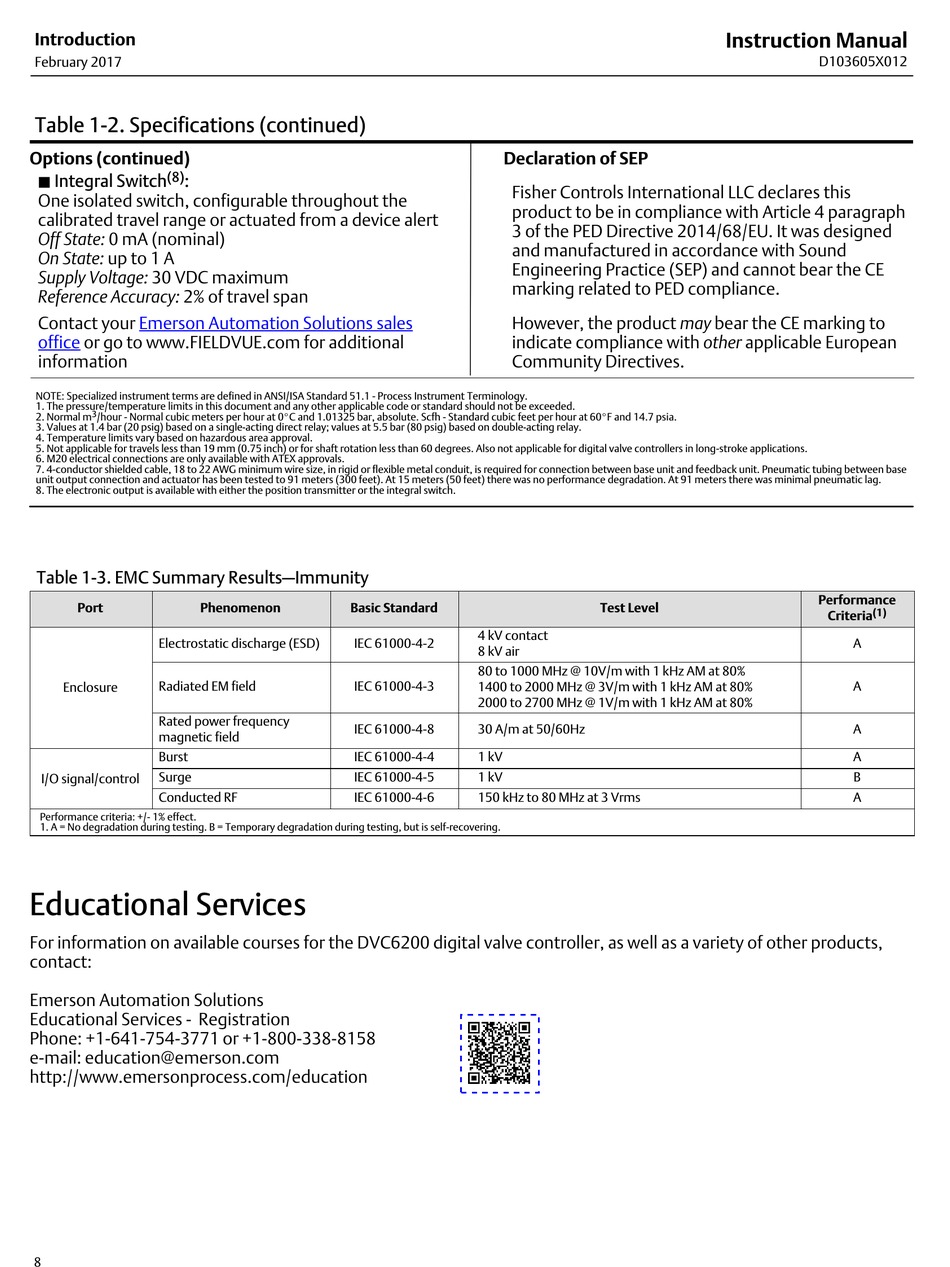

Table 1‐2. Specifications (continued)
Options (continued)
(8)
Integral Switch :
J
One isolated switch, configurable throughout the
calibrated travel range or actuated from a device alert
Off State: 0 mA (nominal)
On State: up to 1 A
Supply Voltage: 30 VDC maximum
Reference Accuracy: 2% of travel span
Contact your Emerson Automation Solutions sales
office or go to www.FIELDVUE.com for additional
information
NOTE: Specialized instrument terms are defined in ANSI/ISA Standard 51.1 - Process Instrument Terminology.
1. The pressure/temperature limits in this document and any other applicable code or standard should not be exceeded.
3
2. Normal m /hour - Normal cubic meters per hour at 0_C and 1.01325 bar, absolute. Scfh - Standard cubic feet per hour at 60_F and 14.7 psia.
3. Values at 1.4 bar (20 psig) based on a single-acting direct relay; values at 5.5 bar (80 psig) based on double-acting relay.
4. Temperature limits vary based on hazardous area approval.
5. Not applicable for travels less than 19 mm (0.75 inch) or for shaft rotation less than 60 degrees. Also not applicable for digital valve controllers in long‐stroke applications.
6. M20 electrical connections are only available with ATEX approvals.
7. 4‐conductor shielded cable, 18 to 22 AWG minimum wire size, in rigid or flexible metal conduit, is required for connection between base unit and feedback unit. Pneumatic tubing between base
unit output connection and actuator has been tested to 91 meters (300 feet). At 15 meters (50 feet) there was no performance degradation. At 91 meters there was minimal pneumatic lag.
8. The electronic output is available with either the position transmitter or the integral switch.
Table 1‐3. EMC Summary Results—Immunity
Port Phenomenon
Electrostatic discharge (ESD)
Radiated EM field
Enclosure
Rated power frequency
magnetic field
Burst
Surge
I/O signal/control
Conducted RF
Performance criteria: +/- 1% effect.
1. A = No degradation during testing. B = Temporary degradation during testing, but is self‐recovering.

Educational Services

For information on available courses for the DVC6200 digital valve controller, as well as a variety of other products,
contact:
Emerson Automation Solutions
Educational Services - Registration
Phone: +1-641‐754‐3771 or +1-800‐338‐8158
e‐mail: education@emerson.com
http://www.emersonprocess.com/education
8
Declaration of SEP
Fisher Controls International LLC declares this
product to be in compliance with Article 4 paragraph
3 of the PED Directive 2014/68/EU. It was designed
and manufactured in accordance with Sound
Engineering Practice (SEP) and cannot bear the CE
marking related to PED compliance.
However, the product may bear the CE marking to
indicate compliance with other applicable European
Community Directives.
Basic Standard
4 kV contact
IEC 61000‐4‐2
8 kV air
80 to 1000 MHz @ 10V/m with 1 kHz AM at 80%
IEC 61000‐4‐3 1400 to 2000 MHz @ 3V/m with 1 kHz AM at 80%
2000 to 2700 MHz @ 1V/m with 1 kHz AM at 80%
IEC 61000‐4‐8 30 A/m at 50/60Hz
IEC 61000‐4‐4 1 kV
IEC 61000‐4‐5 1 kV
IEC 61000‐4‐6 150 kHz to 80 MHz at 3 Vrms
Instruction Manual
Test Level
D103605X012
Performance
(1)
Criteria
A
A
A
A
B
A
