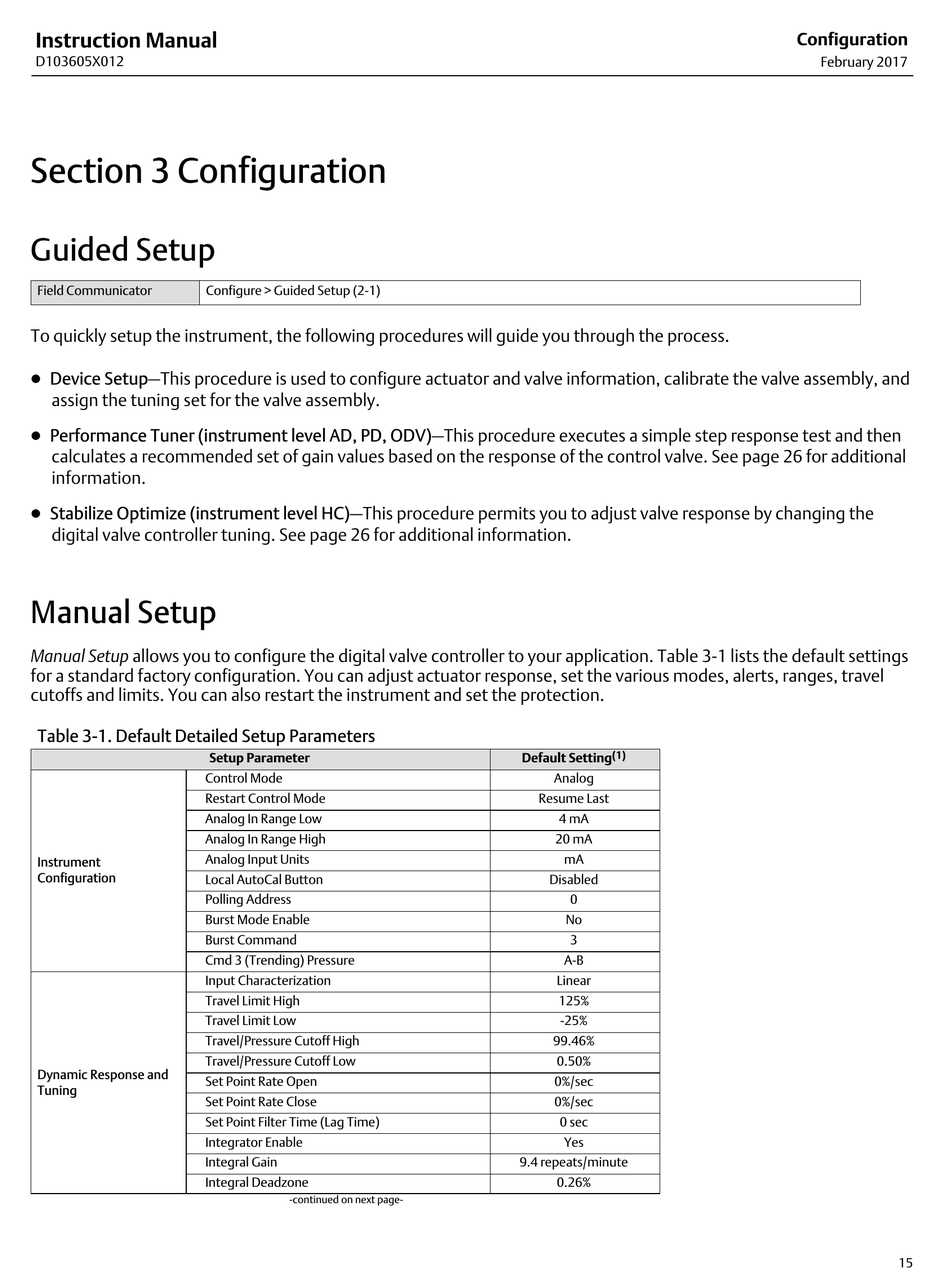

Section 3 Configuration

Guided Setup

Field Communicator Configure > Guided Setup (2‐1)
To quickly setup the instrument, the following procedures will guide you through the process.
D Device Setup—This procedure is used to configure actuator and valve information, calibrate the valve assembly, and
assign the tuning set for the valve assembly.
D Performance Tuner (instrument level AD, PD, ODV)—This procedure executes a simple step response test and then
calculates a recommended set of gain values based on the response of the control valve. See page 26 for additional
information.
D Stabilize Optimize (instrument level HC)—This procedure permits you to adjust valve response by changing the
digital valve controller tuning. See page 26 for additional information.

Manual Setup

Manual Setup allows you to configure the digital valve controller to your application. Table 3‐1 lists the default settings
for a standard factory configuration. You can adjust actuator response, set the various modes, alerts, ranges, travel
cutoffs and limits. You can also restart the instrument and set the protection.
Table 3‐1. Default Detailed Setup Parameters
Control Mode
Restart Control Mode
Analog In Range Low
Analog In Range High
Analog Input Units
Instrument
Configuration
Local AutoCal Button
Polling Address
Burst Mode Enable
Burst Command
Cmd 3 (Trending) Pressure
Input Characterization
Travel Limit High
Travel Limit Low
Travel/Pressure Cutoff High
Travel/Pressure Cutoff Low
Dynamic Response and
Set Point Rate Open
Tuning
Set Point Rate Close
Set Point Filter Time (Lag Time)
Integrator Enable
Integral Gain
Integral Deadzone
33
Setup Parameter
-continued on next page-
(1)
Default Setting
Analog
Resume Last
4 mA
20 mA
mA
Disabled
0
No
3
A-B
Linear
125%
-25%
99.46%
0.50%
0%/sec
0%/sec
0 sec
Yes
9.4 repeats/minute
0.26%
