Introduction
February 2017

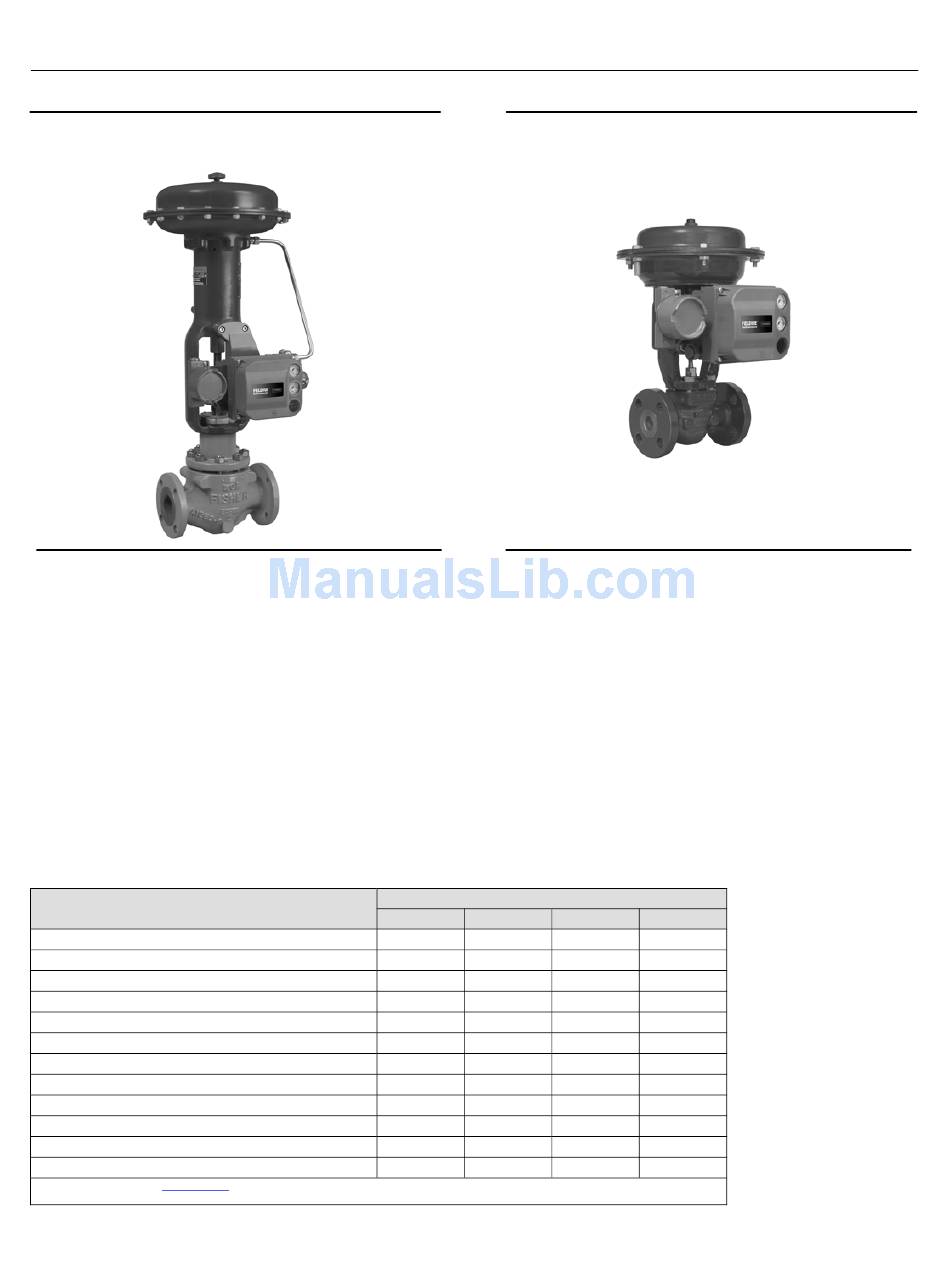

Figure 1‐1. FIELDVUE DVC6200 Digital Valve
Controller Mounted on a Fisher Sliding-Stem Valve
Actuator
W9643
Using a personal computer and ValveLink software or AMS Suite: Intelligent Device Manager, or a Field Communicator,
you can perform several operations with the DVC6200 digital valve controller. You can obtain general information
concerning software revision level, messages, tag, descriptor, and date.
Diagnostic information is available to aid you when troubleshooting. Input and output configuration parameters can
be set, and the digital valve controller can be calibrated. Refer to table 1‐1 for details on the capabilities of each
diagnostic tier.
Using the HART protocol, information from the field can be integrated into control systems or be received on a single
loop basis.
The DVC6200 digital valve controller is designed to directly replace standard pneumatic and electro‐pneumatic valve
mounted positioners.
Table 1‐1. Instrument Level Capabilities
CAPABILITY
Auto Calibration
Custom Characterization
Burst Communication
Alerts
Step Response, Drive Signal Test & Dynamic Error Band
Advanced Diagnostics (Valve Signature)
Performance Tuner
Travel Control ‐ Pressure Fallback
Supply Pressure Sensor
Performance Diagnostics
Solenoid Valve Testing
(1)
Lead/Lag Set Point Filter
1. Refer to brochure part # D351146X012
2. HC = HART Communicating ; AD = Advanced Diagnostics ; PD = Performance Diagnostics ; ODV = Optimized Digital Valve.
4
for information on Fisher optimized digital valves for compressor antisurge applications.
Figure 1‐2. FIELDVUE DVC6200 Digital Valve
Controller Integrally Mounted to a Fisher GX Control
Valve
W9616
DIAGNOSTIC LEVEL
HC AD PD
X X X
X X X
X X X
X X X
X X
X X
X X
X X
X X
X
X
Instruction Manual
(2)
ODV
X
X
X
X
X
X
X
X
X
X
X
X
D103605X012
