- Page 1 EHN3200 User’s Manual Copyright © EverFocus Electronics Corp, Release: Apr. 2011 Rev. 0...
- Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
- Page 3 EHN3200 About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
- Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About this AC Adaptor...
-
Page 5: Table Of Contents
EHN3200 TABLE OF CONTENTS 1. INTRODUCTION....................6 2. FEATURES ......................6 3. ACCESSING THE CAMERA MENU ..............7 4. PLAYBACK ......................11 5. SETTING........................13 5.1 S ......................13 YSTEM 5.1.1 Information Tab...................13 5.1.2 Log Tab .......................14 5.2 U ......................15 ONFIG 5.3 N ......................17 ETWORK 5.3.1 Network.......................17... -
Page 6: Introduction

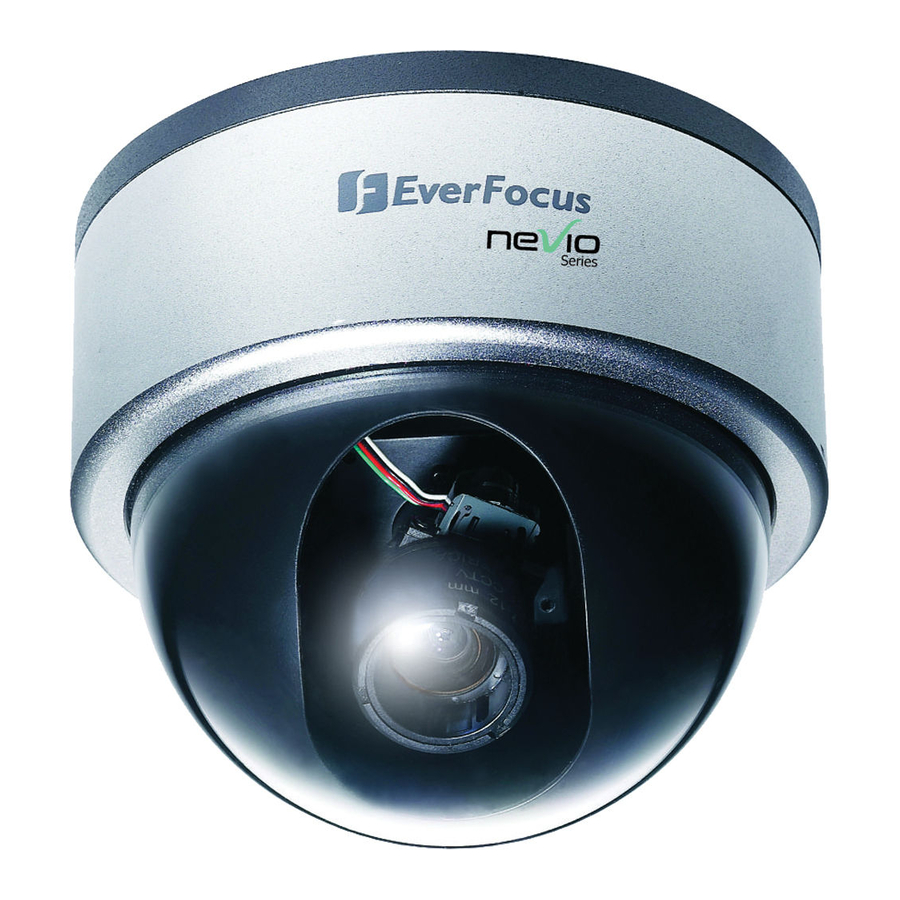

12VDC supply. IP66 rated weather-proof and vandal-resistant design, and Power over Ethernet (PoE), the EHN3200 is a durable network dome camera suited with features for the most demanding environments. -
Page 7: Accessing The Camera Menu
3. ACCESSING THE CAMERA MENU Step 1. Start an Internet Explorer browser session. Before accessing to the EHN3200 over IE browser, user should adjust the security level. Open the IE browser and set the security level to “Low” in “Tools->InternetOptions->Security->CustomLevel…”, and enable ActiveX Control and Plug-in directly as well. - Page 8 EHN3200 Step 5. You might be required to download Active X files, which are required to process camera video. Please click "Install". Step 6. Congratulations!! You should now be able to see the live image. ○ ○ ○ ○ ○...
- Page 9 Setting page, there are 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System]. Please refer to “Section 5. Setting” for further information. Press button to close the EHN3200 network page. ○ Video Stream ○ Select the desired Video Stream from Stream 1 and Stream 2 (stream must be enabled in camera Setting menu).
- Page 10 EHN3200 Record ○ The record button is used to record the current video stream. The location where the image file is saved can be specified in Setting -> User Config. Please refer to “Section 5.2 User Config” for further information.
-
Page 11: Playback
EHN3200 about Motion setup. Record Alarm Motion Scroll bar: Drag the scroll bar to move the image up, down, left or right if the ○ image size exceeds window’s size. 4. Playback Playback button is only active when SD card is inserted. If SD card is not inserted, Playback button will be disabled. - Page 12 EHN3200 Press the calendar icon to select the date and time to be searched. Press button to start time search. In “Recording List” section, the file name and file information that is the most close to the specified time will be displayed. Click the file name that you wish to playback and press button.
-
Page 13: Setting
EHN3200 Remotely remove the selected file from SD card. Press button to return to live view. 5. SETTING Click this button to display the camera setup menu. Note: Press button anytime to return to live view. 5.1 System Info System information and system log events can be accessed on this page via 2 tabs: [Information] tab and [Log] tab. -
Page 14: Log Tab
EHN3200 5.1.2 Log Tab System Log: Date/Time: displays date and time of the log event. Log message: all information and event message, including login, user’s IP, reboot,... -
Page 15: User Config
EHN3200 firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records. Press button to export the system log into a “.txt” file and select the location where the exported log file will be saved. - Page 16 EHN3200 Position: Select the position where the text will be displayed: Upper Left / Lower Right / Lower Left. Press Apply to apply the setting changes or Reset to reset without saving the changes. Date/Time Format Used in Text Select Date/Time Format from the following options: * day of week, Month, date, year Time Format: choose between 24 Hours or 12 Hours.
-
Page 17: Network
EHN3200 Language Settings Language: Select the language to be displayed in web page. Default language is English. To add a new language which is not listed in the original configuration, press the Browse button to locate the new language file (.evb) and then click the Load button. - Page 18 EHN3200 The following information is required to configure the network settings. Contact the network administrator or your Internet service provider. IP Settings • IP Type • IP address • Subnet mask • Gateway (when using the gateway server/router) • Primary DNS, Secondary DNS (when using DNS)
- Page 19 EHN3200 Gateway This field is to set the gateway for your network so the IP camera will be recognized within the network. When DHCP is selected, the DHCP server will assign this value automatically. Primary DNS An IP address of DNS server that is provided by ISP. This address may be assigned automatically if DHCP is used.
-
Page 20: Ddns
EHN3200 for example. Note also that all multicast viewers count as one unicast viewer Multicast IP: Enter the multicast IP address. Port: Enter the multicast port. Time to live: Enter the multicast TTL value. It is a limit on the period of time or number of iterations or transmissions in computer and computer network technology that a unit of data (e.g. -
Page 21: Smtp/Ftp
○ www.no-ip.com ○ Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can easily register a DDNS name and obtain free DDNS services from EverFocus at ” ww.everfocusddns.com”. Enter an IP Cam Account Name: .everfocusddns.com... - Page 22 EHN3200 Set SMTP The settings relating to the mail server used to send the e-mail notification from the camera to predefined addresses via SMTP can be configured. SMTP Server: Enter the IP address or the host name of the SMTP server used to send e-mails SMTP Port: Enter the port number for SMTP.
-
Page 23: Snmp
EHN3200 FTP Port: Enter the port number for FTP server. Default is 21. Recording Path: Assign the recording path. User Name: Set FTP User name. Password: Set FTP password. PASV mode: Check to enable Passive mode (most sites normally require Passive mode). - Page 24 EHN3200 Set SNMP Server SNMP is the Simple Network Management Protocol. The SNMP protocol is used by network management systems to communicate with network elements. Many network elements support only SNMPv1, SNMPv2 and SNMPv2c. Support for SNMPv3 is minimal. Version...
-
Page 25: Network Alarm (Reserved For Powercon)
EHN3200 Read-only Privacy method: Select the privacy method which will be used with the encryption password. (Read-only) Read-only Privacy key: Set privacy password. (Read-only) Read-Write Username: Set the user name to be used for authentication and privacy. (Read-write) Read-Write Auth. Method: Select authentication method which will be used with the password to authenticate with the device. -
Page 26: Video
EHN3200 Set Network Alarm This function is reserved for PowerCon software, for the details regarding these settings please refer to the documentation for the PowerCon network alarm protocol. 5.4 Video The settings relating video such as streaming, camera OSD can be configured on this page. - Page 27 EHN3200 (CBR). Constant Bit Rates: 6M/5M/4M/3M/2M/1.5M/1M/750K/500K/384K/256K bit/s CBR allows you to set a fixed Target bit rate that consumes a predictable amount of bandwidth. As the bit rate would usually need to increase for increased image activity, but in this case cannot, the frame rate and image quality are affected negatively.
- Page 28 EHN3200 Video Recording Setting User can set video recording by selecting one of the enabled video stream. This will allow users to view live images while also recording video from another video stream. Video Stream: Select video recording stream from any enabled stream. Selections are Stream 1 / Stream 2.
-
Page 29: Camera
EHN3200 5.4.2 Camera Image Settings Brightness: to increase or decrease object contrast of images. It is adjustable from 0~255. Contrast: to increase or decrease object contrast of images. It is adjustable from 0~255. Saturation: to increase or decrease color saturation of video images. It is adjustable from 0~255. - Page 30 EHN3200 Camera Settings BLC: Select ON or OFF for Backlight Compensation. ON: When the background of the subject is very bright and the subject itself is dark, set the BLC ON. The BLC will measure the light of the image center and the lens iris will automatically set for optimum image quality.
-
Page 31: Advanced
EHN3200 5.4.3 Advanced Advanced Settings White Balance Settings The screen color can be adjusted by using the WHITE BALANCE function. White Bal: Select the mode you would like to operate from Auto and Custom. Auto: White balance will be adjusted automatically by the system. -
Page 32: Privacy Mask
EHN3200 light level conditions by automatically compensating for changes in the level of light. Select the mode you would like to operate from Off, X2 and X4. Note: 1. When SHUTTER is in manual mode, SENSE-UP will be disabled. 2. When AGC is turned off, SENSE-UP will be disabled. -
Page 33: Audio
5.5 Audio The EHN3200 camera can transmit audio to client PCs by connecting an external source (line-in), and can play audio received from client PCs (line-out) into amplified speakers. This section describes how to configure the basic audio settings. -
Page 34: User
EHN3200 Audio Input volume: Adjust the Audio Input Volume for the audio input devices connected to the camera if there are problems with the sound input being too low or high. Press Apply to apply the setting changes or Reset to reset without saving the changes. -
Page 35: Event
EHN3200 • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menus and can determine the registration of all other users. However, an administrator is not allowed to change a supervisor’s account and password. • User- can view the Live View page, system info, network, video, audio, and adjust user config settings. -
Page 36: Event Settings
EHN3200 Note: 1. * Record to PC only works when PC and IP camera are connected. 2. **Only Upload to FTP can be selected to record event video to remote site. 3. Up to 10 event types can be configured in the camera, and up to 3 of these can be configured to upload images 5.7.1 Event Settings... - Page 37 EHN3200 To change the priority of events, click on the event and it will be highlighted. Press button to change the priority of events. The event that has highest priority will be activated first. Press Apply to apply the setting changes or Reset to reset without saving the change.
-
Page 38: Motion Detection
EHN3200 6. Check “Enable Pre-Trigger Buffer” and “Enable Post-Trigger Buffer”. 7. Click to save this event in event list. Pre/Post Trigger Settings This function is used to be able to review what happened immediately before and after a trigger, e.g. 5 seconds before or after a motion has been detected, or after motion detection ceases. -
Page 39: Alarm I/O
EHN3200 sequentially to form a rectangular on the preview window with the mouse. The rectangular area between these 2 points is filled with color and this is the motion areas. Press to have the entire screen selected for motion detection. -
Page 40: Schedule
EHN3200 Alarm Settings Input Triggering Type: Select from Normal Close and Normal Open. (Default: Normal Open) Output Triggering Type: Select from Normal Close and Normal Open. (Default: Normal Open) Press Apply to apply the setting changes or Reset to reset without saving the change. -
Page 41: System
EHN3200 color timezone has been set to the event schedule. The deselected blocks will turn back the original background color, which means the timezone has not been set to the event schedule. Press Apply to apply the setting changes or Reset to reset without saving the change. - Page 42 EHN3200 Press Apply to apply the setting changes or Reset to reset without saving the change. Set Time Zone Time Zone: Select a time zone according to where the camera is located. Set Date/Time Manually Date: Click the calendar and pick the date. Press << to go previous year, < to go previous month, >...
-
Page 43: Daylight Saving
EHN3200 5.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time for daylight saving time. Set the start week for daylight saving time: 1 / Last Set the start day of the week for daylight saving time: Sunday / Monday / Tuesday... -
Page 44: Sd Card
EHN3200 5.8.3 SD Card Setup SD Card Notification: Notification will be made via e-mail when the remaining space of the SD memory card reached the value selected from the following. 50%, 20%, 10%, 5%, 2%, 0% Notes: 1. When "50%" is selected, e-mail notification will be made each time the remaining space reaches 50%, 20%, 10%, 5%, 2% and 0%. - Page 45 EHN3200 if the SD card is full and Overwrite is “Off”. Press Apply to apply the setting changes or Reset to reset without saving the change. SD Card Utility The total size and available size of the SD memory card will be displayed.
-
Page 46: Maintenance
EHN3200 5.8.4 Maintenance Maintenance Reboot: The unit is rebooted without changing any of the settings. Use this method by pressing Reboot button if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to the factory default values by pressing Restore button. - Page 47 (see above) and then click the Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EHN3200 with the latest firmware. Press the Browse button to locate the firmware file. Press the Upgrade button to upgrade the firmware.
-
Page 48: Specifications
EHN3200 6. SPECIFICATIONS CAMERA Pickup Device 1/2.7" Full HD progressive scan CMOS sensor Lens Type Vari-focal lens, Auto Iris, f=3.3~12mm Sensitivity 0.5Lux / F=1.2 Day/Night True Day/Night with IR cut filter Electronic Shutter Speed 1/10000 s to 1/7.5 s (1/60 second nominal) - Page 49 EHN3200 Weight 0.74 kg / 1.6 lbs (TBD) Dimension 123mm (O.D.) x 107.8mm (H) ; 4.8” (O.D.) x 4.2” (H) ENVIRONMENTAL Operating Temp. -10°C ~50°C / 14°F~122°F Humidity < 90% not condensing Certifications CE / FCC...
