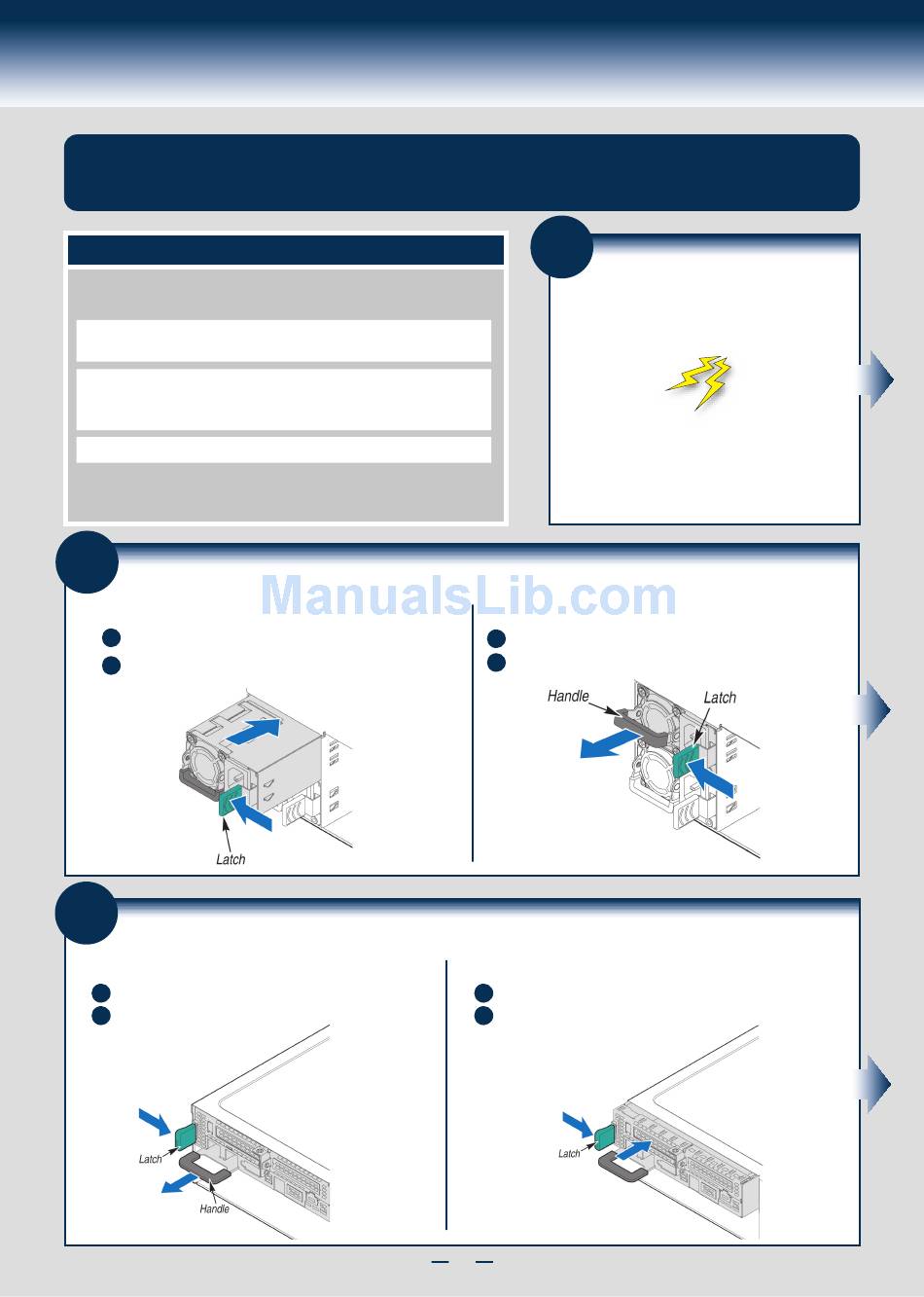

General Installation Process

The installation instructions in this section are for common components of Intel® Server System
H2000JP and H2000WP family.
Minimum Hardware Requirements
To avoid integration difficulties and possible board damage, your system must
meet the following minimum requirements:
• Processor:
Intel Xeon ® processor E5-2600 product family (TDP 130W or below).
®
• Memory Type:
Minimum of one 1GB DDR3 1066/1333/1600 MHz RDIMM.
• Hard Disk Drives: SATA/SAS
For a complete list of compatible processors, heatsinks, and memory, see
http://www.intel.com/p/en_US/support
2

Install/Remove the Power Supply Unit

Install the Power Supply Unit:
A
Align and slide in the Power Supply Unit to the power cage rail.
B
Push the Power Supply Unit along the rail until the latch locks in
position with a "tick" sound.
3
Remove/Install Computer Node Tray
To Remove Node Tray:
A
Push-in the latch on the left hand of Node Tray.
B
Pull the handle of the Node Tray while pushing the latch.
(post-production only)
Remove the Power Supply Unit:
A
Carefully push in the latch on the right hand of PSU.
B
Pull the handle with the PSU while still press the latch.
To Install Node Tray:
A
Align and slide in the Node Tray to the chassis rail.
B
Push the Node Tray along the rail until the latch locks in position
with a tick sound.
3
1

Preparing the System

Observe normal ESD (Electrostatic Discharge)
procedures.
Place your Intel ® Server System on a flat anti-static
surface to perform the following integration procedures.
Observe ESD procedures before reaching inside to make
server board connections or install components.
