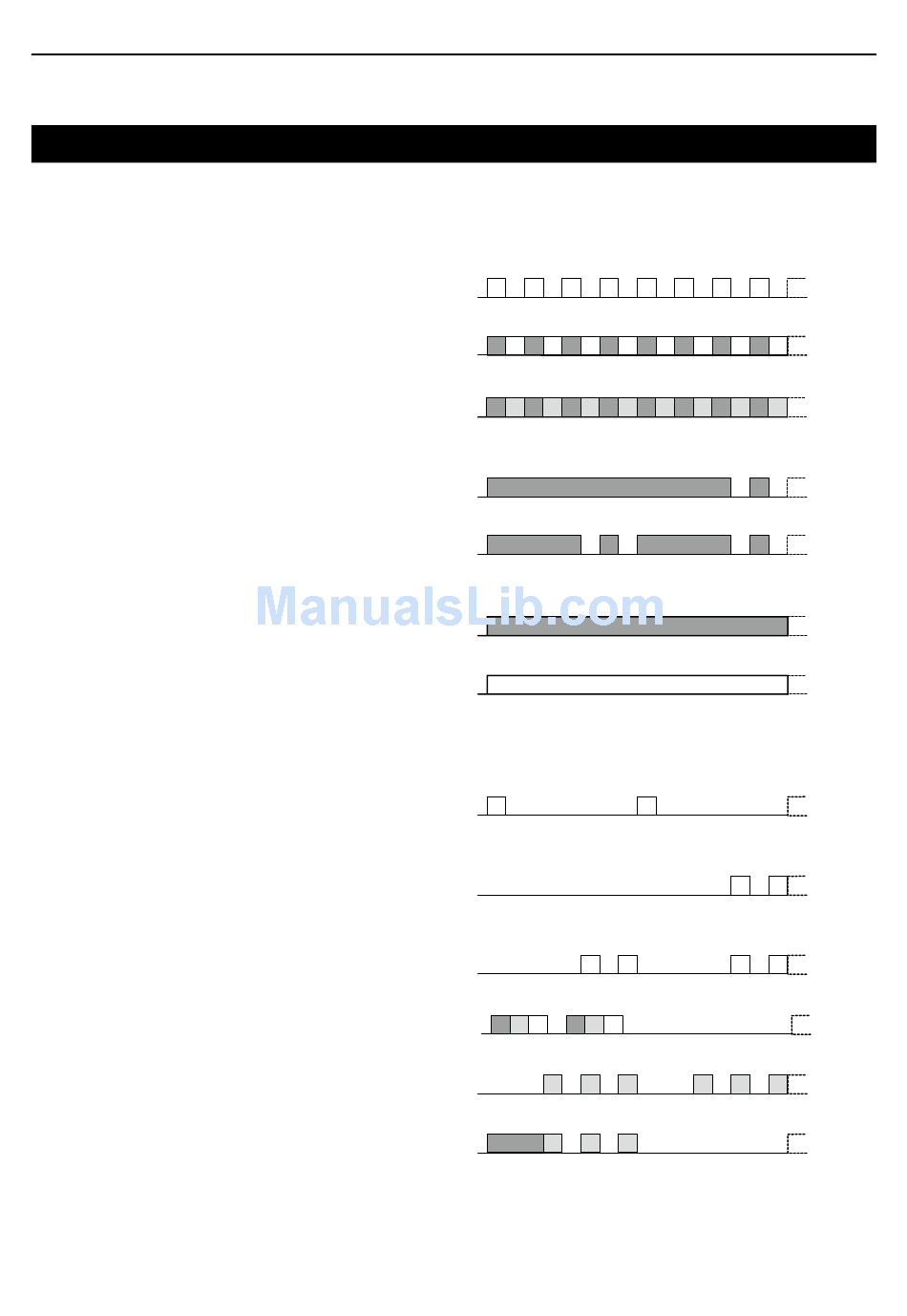

About the LED indicator

The LED indicator indicates the status of various
parameters of the transceiver as follows:
(Reference: R is Red, G is Green, O is Orange)
• Cloning:
Blinks while reading or writing data.
• Cloning Error:
Blinks if cloning fails.
• C hannel Error:
Blinks when you select a blank channel, or an
unlocked channel.
• TX low Battery 1:
B links while detecting a low battery in the TX mode.
• TX low Battery 2:
B links while detecting a very low battery in the TX
mode.
• T X:
Lights red while transmitting.
• RX busy:
On an analog channel, lights green when in the
noise squelch opens.
On a digital channel, lights green while detecting a
frame synchronization.
• Scan:
Blinks while scanning for a channel to search for a
signal.
• Low Battery 1:
Blinks slowly when you should charge the battery
soon.
• Low Battery 2:
Blinks fast when you must charge the battery.
• Power ON:
Blinks at transceiver startup.
• CH Access:
Blinks while making a Smart-Ring call.
• TX Error:
B links when inhibiting transmission (Lockout, TX
Inh, or TOT).
