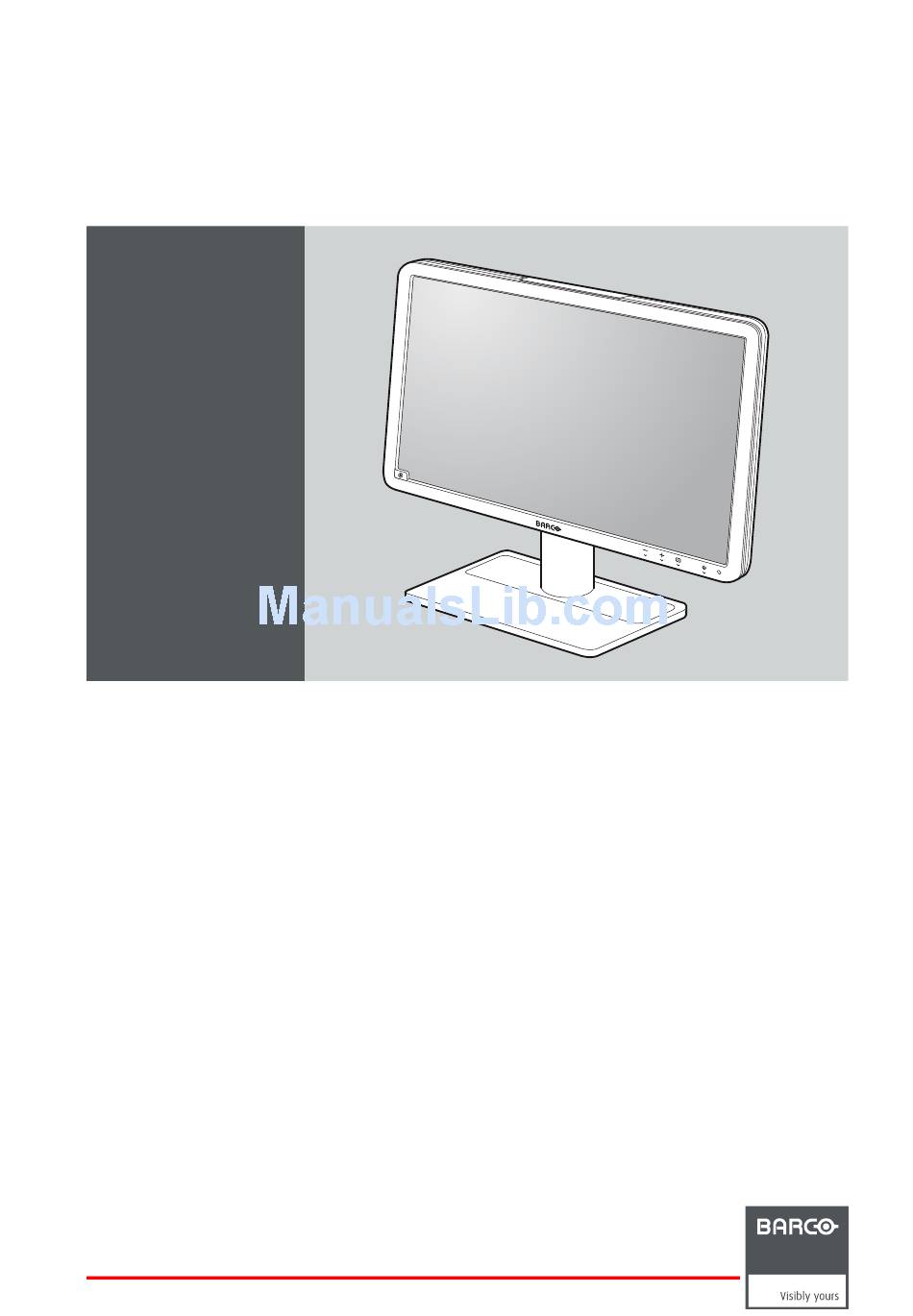

Page 1: User Guide
Eonis User Guide 22–inch clinical display MDRC-2122 WP MDRC-2122 BL MDRC-2122 TS K5903049/05 25/06/2015... - Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Belgium...
-
Page 3: Table Of Contents
Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 About the product .................... . 3 Symbols . - Page 4 Table of contents K5903049 EONIS 25/06/2015...
-
Page 5: Welcome
The multi- ple mounting options and connections further add to the smart design typical of Barco’s Eonis display. Most unique, however, is the excellent cleanability of the white Eonis display thanks to the toughened and scratch-proof glass. -
Page 6: Symbols
1. Welcome! Symbols Symbols in this document The following symbols are used in this document: Caution Warning Info, term definition. General info about the term Note: gives extra information about the described subject Tip: gives extra advice about the described subject What’s in the box Overview Your Eonis display comes with:... -
Page 7: Parts, Controls And Connectors
2. Parts, controls and connectors 2. PARTS, CONTROLS AND CONNECTORS Front view Overview Image 2-1 1. Front sensor 2. USB downstream connector 3. Left / Decrease key 4. Right / Increase key 5. Menu / Enter key 6. Standby key 7. -
Page 8: Rear View
2. Parts, controls and connectors Rear view Overview 10 11 Image 2-2 1. Connector compartment cover 2. Kensington security slots 3. Opening for cable routing strap 4. Height mechanism lock screw 5. VGA input 6. HDMI audio line out 7. USB downstream connector 8. -
Page 9: Display Installation
3. Display installation 3. DISPLAY INSTALLATION Unlocking the height mechanism To unlock the height mechanism In the factory, the height mechanism in the stand of your Eonis display is locked to prevent damage dur- ing transportation. You’ll first have to unlock this mechanism before you can adjust your display height position. -
Page 10: Removing The Cover
3. Display installation Image 3-2 Do not try to pivot your display when attached to the stand. Trying to do so AUTION could cause serious damage to your display and its stand. Removing the cover To remove the connector compartment cover The connector compartment cover should be removed to get access to the connectors. -
Page 11: Re-Attaching The Cover
3. Display installation 4. Connect the supplied external DC ( ) power supply to the +12 VDC power input of your display. 5. Plug the other end of the external DC ( ) power supply into a grounded power outlet by means of the proper power cord delivered with your display. -
Page 12: Kensington Security Slots
3. Display installation 3. Wrap and fix the cable routing strap around all cables. Image 3-6 Kensington security slots To make use of the Kensington security slots Your Eonis display has 2 Kensington slots available which allow you to secure the display to a desk or any other fixed object. - Page 13 3. Display installation Image 3-8 Use an arm that can support a weight of at least 12 kg (26.50 lbs). Failure to AUTION do so could make the panel fall, causing serious injury to a child or adult, and serious damage to the equipment.
- Page 14 3. Display installation K5903049 EONIS 25/06/2015...
-
Page 15: Daily Operation
To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white papers available at www.barco.com/healthcare. -
Page 16: On/Off Switching
4. Daily operation On/Off switching To switch your display on or off 1. Shortly press the Standby ( ) key. Bringing up the OSD menus About the OSD menu The OSD menu allows you to configure different settings to make your Eonis display fit your needs within your working environment. -
Page 17: Advanced Operation
5. Advanced operation 5. ADVANCED OPERATION Video input source selection About video input source selection By default, your Eonis display automatically detects and shows the connected video input source. How- ever, when for instance more then one video input source is connected, it may be needed to manually select the input source to be displayed. -
Page 18: Ambient Light Reading Room Selection
DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM gamma function results in more visible grayscales in the images. Barco recommends selecting the DICOM gamma function for most medical viewing applications. -
Page 19: Analog Video Settings
5. Advanced operation To select the white point 1. Bring up the OSD main menu. 2. Navigate to the Adjustments menu. 3. Enter the White Point submenu. 4. Select one of the available white point presets. Analog video settings The following settings are only available when VGA video input source is selected. About analog video settings When the VGA video input source is active, a number of analog video settings will become available: •... -
Page 20: Power Status Led
5. Advanced operation Power status LED About the power status LED By default, the power status LED has the following behavior: • Green: Display is on • Blinking green: Display is entering standby power-saving mode • Orange: Display is in standby power-saving mode •... -
Page 21: Factory Reset
5. Advanced operation • 1 min • 1 hr • 6 hr • 24 hr • Never • QAWeb: This setting will be automatically selected when the self calibration frequency is defined by MediCal QAWeb. To adjust the self calibration frequency 1. - Page 22 5. Advanced operation K5903049 EONIS 25/06/2015...
-
Page 23: Maintenance
The Eonis display does not require any scheduled maintenance or calibration activities. We recommend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display or return the display to a Barco approved maintenance organization. In any case of doubts, contact the Barco Healthcare Division. - Page 24 6. Maintenance K5903049 EONIS 25/06/2015...
-
Page 25: Important Information
7. Important information 7. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. -
Page 26: Power Cords
7. Important information To fully disengage the power to the device, please disconnect the power cord from the AC inlet. Power cords: • Do not overload wall outlets and extension cords as this may result in fire or electric shock. •... -
Page 27: Environmental Information
Sweden: "Apparaten skall anslutas till jordat uttag" Essential performance Barco states that the Eonis display is only used for reviewing medical digital images. These reviews are done in rooms where the equipment is unlikely to be in contact with patients. With this information, if the display fails, the patient is not in direct danger for harm. - Page 28 “Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”...
-
Page 29: Regulatory Compliance Information
7. Important information China Energy Label If there is a China Energy Label on your packaging or product, the product meets the following energy requirements corresponding with the energy efficiency level on the label. 按照中国 <<能源效率标识管理办 本显示器符合以下要求 本显示器符合以下要求 法>> This monitor is compliant with the This monitor is compliant with the following requirements following requirements... -
Page 30: Canadian Notice
7. Important information Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canadian notice This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. EMC notice General information No specific requirement on the use of external cables or other accessories except power supply. - Page 31 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Electrostatic discharge ± 6kV contact ± 6kV contact Floors should be wood, (ESD) concrete or ceramic tile. ± 8kV air ± 8kV air If floors are covered with IEC 61000-4-2 synthetic material, the relative humidity should...
- Page 32 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).
-
Page 33: Explanation Of Symbols
7. Important information Rated maximum output Separation distance according to frequency of transmitter power of transmitter 150kHz to 80MHz 80MHz to 800MHz 800MHz to 2.5GHz d=1.2√P d=1.2√P d=2.3√P 0.01 0.12 0.12 0.23 0.38 0.38 0.73 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. These guidelines may not apply in all situations. - Page 34 7. Important information Indicates the device is approved according to the UL Demko regulations Indicates the device is approved according to the CCC regulations Indicates the device is approved according to the VCCI regulations Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations Indicates the device is approved according to the PSE regulations Indicates the USB connectors on the device...
- Page 35 7. Important information Consult the operating instructions Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Indicates Direct Current (DC) Indicates Alternating Current (AC) Stand-by Equipotentiality Symbols on the box...
-
Page 36: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. - Page 37 7. Important information Power requirements (nominal) 100-240 V Power consumption (nominal) 40 W (<0,5 W in stand-by) Power save mode Power management DPMS Dot clock 165 MHz OSD languages English, French, German, Spanish, Italian, Dutch Dimensions with stand (W x H 507 x 377–457x 166 mm x D) 507 x 306 x 57 mm...
- Page 38 7. Important information MDRC-2122 WP Product acronym MDRC-2122 WP Screen technology TFT Color LCD IPS Active screen size (diagonal) 542 mm (21.5”) Active screen size (H x V) 267,3 mm x 475,2 mm (10.52” x 18.71”) Aspect ratio (H:V) 16:9 Resolution 2MP (1920 x 1080) Pixel pitch...
- Page 39 7. Important information Certifications CE (MDD 93/42/EEC class I product), CE-2004/108/EC, 2014/30/EU (Directive 2004/108/EC is repealed with effect from 20 April 2016), IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No.
- Page 40 7. Important information 14 ms Response time (Tr + Tf) Housing color Black + Silver Video input signals VGA, DisplayPort, HDMI USB ports 1 upstream, 2 downstream USB standard Power requirements (nominal) 100-240 V Power consumption (nominal) 40 W (<0,5 W in stand-by) Power save mode Power management DPMS...
- Page 41 7. Important information Storage humidity 5% - 85% (non-condensing) Operation altitude 2000 m 7500 m Storage altitude Operating pressure 70 kPa - 106 kPa Storage pressure 50 kPa - 106 kPa K5903049 EONIS 25/06/2015...
