MDRC-2124

User manual

Table of Contents

Summary of Contents for Barco MDRC-2124

Page 1 MDRC-2124 User manual...
Page 4: Table Of Contents
Table of Contents Table of Contents ..................4 Preface......................5 Important notice..................5 Environmental information..............6 Safety Instructions................. 7 Recommendations for using your display system......10 Unpacking and handling tips .............. 11 Preventing fire and injury..............12 Cleaning the display................13 Shipping/storing the display ..............
Page 5: Preface
Barco software products are the property of Barco. They are distributed under copyright by Barco N.V., for use only under the specific terms of a software license agreement between Barco N.V. and the licensee.
Page 6: Environmental Information
Environmental information Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations. This equipment has required the extraction and use of natural resources for its production. It may contain hazardous substances for health and environment.
Page 7: Safety Instructions
Safety Instructions General Recommendations • Read the safety and operating instructions before operating the display. • Retain safety and operating instructions for future reference. • Adhere to all warnings on the display and in the operating instructions manual. • Follow all instructions for operation and use. Electrical shock Warning- To prevent the risk of fire or shock hazards, do not expose...
Page 8 Intended use This display is an AMLCD display designed for viewing medical X-ray images. This unit should not be used near patients and should be kept outside of 1.83 m perimeter and 2.29 m vertical. Power connection For use only with power supply SINPRO:HPU100-108 Input：100-240V~, 47-63Hz, 1.2-0.5A Power cords Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent,...
Page 9 Equipment not complying with IEC 60601 must be kept outside the patient environment, as defined in the standard as at least 1.5 meters from the patient or the patient support. Any person who connects external equipment to signal input, signal output, or other connectors has formed a system and is therefore responsible for the system to comply with the requirements of IEC 60601-1-1.
Page 10: Recommendations For Using Your Display System
You can activate a screen saver in the “Display properties” window of your workstation. Barco recommends setting screen saver activation after 5 minutes of non-usage. A good screen saver displays moving content. In case you are working with the same image or an application with...
Page 11: Unpacking And Handling Tips
To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com. 4. Enhance user comfort Every Barco multi-head display system is color matched with the highest specification in the market.
Page 12: Preventing Fire And Injury
Cosmetics and oils on the skin are both detrimental to the screen and difficult to remove. • Allow the display to warm up to room temperature before turning it on. Avoid sudden temperature changes in the environment, as this may cause condensation, which damages the display.
Page 13: Cleaning The Display
Cleaning the display Observe the following guidelines to maintain display and LCD screen. • Use a clean, lint-free, absorbent cotton cloth to clear off any residual glue from removal of the protective film or to remove surface dust. Apply light pressure to remove the dust. •...
Page 14: Explanation Of Symbols
Explanation of symbols DISPOSAL. Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services. CAUTION. Read the accompanying text carefully for proper operation and maintenance of the display system. DIRECT CURRENT ALTERNATING CURRENT RELATIVE HUMIDITY...
Page 15: Introduction

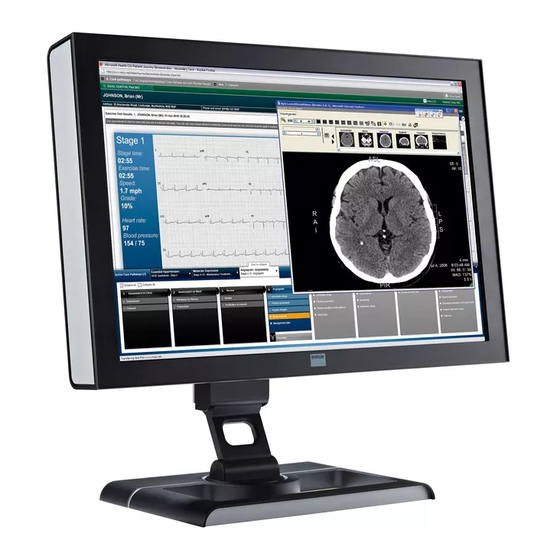

Introduction About the product Thank you for choosing Barco. The MDRC-2124 is an LCD display with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). This product also demonstrates the following outstanding features: • DVI-I and DisplayPort signal • 24” diagonal Screen •...
Page 16: Package Overview
Package overview User manual USA Power Cord EUR Power Cord China Power Cord DisplayPort Signal DVI-D Signal Cable Power Adapter Cable...
Page 17: Display Parts, Controls And Connections
Display parts, controls and connections Front View Power LED 1. Green indicates the display is turned on. 2. Orange indicates the display is in stand-by mode.
Page 18: Back View
Back View Control wheel 1. Press the control wheel for 1 sec to power off to the LCD Display. 2. Swivel the control wheel for OSD menu. DisplayPort input DVI-I input USB upstream USB downstream DC Power input Kensington Security Slot The display can be secured to your desk or any other fixed object with Kensington lock security products.
Page 19: Installation
Installation Connecting the display Use only the power adapter, power cord, and the video cables shipped with this display. To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the DC power cord to the power connector; plug one end of the AC power cord into the power adapter, and the other end into an electrical outlet.
Page 20 Note: To ensure the LCD Display will work well with your computer, please configure the display mode of your graphics card to make it less than or equal to the native resolution, and make sure the timing of the display mode is compatible with the LCD screen. We have listed the “Compatibility Modes”...
Page 21: Adjusting The Display Position
Adjusting the display position Vertical height Portrait/Landscape Left to right pan Front to back tilt Remove display from stand...
Page 22: On-Screen Display Menus
On-Screen Display menus How to use the OSD menus 1. When the display is on and the OSD in not on the screen, press the control wheel. The front illumination is switched on for about 10 seconds. 2. To display the main menu, swivel the control wheel while the illumination is on.
Page 23: Osd Menus Overview
6. To change an adjustment value or setting, swivel the control wheel to select the adjustment or setting. Next, press the control wheel to go into edit mode. This is indicated by the trackbar turning dashed. Swivel the control wheel to change the value.
Page 24: Adjustments Menu
Adjustments menu Name Description Luminance Allows to manually adjust the luminance target if you’d experience the overall image is too dark or too bright. When you change this setting, the display will adjust its backlight to reach its target. Gamma Jumps to the gamma submenu (see below).
Page 25 Name Description Gamma 1.8 Select one of these gamma options in case Gamma 2.2 the display replaces a CRT display with a gamma of 1.8 or 2.2 respectively. sRGB Select this gamma option for viewing images intended for the internet. QAWeb Select this option if you wish to use the gamma settings defined in QAWeb Agent.
Page 26 User submenu Name Description Allows to manually adjust the image red level target. Green Allows to manually adjust the image green level target. Blue Allows to manually adjust the image blue level target. Analog submenu Name Description Auto Adjust Select this setting if you wish the display to automatically adjust the geometric and level settings of the DVI analog image.
Page 27 Barco recommends to switch DPMS on and to use a good Windows screensaver to prevent image burn-in (image retention) on the LCD panel.
Page 28 Name Description Allows to switch the power LED’s on state on/off. The LED’s orange DPMS state is not influenced by this setting. So, when the display goes into power saving mode, the LED will turn orange, even if it was switched off by this setting.
Page 29: Information Menu
Information menu Name Description Display Name Indicates the display type. FW Version Indicates the current internal firmware version. Serial Nr Indicates the display serial number. Backlight Indicates the total time the display has been Runtime operating, excluding the time in stand-by. System Hours Indicates the total time the display has been operating, including the time in stand-by.
Page 30: Appendix
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following troubleshooting. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. • Check that all the I/O and power connectors are correctly and well connected as described in the “Installation”...
Page 31: Warning Signal
Problem: Image is scrolling • Check and make sure the video signal cable (or adapter) is well connected. • Check and reconfigure the display mode of the vertical refresh rate of your graphics card to make it compatible with the LCD Display.
Page 32: Product Dimensions
Product dimensions...
Page 33: Technical Specifications
Technical specifications LCD Panel Technology TFT Color LCD (E-IPS) Native resolution 1920x1200 Active screen diagonal 24.1" (611 mm) Active screen area 518 x 324 mm Pixel Pitch 0.270 x 0.270 mm Visual Characteristic Maximum luminance 400 cd/m2 DICOM calibrated luminance 250 cd/m2 Image stabilization BLOS (Backlight sensor)
Page 34: Mechanical Characteristics
English, French, German, Spanish, Italian, OSD languages Dutch, Simplified Chinese, Traditional Chinese, Korean, Japanese. Options Protective Cover Touch Screen Landscape/Portrait Approvals EN 60601-1-2; FCC-B; ICES-001, VCCI, KCC, CCC, BSMI CE EN60601-1; UL 60601-1, c-UL, CCC, KCC, Safety BSMI Mechanical characteristics Display dimensions (W x H x D) 579 x 382 x 106 mm Landscape, w/o pedestal...
Page 35: Compatibility Modes
Compatibility modes Standard Resolution Vertical Horizontal Refresh Scan (kHz) (Hz) IBM VGA 640x480 31.5 VESA VGA 800x600 37.9 VESA XGA 1024x768 48.4 VESA XGA 1152x870 54.36 VESA SXGA 1280x1024 63.96 UXGA 1600x1200 1920x1080 70.2 1920x1200 74.1...
Page 36: Regulatory Compliance
(EMC) laws. Barco NV has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. We offer state-of-the-art color displays that are compliant...
Page 37 CE mark according to Annex XII of the directive, with no notified body annotation. In the opinion of Barco NV registration required to put this device into commerce is the responsibility of the medical device/system manufacturer, and Barco supports this requirement by providing a European Commission (EC) declaration of conformity.
Page 38 EU EMC Directive 89/336/EEC EU Electromagnetic Compatibility Directive EN 60601-1-2 (2001) Collateral standard electromagnetic Medical Electrical Equipment compatibility requirements EN 55011 (Class B) Limits and methods of measurements for radio interference characteristics of industrial, scientific, and medical equipment IEC 61000-3-2 Harmonic emissions IEC 61000-3-3 Voltage fluctuations/flicker...
Page 39 IEC 61000-4-6 Conducted immunity IEC 61000-4-8 Magnetic field immunity Conformance to the Medical Device Directive 93/42/EEC EN 60601-1 Medical Part 1 General requirements for safety Electrical Equipment. U.S. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may...
Page 40 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technical for help. CAUTION: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 41 Any claim under the Warranties must be notified to Barco in writing within 8 days from the date the defect or failure has been discovered or noticed the first time. The Customer, upon the occurrence of...
Page 42 Any host configuration not explicitly supported by Barco nv, MID. All software installed on the system, whether they are acquired from Barco nv, MID or third party. An exception is made for software delivered by Barco nv, MID that would prove to be a cause for the...
Page 43 (4): ‘Factory Calibrated Luminance’: is the typical luminance value that a specific diagnostic display model is calibrated at during the production process. This figure is printed on the Warranty certificate of each display or can be requested at your local Barco office. c. Lamps, optical components in projectors d.
Page 44 If there is an indication that the equipment was used – even temporary – outside its specifications, Barco nv, MID is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco nv, MID in this respect, may be invoiced to the Customer at normal pricing.
Page 45 NEGLIGENCE, STRICT TORT, WARRANTY OR OTHERWISE, SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT OR ANY PART THEREOF WHICH SHALL BE AT CUSTOMER'S SOLE OPTION AND COST. BARCO’S LIABILITY SHALL NOT EXCEED THE PRICE OF THE ITEM OR ITEMS OF GOODS OR SERVICES UPON WHICH SUCH LIABILITY IS BASED.
Page 48 B410640-02 November 2010 Barco nv Medical Imaging President Kennedypark 35 B-8500 Kortrijk, Belgium www.barco.com...
