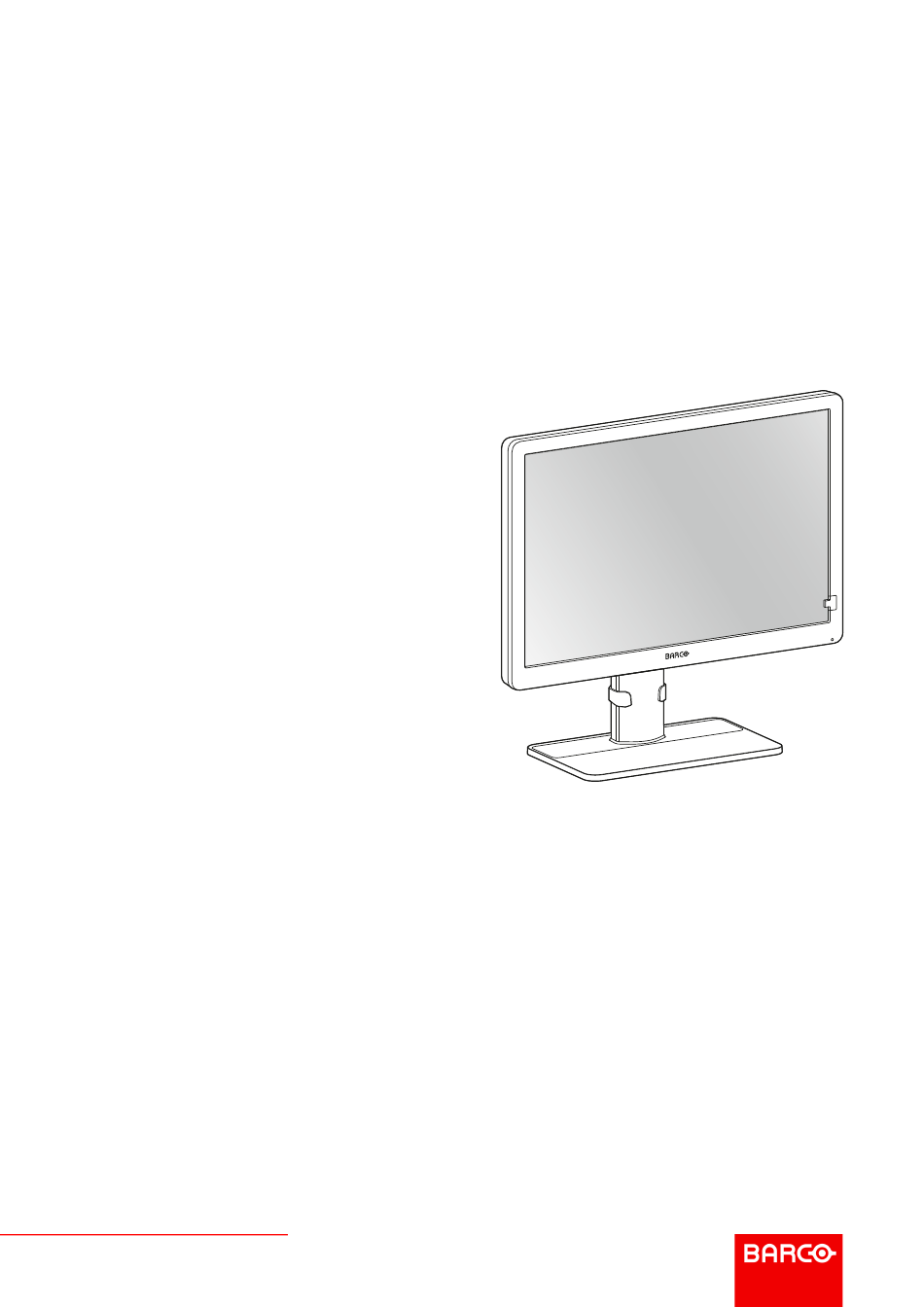

- Page 1 Eonis 24-inch clinical display User guide MDRC-2324 (option HPEW) MDRC-2324 (option HTEW) MDRC-2324 (option HNEW) MDRC-2324 (option HTIB) MDRC-2324 (option HNIB) MDRC-2324 (option STIB) MDRC-2324 (option SNIB) ENABLING BRIGHT OUTCOMES...
- Page 2 Registered office: FIMI S.r.l. Via Vittor Pisani 6, 20124 Milano, Italy www.barco.com/en/support www.barco.com Factory: FIMI S.r.l. Via Saul Banfi 1, 21047 Saronno, Italy...
-
Page 3: Table Of Contents
Table of contents 1 Welcome! ..........................................5 What's in the box....................................6 Product overview....................................6 2 Installation ..........................................9 Cable connections....................................10 Display position adjustment ................................ 11 VESA-mount installation................................11 3 Operation ..........................................13 Recommendations for daily operation ..........................14 Standby switching.....................................14 OSD menu use....................................14 Power status LED.....................................15 Control wheel locking/unlocking...............................15 Input source selection ..................................15 Luminance adjustment...................................16... - Page 4 R5910550 /00 Eonis...
-
Page 5: Welcome
Welcome! Introduction The MDRC-2324 is a 24” two megapixel color LCD display intended for review of medical images with a resolution of WUXGA (1920*1200) and an aspect ratio of 16:10. There are 7 different versions of the MDRC-2324: Display version Brightness Power supply Housing color... -
Page 6: What's In The Box
Welcome! 1.1 What's in the box Overview • MDRC-2324 display • USB cable • DisplayPort video cable • AC power cord(s) (depending on the region of operation) • External power supply, for MDRC-2324 (option HNEW, HTEW and HPEW) only • English user guide on paper •... - Page 7 Welcome! to decrease values in the OSD menu Front sensor Power status LED • Off: Display not powered, or display is on but power LED function is disabled in OSD (see “Power status LED”, page 15) • Steady green: Display operational •...
- Page 8 Welcome! R5910550 /00 Eonis...
-
Page 9: Installation
Installation WARNING: Read all the important safety information before installing and operating your monitor. Please refer to the dedicated chapter in this user guide. WARNING: Sufficient expertise is required to install this equipment. All devices and complete setup must be tested before taking into operation. CAUTION: When the display is assembled in the medical system, take care of the fixation of all cables, to avoid unwanted detachment. -
Page 10: Cable Connections
Installation 2.1 Cable connections To connect the cables Connect one or more video source(s) to the corresponding video inputs. Use the appropriate video cable (s) to do this. The input source to be displayed can be selected in the OSD menu (see “Input source selection”, page 15). Image 2-1 Connect the USB upstream connector to a PC USB host to make use of QAWeb or any of the display USB downstream connectors (e.g. -
Page 11: Display Position Adjustment
Installation Image 2-4 If necessary for your application, earth the MDRC-2324 by connecting the earth pin to a grounded outlet by means of a yellow/green AWG18 wire (maximum admitted cable length according to national regulation requirements). Image 2-5 Route all cables through the provided cable routing clip at the back of the display stand. 2.2 Display position adjustment To adjust the display position You can safely tilt, pivot, raise and lower the display as desired. - Page 12 Installation Image 2-6 R5910550 /00 Eonis...
-
Page 13: Operation
Operation R5910550 /00 Eonis... -
Page 14: Recommendations For Daily Operation
To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white papers available at www.barco.com/healthcare. -
Page 15: Power Status Led
Operation To navigate the OSD menu • Turn the control wheel (counter) clockwise to scroll through the different menu pages, to change values or to make selections. • Push the control wheel to go into a submenu or confirm adjustments and selections. 3.4 Power status LED Overview The power status of the display is indicated by a LED at the front of the display. -
Page 16: Luminance Adjustment
Operation Select one of the available input sources and confirm. 3.7 Luminance adjustment To adjust the luminance Bring up the OSD main menu. Navigate to the Adjustments > Luminance menu. Set a luminance value as desired and confirm. 3.8 sRGB color space About sRGB color space The sRGB color space combines a display function and white point selection and is designed to match typical home and office viewing conditions. -
Page 17: White Point Selection
DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. -
Page 18: Analog Video Settings
Operation 3.12 Analog video settings The following settings are only available when an analog video input source (DVI-A) is selected. About analog video settings When the analog video input source is active, a number of analog video settings becomes available: •... -
Page 19: Osd Menu Orientation
Operation 3.15 OSD menu orientation About the OSD menu orientation The orientation of the OSD menu can be changed depending on the orientation of your display (landscape or portrait). To change the orientation of the OSD menu Bring up the OSD main menu. Navigate to the Adjustments >... - Page 20 Operation R5910550 /00 Eonis...
-
Page 21: Maintenance
Maintenance R5910550 /00 Eonis... -
Page 22: Scheduled Maintenance
The MDRC-2324 does not require any scheduled maintenance or calibration activities. We recommend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display, or to return the display to a Barco approved maintenance organization. In any case of doubts, please contact Barco Healthcare. -
Page 23: Important Information
Important information R5910550 /00 Eonis... -
Page 24: Safety Information
Important information 5.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. - Page 25 Important information Power connection – Equipment with external 12 VDC power supply • Power requirements: The equipment must be powered using the delivered medical approved 12 VDC ( ) power supply. • The medical approved DC ( ) power supply must be powered by the AC mains voltage. •...
-
Page 26: Environmental Information
Important information Ventilation Do not cover or block any ventilation openings in the cover of the set. When installing the device in a cupboard or another enclosed location, heed the necessary space between the set and the sides of the cupboard. Installation Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. - Page 27 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
-
Page 28: Biological Hazard And Returns
Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland. -
Page 29: Emc Notice
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules. - Page 30 Important information WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the MDRC- 2324, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
- Page 31 Important information Electromagnetic Immunity test Compliance level IEC 60601 test levels environment – guidance commercial or hospital Line to ground: ± 0.5 kV, ± Line to ground: ± 0.5 kV, ± environment 1 kV, ± 2 kV 1 kV, ± 2 kV Voltage dips, short 0% residual voltage for 0.5 0% residual voltage for 0.5...
-
Page 32: Explanation Of Symbols
Important information Test Immunity Maximum Distance frequency Band (MHz) test level (V/ Service Modulation power (W) (MHz) 2450 2400 – 2570 Bluetooth, Pulse WLAN, modulation 802.11 b/g/n, 217 Hz RFID 2450, LTE Band 7 5240 5100 – 5800 W LAN Pulse 802.11 a/n modulation... - Page 33 Important information Caution: Federal law (United Stated of America) restricts this device to sale by or on the order of a licensed healthcare practitioner. Indicates the device is approved according to the INMETRO regulations Indicates the USB connectors on the device Indicates the DisplayPort connectors on the device Indicates the legal manufacturer Indicates the manufacturing date...
-
Page 34: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 35: Technical Specifications
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco. © 2019 Barco NV all rights reserved. - Page 36 Important information Ratings marked on the medical power supply: • Input rating: 100–240 VAC, 1.6–0.7 A, 50/60 Hz • Output rating: 12 VDC, 2.3 A Power consumption Standard brightness versions (MDRC-23234 option Sxxx): 20 W High brightness versions (MDRC-2324 option Hxxx): 25 W <...
- Page 37 Important information IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14 EMI specific: IEC 60601-1-2: 2014 (ed.4) EN 60601-1-2:2015 (ed.4) FCC part 15 Class B ICES-003 Level B VCCI (Japan) Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive...
- Page 38 FIMI S.r.l. Vittor Pisani 6 20124 Milano Italy R5910550 /00 | 2019-02-13 Registered office: FIMI S.r.l. | Via Vittor Pisani 6, 20124 Milano, Italy Factory: FIMI S.r.l. | Via Saul Banfi 1, 21047 Saronno, Italy www.barco.com...
