Barco Eonis MDRC-2222 WP User Manual

Barco Eonis MDRC-2222 WP User Manual

22-inch clinical display
Hide thumbs Also See for Eonis MDRC-2222 WP:
Table of Contents

Advertisement

Quick Links

Download this manual

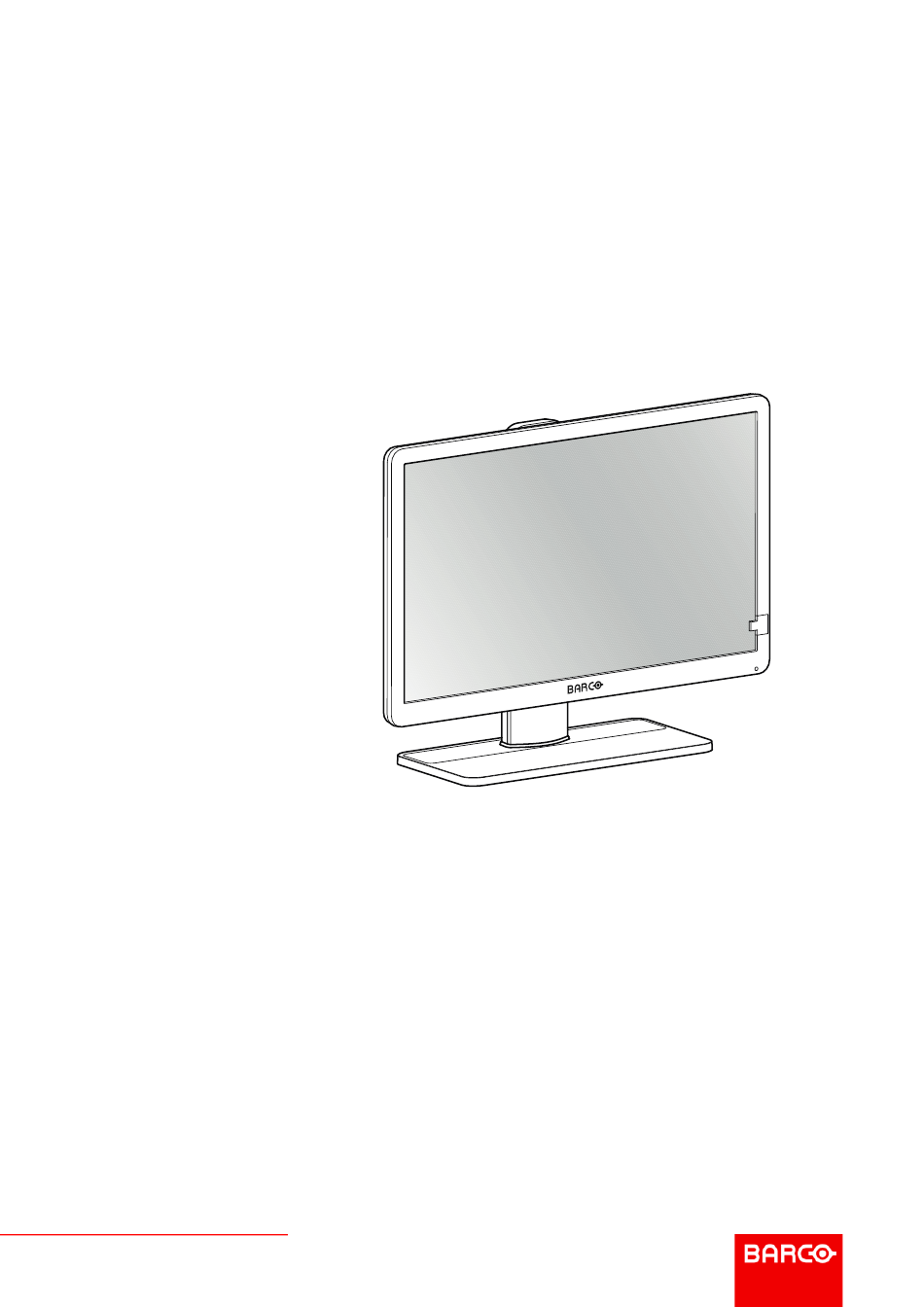

Eonis
22-inch clinical display
User Guide
MDRC-2222 (option WP)
MDRC-2222 (option WH)
MDRC-2222 (option TS)
MDRC-2222 (option BL)
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eonis MDRC-2222 WP and is the answer not in the manual?

Questions and answers

Related Manuals for Barco Eonis MDRC-2222 WP

Summary of Contents for Barco Eonis MDRC-2222 WP

  • Page 1 Eonis 22-inch clinical display User Guide MDRC-2222 (option WP) MDRC-2222 (option WH) MDRC-2222 (option TS) MDRC-2222 (option BL) ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...

  • Page 3: Table Of Contents

    Table of contents 1 Welcome!.......................................... 5 What's in the box ....................................6 Product overview....................................6 2 Installation ........................................11 Cable connections..................................12 Display position adjustment ..............................13 VESA-mount installation ................................14 3 Operation........................................17 Recommendations for daily operation ..........................18 Standby switching...................................18 OSD menu use....................................18 Power status LED ...................................19 Control wheel locking/unlocking .............................19 Input source selection ..................................19 Luminance adjustment.................................20...
  • Page 4 Explanation of symbols................................36 Legal disclaimer....................................39 Technical specifications................................40 K5902146 (451920612625) /04 Eonis...

  • Page 5: Welcome

    Welcome! Introduction Thank you for choosing this Eonis (MDRC-2222) display! The 2 megapixel clinical display is built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance. The display comes in 4 versions: •...

  • Page 6: What's In The Box

    1x system disc, containing QAWeb software and translations of the User Guide • Mains cables The user guides are also available on www.barco.com/support Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. 1.2 Product overview Front Image 1–1...
  • Page 7 Welcome! Image 1–3 1. Display stand 2. Control wheel Push long (5 sec): ◦ to put display in standby mode Push short: ◦ to exit standby mode ◦ to active the OSD menu ◦ to confirm selections in the OSD menu Turn clockwise ◦...
  • Page 8 Welcome! Back Image 1–4 Image 1–5 K5902146 (451920612625) /04 Eonis...
  • Page 9 Welcome! Image 1–6 1. Kensington security slot 2. USB-B 2.0 upstream connector 3. USB-A 2.0 downstream connectors (2x) 4. DisplayPort video input 5. Earth pin 6. DVI-I video input 7. 100 - 240 VAC mains power input (IEC C14) 8. Height-adjustable cable routing clip 9.
  • Page 10 Welcome! K5902146 (451920612625) /04 Eonis...

  • Page 11: Installation

    Installation WARNING: Read all the important safety information before installing and operating your monitor. Please refer to the dedicated chapter in this user guide. WARNING: Sufficient expertise is required to install this equipment. All devices and complete setup must be tested before taking into operation. CAUTION: When the display is assembled in the medical system, take care of the fixation of all cables, to avoid unwanted detachment.

  • Page 12: Cable Connections

    Installation 2.1 Cable connections To connect the cables Connect one or more video source(s) to the corresponding video inputs. Use the appropriate video cable (s) to do this. The input source to be displayed can be selected in the OSD menus (see “Input source selection”, page 19).

  • Page 13: Display Position Adjustment

    Installation Route all cables through the provided cable routing clip at the back of the display stand. 2.2 Display position adjustment To adjust the display position You can safely tilt, pivot, raise and lower the display as desired. Image 2–5 Image 2–6 K5902146 (451920612625) /04 Eonis...

  • Page 14: Vesa-Mount Installation

    Installation Image 2–7 WARNING: The display must be in its highest position before it can be properly pivoted. The standard orientation of the video input is landscape. If you use the display in portrait mode, make sure you change the orientation of the video input via the screen settings of the computer. 2.3 VESA-mount installation To mount the display on a VESA arm The display panel, standard attached to the stand, is compatible with the VESA 100 mm standard.
  • Page 15 Installation Image 2–8 Image 2–9 Image 2–10 2. Use 4 M4 screws to attach the panel to a VESA approved arm. Please respect the following rule to select an appropriate screw length: = T + W + 8 mm = T + W + 14 mm K5902146 (451920612625) /04 Eonis...
  • Page 16 Installation Image 2–11 K5902146 (451920612625) /04 Eonis...

  • Page 17: Operation

    Operation K5902146 (451920612625) /04 Eonis...

  • Page 18: Recommendations For Daily Operation

    To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white papers available at www.barco.com/healthcare.

  • Page 19: Power Status Led

    Operation To navigate the OSD menu • Turn the control wheel (counter) clockwise to scroll through the different menu pages, to change values or to make selections. • Push the control wheel to go into a submenu or confirm adjustments and selections. 3.4 Power status LED Overview The power status of the display is indicated by a LED at the front of the display.

  • Page 20: Luminance Adjustment

    Operation 3.7 Luminance adjustment To adjust the luminance 1. Bring up the OSD main menu. 2. Navigate to the Adjustments > Luminance menu. 3. Set a luminance value as desired and confirm. 3.8 sRGB color space About sRGB color space The sRGB color space combines a display function and white point selection and is designed to match typical home and office viewing conditions.

  • Page 21: White Point Selection

    DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications.

  • Page 22: Power Save Mode

    Operation • Geometry: Allows to manually adjust the geometry settings of the analog video (clock frequency, clock phase, horizontal position, vertical position) • Level: Allows to manually adjust the contrast and brightness levels of the analog video To adjust the analog video settings Bring up the OSD main menu.

  • Page 23: Factory Reset

    Operation 3.16 Factory reset About factory reset A factory reset allows you to fully restore the display to its original factory setting. To perform a factory reset Bring up the OSD main menu. Navigate to the Adjustments > Settings menu. Enter the Factory Reset submenu.
  • Page 24 Operation K5902146 (451920612625) /04 Eonis...

  • Page 25: Maintenance

    Maintenance K5902146 (451920612625) /04 Eonis...

  • Page 26: Scheduled Maintenance

    The MDRC-2222 does not require any scheduled maintenance or calibration activities. We recommend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display, or to return the display to a Barco approved maintenance organization. In any case of doubts, please contact Barco Healthcare.

  • Page 27: Important Information

    Important information K5902146 (451920612625) /04 Eonis...

  • Page 28: Safety Information

    Important information 5.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover.
  • Page 29 Important information Use of electrical surgical knives Provide as much distance as possible between the electrosurgical generator and other electronic equipment (such as monitors). An activated electrosurgical generator may cause interference with them and can disrupt the functionality of the display. Power connection –...

  • Page 30: Environmental Information

    Important information Installation • Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you use an unstable cart or stand, the device may fall, causing serious injury to a child or adult, and serious damage to the device.
  • Page 31 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 32: Biological Hazard And Returns

    Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.

  • Page 33: Regulatory Information

    The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules.

  • Page 34: Emc Notice

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC responsible: Barco Inc., 3059 Premiere Parkway Suite 400, 30097 Duluth GA, United States, Tel: +1 678 475 8000...
  • Page 35 Important information harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Interference can be determined by turning the equipment off and on. If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding equipment, the user is encouraged to try to correct the interference by one or more of the following measures: •...
  • Page 36 Important information Immunity to RF wireless communications equipment Test Immunity Maximum Distance frequency Band (MHz) test level (V/ Service Modulation power (W) (MHz) 380 – 390 TETRA 400 Pulse modulation 18 Hz 430 – 470 GMRS 460, FM ± 5 kHz FRS 460 deviation 1 kHz sine...
  • Page 37 Important information MEDICAL – GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI AS60601-1:2005/(R)2012, CSA CAN/CSA-C22.2 E346057 NO. 60601-1:14 Indicates the device is approved according to the UL regulations for Canada and US. E346057 Indicates the device is approved according to the UL Demko regulations.
  • Page 38 Important information Indicates the DisplayPort connectors on the device. Indicates the legal manufacturer. Indicates the manufacturing date. Indicates the temperature limitations for the device to safely operate within specs. Indicates this is a Medical Device. Indicates the device serial number. Indicates the device part number or catalogue number.
  • Page 39 Important information Equipotentiality Protective earth (ground) Symbols on the box On the box of the device, you may find the following symbols (nonrestrictive list): Indicates a device that can be broken or damaged if not handled carefully when being stored. Indicates a device that needs to be protected from moisture when being stored.
  • Page 40 Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 41 Important information Power rating 100-240 Vac, 50-60 Hz, 0.6-0.4 A Power consumption 20 W (nominal) < 0.5 W (hibernate) < 0.5 W (standby) Dimensions with stand (W x Portrait: 337 x 525~602 x 201 mm H x D) Landscape: 514 x 388~498 x 201 mm Dimensions w/o stand (W x Portrait: 315 x 514 x 67 mm H x D)
  • Page 42 Important information Supplied accessories 1x DisplayPort video cable 1x USB cable 1x printed User Guide (English) 1x system disc, containing MediCal QAWeb software and translations of the User Guide Mains cables QA software MediCal QAWeb Warranty 3 years Operating temperature 0 °C to 40 °C Storage temperature -20 °C to 60 °C...
  • Page 44 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902146 (451920612625) /04 | 2020-11-18 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
