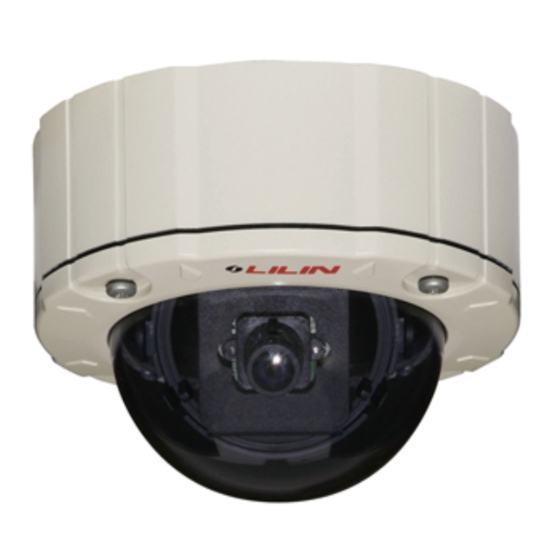

VANDAL RESISTANT CAMERA
PIH-2222/2226/2242/2246
VANDAL RESISTANT VARI-FOCAL CAMERA
PIH-2322X/2326X/2342X/2346X
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIH-2222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin PIH-2222

  • Page 1 VANDAL RESISTANT CAMERA PIH-2222/2226/2242/2246 VANDAL RESISTANT VARI-FOCAL CAMERA PIH-2322X/2326X/2342X/2346X INSTRUCTION MANUAL...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3: Installation

    PART DESCRIPTION & DIMENSION 136.0 55.0 99.5 Unit mm HOLE PLUG BASE SIDE HOLE DOME COVER INSTALLATION 1. Please use the enclosed screw driver to untighten the 4 tamper-proof screws on the dome cover. 2. Put the provided screws (M3.0 x 25, wooden screw) through the holes marked as "a", and fix the base in the desired area (FIG.1).
  • Page 4 3. Firstly, put video cable and power cable through a pipe with 1/2" PT at one end (FIG.2), and connect the cables to the terminal block on the PCB accordingly and then screw the pipe to the side hole (FIG.3, please make sure the connection between the pipe and the side hole is watertight.).
  • Page 5 FIG. 1 FIG. 2 FIG. 3...
  • Page 6 BRACKET TILT AZIMUTH FIG. 4 (PIH-222 / 224 ) IRIS LEVER VR SCREW DRIVER TILT BRACKET AZIMUTH ZOOM ADJUSTMENT FOCUS ADJUSTMENT FIG. 5 (PIH-232 X / 234 X)
  • Page 7 FIG. 6 FIG. 7...
  • Page 8 Alternative cabling positions 1. Untighten the hole plug on the bottom of the base and screw it to the side hole. 2. Put the video cable and power cable through the bottom hole and connect them to the terminal block on the PCB accordingly.
  • Page 9: Specifications

    SPECIFICATIONS VANDAL RESISTANT COLOR DOME CAMERA PIH-2222 3.6 PIH-2222 6 PIH-2242 3.6 PIH-2242 6 Model No. Focal Length 3.6mm 6.0mm 3.6mm 6.0mm F2.0 F1.8 F2.0 F1.8 Iris 44.5 44.5 Lens Angle of view 54.5 33.1 54.5 33.1 Power Input Voltage...
  • Page 10 VANDAL RESISTANT DUAL VOLTAGE COLOR DOME CAMERA PIH-2226 3.6 PIH-2226 6 PIH-2246 3.6 PIH-2246 6 Model No. Focal Length 3.6mm 6.0mm 3.6mm 6.0mm F2.0 F1.8 F2.0 F1.8 Iris 44.5 44.5 Lens Angle of view 54.5 33.1 54.5 33.1 Power Input Voltage DC12V ( 10%) or AC24V ( System NTSC or PAL...
  • Page 11 VANDAL RESISTANT VARI-FOCAL COLOR DOME CAMERA Model No. PIH-2322X N/P PIH-2326X N/P PIH-2342X N/P PIH-2346X N/P Focal Length 3 ~ 9mm F1.4 Iris 90.2 ~ 31.8 Lens Angle of view 66.3 ~ 23.9 115.3 ~ 39.7 DC12V( 10%) DC12V( 10%) Power Input Voltage DC12V( 10%) AC24V( 10%) DC12V( 10%)
  • Page 12 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-222CSE...
