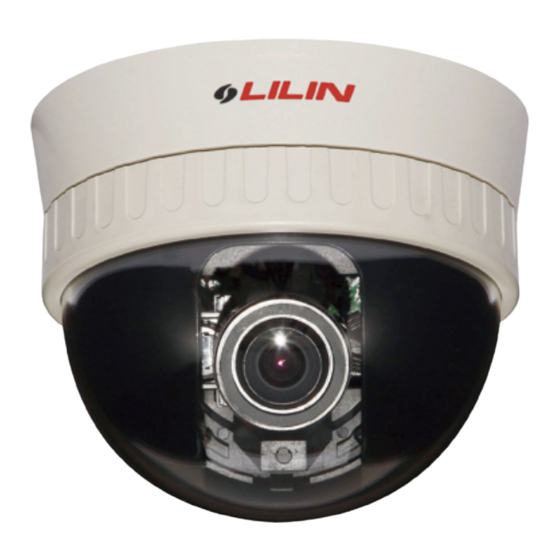

Lilin PIH-2622 Instruction Manual

Lilin PIH-2622 Instruction Manual

Color/ color varo-focal

Advertisement

Quick Links

COLOR DOME CAMERA
PIH-2622/2642
COLOR VARI-FOCAL DOME CAMERA
PIH-2622X/2642X
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIH-2622 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin PIH-2622

  • Page 1 COLOR DOME CAMERA PIH-2622/2642 COLOR VARI-FOCAL DOME CAMERA PIH-2622X/2642X INSTRUCTION MANUAL...
  • Page 2 IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 PART DESCRIPTION & DIMENSION Unit mm VIDEO OUTPUT JACK DC POWER INPUT (DC12V 10%) JACK BASE FIX RING INSIDE COVER DOME COVER LENS...
  • Page 4: Installation

    Pan/Tilt brackets and rotatable round bracket for Azimuth. The lens can be adjusted easily by hand without using screw driver. Please refer to FIG.2 (PIH-2622/2642) and FIG.3 (PIH-2622X/2642X). 3. An extra RCA jack for easy installation. Plug the video input of monitor to the RCA jack and adjust focus and zoom.
  • Page 5 FIG. 1 BRACKET TILT AZIMUTH FIG. 2 (PIH-2622/2642)
  • Page 6 IRIS LEVER VR SCREW DRIVER TILT BRACKET AZIMUTH ZOOM ADJUSTMENT FOCUS ADJUSTMENT FIG. 3 (PIH-2622X/2642X) FIG. 4...
  • Page 7 NOTE Point each "b" to each "c". FIG. 5...
  • Page 8: Specifications

    SPECIFICATIONS COLOR DOME CAMERA Model No. PIH-2622 3.6 PIH-2622 6 PIH-2642 3.6 PIH-2642 6 Focal Length 3.6mm 6.0mm 3.6mm 6.0mm F2.0 F1.8 F2.0 F1.8 Iris 44.5 44.5 Lens Angle of view 54.5 33.1 54.5 33.1 Power Input Voltage DC12V ( 10%)
  • Page 9 COLOR VARI-FOCAL DOME CAMERA Model No. PIH-2622X PIH-2642X Focal Length 3 ~ 9mm Iris F1.4 90.2 ~ 31.8 Lens Angle of view 66.3 ~ 23.9 115.3 ~ 39.7 Power Input Voltage DC12V ( 10%) System NTSC or PAL Sync. Mode Internal Pick Up Element 1/3"...
  • Page 10 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-2622CSE...

This manual is also suitable for:

Pih-2622xPih-2642xPih-2642
