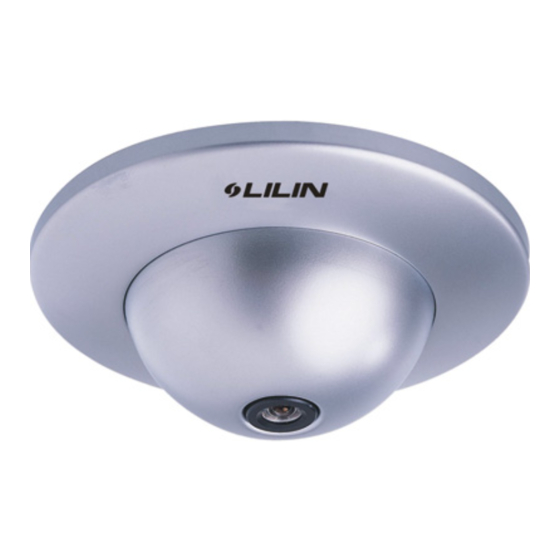

Lilin PIH-2522 Instruction Manual

Lilin PIH-2522 Instruction Manual

Advertisement

COLOR DOME CAMERA
PIH-2522/2542
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-2522 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilin PIH-2522

  • Page 1 COLOR DOME CAMERA PIH-2522/2542 INSTRUCTION MANUAL...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 PART DESCRIPTION & DIMENSIONS DC POWER INPUT VIDEO OUTPUT HOLDER LENS COVER 62.5 98.0mm HOLER DIMENSION...
  • Page 4 INSTALLATION FIG.1 (up) 62.5 FIG.2 COVER 1. Make sure the image will not appear upside down. 2. Screw 3 points of "a" to mount the holder. 3. Point each "c" to each "b", turn counterclockwise and mount the cover.
  • Page 5: Specifications

    SPECIFICATIONS COLOR DOME CAMERA Model No. PIH-2522 3.6 PIH-2522 6 PIH-2542 3.6 PIH-2542 6 Focal Length 3.6mm 6.0mm 3.6mm 6.0mm F2.0 F1.8 F2.0 F1.8 Iris 44.5 44.5 Lens Angle of view 54.5 33.1 54.5 33.1 DC12V ( 10%) Power Input Voltage...
  • Page 6 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-2522CSE...

This manual is also suitable for:

Pih-2542
