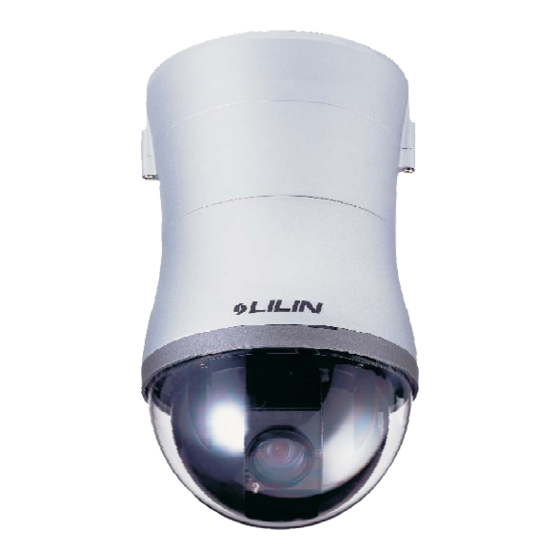

Lilin PIH-7635DH Series Instruction Manual

Lilin PIH-7635DH Series Instruction Manual

Super hi-res. fast dome camera
Table of Contents

Advertisement

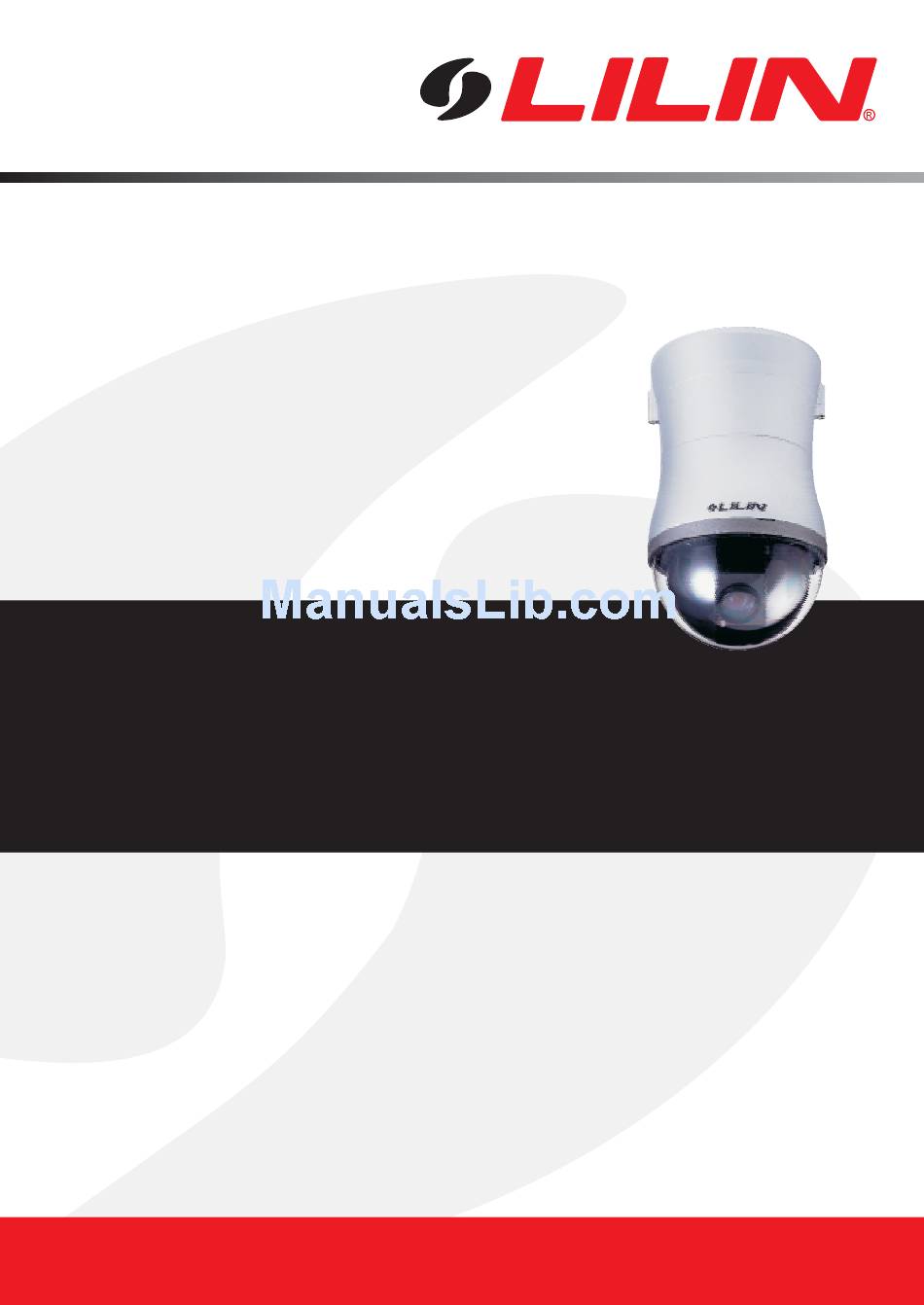

SUPER HI-RES. FAST DOME CAMERA
PIH-7622/7622DH/7635DH Series
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-7635DH Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilin PIH-7635DH Series

  • Page 1 SUPER HI-RES. FAST DOME CAMERA PIH-7622/7622DH/7635DH Series INSTRUCTION MANUAL...
  • Page 2: Table Of Contents

    CONTENTS Pages Preface Features Warnings & Cautions Structural Element Fast Dome Camera Set Up Alarm Out Mode Switch Setting RS-485 Protocol Switch Setting Fast Dome ID Address Setting Refer Chart Fast Dome Connection Jack and Cable Requirement Installation Indoor Installation Structural Drawing Embedded Mounting (False Ceiling) Attached Mounting (Fixed Ceiling) Wall Mounting (Fixed Bracket)
  • Page 3 Zoom Minimum Setting Zoom Maximum Setting Zoom Speed Setting Focus Speed Setting Auto Iris Setting Advanced Setting Exposure Mode Setting Backlight Compensation Setting Flicker Less White Balance Setting IR Cut Filter Setting (PIH-7622DH/7635DH) Synchronization Mode Setting Auto Gain Control Setting Image Setting Gamma Setting Pedestal Setting...
  • Page 4: Preface

    RS-485 control interface makes our fast dome cameras easy to fit into our exist systems and compatible with other manufacturer's control systems. LILIN's Fast Dome series are fully-functional and user-friendly. It will meet your need for a wide range of surveillance applications.
  • Page 5: Features

    FEATURES 22X Auto Focus Lens (PIH-7622/7622DH) Build-in 22X optical zoom lens with focal length 3.9~85.8mm 35X Auto Focus Lens (PIH-7635DH) Build-in 35X optical zoom lens with focal length 3.6~126mm 520 Horizontal TV lines Automatic / Manual Iris Control Preset ID / Name Preset Background Environment File Private Mask 360 continuous rotation...
  • Page 6: Warnings & Cautions

    WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.
  • Page 7: Structural Element

    STRUCTURAL ELEMENT Dome Cover Power In Jack (AC24V) Camera Case RS-485 In/Out Terminal Bottom Chassis Video Out Jack Power In Jack (AC100 ~ 240V) Alarm In/Out connector...
  • Page 8: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting Camera ID Switch RS-485 Protocol Switch Alarm Out Mode Switch Alarm Out Mode Switch Setting Alarm Out Mode can be set as NC (normally close) or NO (normally open) RS-485 Protocol Switch Setting Explanation of DIP Switch Setting : : RS-485 IN Terminal Resistor ON/OFF 1.
  • Page 9 MLP2 (MERIT LILIN PROTOCOL 2) VERSION MLP1 (MERIT LILIN PROTOCOL 1) VERSION Remark: LILIN MLP1 (MERIT LILIN PROTOCOL 1) is same as PIH-717 Fast Dome Protocol MLP2 (MERITLILIN PROTOCOL 2) is the new protocol for controlling fast dome cameras. The protocol contains 7 bytes which include a check- sum byte and extra control codes.
  • Page 10: Fast Dome Id Address Setting Refer Chart

    Up to 64 Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located at the base of the Fast Dome. When select MLP1 (MERIT LILIN PROTOCOL 1), Camera ID setting as followings: 1 2 3 4 5...
  • Page 11 When select MLP2 (MERIT LILIN PROTOCOL 2), Camera ID setting as followings:...
  • Page 13 8 9 0 8 9 0 8 9 0 8 9 0...
  • Page 14: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement AC100~240V Power Cable AC24V Power Cable RS-485 Twisted Pair Cable To Keyboard or Matrix . ..etc. Video Out BNC Jack To Monitor Alarm In/Out Jack To PIR 1. AC100 ~ 240V Power Cable 2.
  • Page 15 b. Prepare the individual conductors for clamping. After clamping the contacts, push them into the proper holes in the accessory connector of this camera until they snap in place. Contact CAUTIONS : CONNECT THIS TO 24V AC CLASS 2 POWER SUPPLY ONLY. 3.
  • Page 16: Installation

    INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting...
  • Page 17: Embedded Mounting (False Ceiling)

    Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation l Drill a 3/32" (2.4mm) hole at the center of l Use a pencil and a compasses to mark a the chosen area. circle 6.7" (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring l Attach the ring to ceiling l Tighten the three tapping...
  • Page 18 Step 4 Attach the Camera Body and Base l Attach camera body to base l Turn camera body l Tighten the two Notice: position connector counter clockwise screws to fix the is correct or not. to tight position camera body Step 5 The Fix Ring l Put on the three L l Attach fix ring...
  • Page 19 l Put on decoration l Turn the ring clockwise ring to tight position Step 8 Install The Dome Cover l Attach dome cover l Turn the dome cover to camera body clockwise to tight position Note : After dome cover is attached, use glass-cleaning cloth to clean dome cover. Unclean dome cover may affect camera performance.
  • Page 20: Attached Mounting (Fixed Ceiling)

    Attached Mounting (Fixed Ceiling) Step 1 Fix The Base l Turn the dome cover l Separate the dome l Untighten the two l Turn the camera counter clockwise cover from camera screws from base cover clockwise l Separate the camera l Set all of control cable on middle l Attach base to ceiling body to the base...
  • Page 21 Step 3 Attach the Camera Body and Base l Attach camera body to base l Turn camera body l Tighten the two Notice: position connector counter clockwise screws to fix the is correct or not. to tight position camera body Step 4 Connection TXDI+ TXDI -...
  • Page 22: Wall Mounting (Fixed Bracket)

    Wall Mounting (Fixed Bracket) Step 1 Fix The Bracket l Fix bracket first, l Turn the dome cover l Separate the dome l Untighten the two and pull control counter clockwise cover from camera screws from base cable and power cable from bracket cable outlet.
  • Page 23 Step 3 Fix The Base l Set base on the installation l Tighten the three tapping position of bracket, and screws into the bracket arrange all of control cables in the inside bracket Step 4 Camera Setting Setting Fast Dome ID Setting Alarm Out Mode Setting RS-485 Protocol Step 5 Attach the Camera Body and Base...
  • Page 24: System Configuration

    SYSTEM CONFIGURATION LILIN's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system can be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording.
  • Page 25 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.
  • Page 26: Fast Dome, Matrix And Keyboard

    Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair.
  • Page 27: Fast Dome With Pc Control

    Baud Rate 9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by LILIN to control the dome. In this system up to 64 fast domes can be linked.
  • Page 28: Fast Dome, Dvr And Keyboard

    Fast Dome, DVR and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard.
  • Page 29: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).
  • Page 30: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push key 1 followed by CAM key. SPRAY AUX LIGHT CTRL1 CTRL2 WIPER POWER To select 64th Fast Dome ALARM SETUP RESET...
  • Page 31: Iris Control

    Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. Iris Open Push IRIS O key, to open the iris and brighten the picture. Iris will stop when the key is released. Iris Close CAM ESC CAM SETUP...
  • Page 32 Joystick Control Move the Joystick to bring the camera to the desired view position. Adjusting Lens ZOOM IN / OUT, FOCUS NEAR / FAR / AUTO and IRIS O / C / AUTO keys. When set up preset point, using manual focus will CAM ESC CAM SETUP 180 REV...
  • Page 33: Recalling Preset Positions

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. : 1 PRESET keys Ex.
  • Page 34: Activating Auto Pan

    Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered. To activate Auto Pan: CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push AUTO PAN key, confirming the activation of SPRAY AUX LIGHT CTRL1...
  • Page 35: Alarm Output

    Alarm Response Mode The fast dome alarm response can be set to Lock or Release mode. : dome remains at last alarmed preset point Lock Release : dome moves between alarmed points then reverts to prior status, such as autopan. Lock Mode When an alarm is triggered, the dome will go to the relevant position at 360 /sec and the keyboard will audio alert the user until it is canceled manually.
  • Page 36: Setup Menu Tree

    SETUP MENU TREE SETUP LANGUAGE MENU DISPLAY PRESET ID SETUP ZOOM RATIO ALARM MESSAGE DATE/TIME TIME DATE DATE FORMAT PAN/TILT ANGLE DOME CAMERA AUTO FOCUS SETTINGS ZOOM MIN. ZOOM MAX. ZOOM SPEED FOCUS SPEED AUTO IRIS LEVEL ADVANCED EXPOSURE MODE AUTO SETTING MANUAL...
  • Page 37 TOURS NUMBER EDIT TOUR CLEAR ABOVE NUMBER DWELL TIME SPEED PRIVACY NUMBER ZONES EDIT ZONE CLEAR ALARMS IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN MODE EVENT MODE EVENT RET. TIME PASSWORD ENABLE PASSWORD EDIT PASSWORD FACTORY INITIAL CAMERA SCHEDULE...
  • Page 38: Fast Dome Camera Function Setup

    CTRL 1 Press key to exit setup menu or push joystick down to select <EXIT>, and then press CAM SETUP key to exit setup menu. CTRL 1 MERIT LILIN FAST DOME LANGUAGE ENGLISH <DISPLAY SETUP> <DOME SETTINGS> <SCHEDULE SETUP> <SYSTEM INFORMATION>...
  • Page 39: Reboot System

    2. Camera, Pan/Tilt, Receiver version 3. Font of OSD version 4. Protocol rate and format 5. Fast dome ID number 6. Protocol version, LILIN717 (LILIN MLP1), LILIN MLP2 Display Character Setup Menu 1. Display Character Setup Menu CAM SETUP Press key into Setup Menu.
  • Page 40 MERIT LILIN FAST DOME DISPLAY SETUP LANGUAGE ENGLISH PRESET ID <DISPLAY SETUP> ZOOM RATIO <DOME SETTINGS> ALARM MESSAGE <SCHEDULE SETUP> DATE/TIME <SYSTEM INFORMATION> PAN/TILE ANGLE <CAMERAS RESET> <REBOOT SYSTEM> EXIT BACK EXIT 2. Preset ID setting Push joystick down to select <PRESET ID>, and then push joystick left or right to make selection: OFF : No Preset ID on the monitor screen.
  • Page 41 DISPLAY SETUP DATE/TIME PRESET ID TIME 12 : 00 : 01 ZOOM RATIO DATE 07 / 01 / 02 ALARM MESSAGE DATE FORMAT yy / mm / dd DATE/TIME <ON> PAN/TILE ANGLE BACK EXIT BACK EXIT (1) Time Adjustment CAM SETUP Push joystick down to select <TIME>, and then press key to setup time.
  • Page 42: Display Function Setup Menu

    Press key into Setup Menu. CTRL 1 CAM SETUP Push joystick down to select <DOME SETTINGS>, and then press key into dome CTRL 1 setting menu. MERIT LILIN FAST DOME DOME SETTING LANGUAGE ENGLISH <CAMERA> <DISPLAY SETUP> <PAN/TILT> <DOME SETTINGS>...
  • Page 43: Zoom Maximum Setting

    (3) Zoom Maximum Setting Push joystick down to select <ZOOM MAX>, and then push joystick left or right to adjust zoom maximum setting. 22X : Zoom maximum ranges are x15 ~ x22. 35X : Zoom maximum ranges are x18 ~ x35. (4) Zoom Speed Setting Push joystick down to select <ZOOM SPEED>, and then push joystick left or right to adjust zoom speed setting.
  • Page 44: Backlight Compensation Setting

    CAM SETUP Press key into Auto Exposure Setting, CTRL 1 AUTO EXPOSURE and then push joystick left or right to made MAX SHUT SPEED 1/100000 selection. 1/250 1/500 1/1000 1/2000 1/100000 1/10000 1/4000 BACK EXIT MANUAL EXPOSURE : This mode can set a fixed shutter speed with iris to exhibit image effect.
  • Page 45: Ir Cut Filter Setting (Pih-7622Dh/7635Dh)

    (5) IR Cut Filter Setting (PIH-7622DH/7635DH) Push joystick down to select <IR CUT REMOVE>, and then push joystick left or right to select mode. AUTO SCHED. AUTO: When light level is over 30 lux, IR Cut Filter switches IN automatically to produce color image.
  • Page 46: Synchronization Mode Setting

    IN: IR Cut Filter is ON and always produce constant color image. OUT: IR Cut Filter is OFF and always produce constant monochrome image. (6) Synchronization Mode Setting Push joystick down to select <SYNC MODE>, and then push joystick left or right to select mode.
  • Page 47: Aperture Gain Setting

    (3) Aperture Gain Setting Push joystick down to select <APERTURE GAIN>, and then push joystick left or right to make selection. (00 ~ 15) (4) Mirror Setting Push joystick down to select <MIRROR>, and then push joystick left or right to make selection.
  • Page 48: Self Return Time Setting

    3. Self Return Time Setting Push joystick down to select <SELF RETURN TIME>, and then push joystick left or right to select return time. OFF: NO action. 1 ~ 90: Delay time of return time setting is 1~90 min. Note: When keyboard control isn't used, "Return Time" is also over, "Return Mode" function will be started.
  • Page 49: Patrol Mode Setting

    (1) Position of Auto Pan Setting CAM SETUP Push joystick down to select <EDIT POSITION>, and then press key into setting CTRL 1 menu. ZOOM ZOOM Push joystick left, right, up or down to select start position, and then press FOCUS FOCUS IRIS...
  • Page 50: Preset Function Setting Menu

    (2) Clear Memory of Patrol CAM SETUP Push joystick down to select <CLEAR>, and then press key to clear all memory CTRL 1 of patrol. Preset Function Setting Menu 1. Display the Preset Setting Menu After getting in dome setting menu, push joystick down to select <PRESETS>, and then press CAM SETUP key into presets setting menu.
  • Page 51 3. Preset Position Setting CAM SETUP Push joystick down to select <EDIT POSITION>, and then press key into preset CTRL 1 position setting. ZOOM ZOOM FOCUS FOCUS Push joystick left, right, up, or down to start position, and then press NEAR IRIS IRIS...
  • Page 52 (5) Preset ID Position Setting CAM SETUP Push joystick down to "POSI", and then press key to get in. CTRL 1 CAM SETUP Push joystick to move preset ID to needful position of frame, and then push CTRL 1 to confirm. (6) Return Preset Menu CAM SETUP Push joystick down to "OK", and then press...
  • Page 53: Tour Function Setting Menu

    Tour Function Setting Menu 1. Display the Tour Setting Menu After getting in dome setting menu, push joystick down to select <TOURS>, and then press CAM SETUP key into tours setting menu. CTRL 1 TOURS NUMBER 2. Tour Number Selection <EDIT TOUR>...
  • Page 54: Privacy Zones Setting Menu

    Privacy Zones Setting Menu 1. Display the Privacy Zones Setting Menu After getting in dome setting menu, push joystick down to select <PRIVACY ZONES>, and CAM SETUP then press key into privacy zones setting menu. CTRL 1 PRIVACY ZONES NUMBER <EDIT ZONE>...
  • Page 55: Alarms Setting Menu

    Alarms Setting Menu 1. Display the Alarms Setting Menu After getting in dome setting menu, push joystick down to select <ALARMS>, and then press CAM SETUP key into alarms setting. CTRL 1 ALARMS IN MODE LOCK EVENT MODE 1 min EVENT RETURN TIME BACK EXIT...
  • Page 56: Password Function Menu

    Password Function Menu 1. Display the Password Setting Menu After getting in dome setting menu, push joystick down to select <PASSWORD>, and then CAM SETUP press key into password function menu. CTRL 1 PASSWORD ENABLE PASSWORD <EDIT PASSWORD> BACK EXIT 2.
  • Page 57: Restore Factory Defaults

    5. Input Password CAM SETUP After password function is ON, press key to display frame of input password on the CTRL 1 screen. IRIS When protocol is MLP1, push joystick up or down to select number 0~9 and press key to confirm.
  • Page 58: Schedule Setup Menu

    CTRL 1 CAM SETUP Push joystick down to select <SCHEDULE SETUP>, and then press key into schedule CTRL 1 setting. MERIT LILIN FAST DOME SCHEDULE SETUP LANGUAGE ENGLISH <ALARM IN> <DISPLAY SETUP> <STARTUP AUTO OPTIONS> <DOME SETTINGS>...
  • Page 59: Alarm Input Schedule Setting Menu

    Alarm Input Schedule Setting Menu 1. Display the Alarm Input Schedule Setting Menu After getting into schedule setting menu, push joystick down to select <ALARM IN>, and then CAM SETUP press key into alarm input schedule setting menu. CTRL 1 ALARM IN STARTUP START...
  • Page 60: Startup Auto Options Menu

    Startup Auto Options Menu 1. Display the Startup Auto Options Setting Menu After getting into schedule setting menu, push joystick down to select <STARTUP AUTO CAM SETUP OPTIONS>, and then press key into startup auto options setting menu. CTRL 1 STARTUP AUTO OPTIONS 1.
  • Page 61: Daylight Saving Time Menu

    STARTUP AUTO OPTIONS 1. 12:00 SEQ. . 13:00 STOP . 20:00 TOUR1 . 09:00 STOP . 00:00 . 00:00 . 00:00 . 00:00 BACK EXIT Daylight Saving Time Menu 1. Display the Daylight Saving Time Setting Menu After getting into schedule setting menu, push joystick down to select <DAYLIGHT SAVING CAM SETUP TIME>, and then press key into daylight saving time setting menu.
  • Page 62: Specification

    SPECIFICATION Operational Manual Pan / Tilt Speed 0.15 ~ 120 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 255 /sec Preset Position Dwell Time 1 ~ 255 sec Recall Preset Position Pan / Tilt Speed 360 /sec 180 Instant Flip Rotation Speed 360 /sec Pan Rotation...
  • Page 63: Optical Lens

    Optical Lens f = 3.9 ~ 85.8mm 22X Lens Focal Length F1.6 (wide) ~ F3.7 (telephoto) 22X Lens Aperture Max 50.13 (wide) / 2.4 (telephoto) 22X Horizontal View Angle f = 3.6 ~ 128mm X Lens Focal Length F1.6 (wide) ~ F4.2 (telephoto) 35X Lens Aperture Max 53.8 (wide) / 1.64 (telephoto) 35X Horizontal View Angle...
  • Page 64: Appendix A Quick Reference Table

    APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Pan Left Push Joystick Left Push Joystick Right To Pan Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 65: Appendix B Trouble Shooting

    APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check connection between camera body and base 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3. Check video input connection on monitor 2-4.
  • Page 66: Appendix C Preset Id Characters Table

    APPENDIX C Preset ID Characters Table Page 1 " < > Page 2 66-7622CSE-3...
  • Page 67 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-7622CSE...

This manual is also suitable for:

Pih-7622dh seriesPih-7622 series
