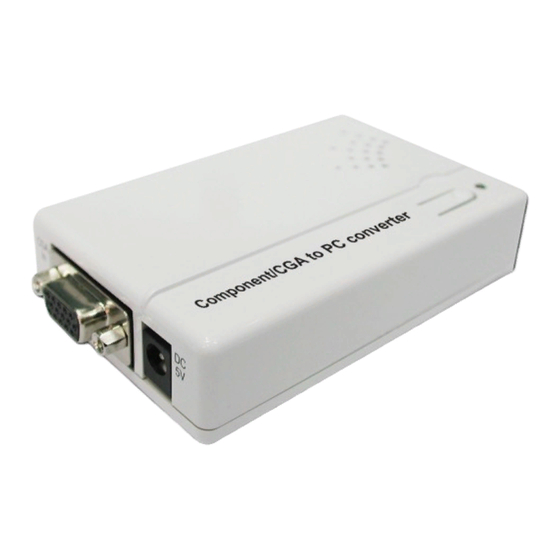

CYP CM-397 Operation Manual

Cyp component/cga to wxga converter
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Component/CGA to
WXGA Converter
Operation Manual
CM-397

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-397 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CM-397

Summary of Contents for CYP CM-397

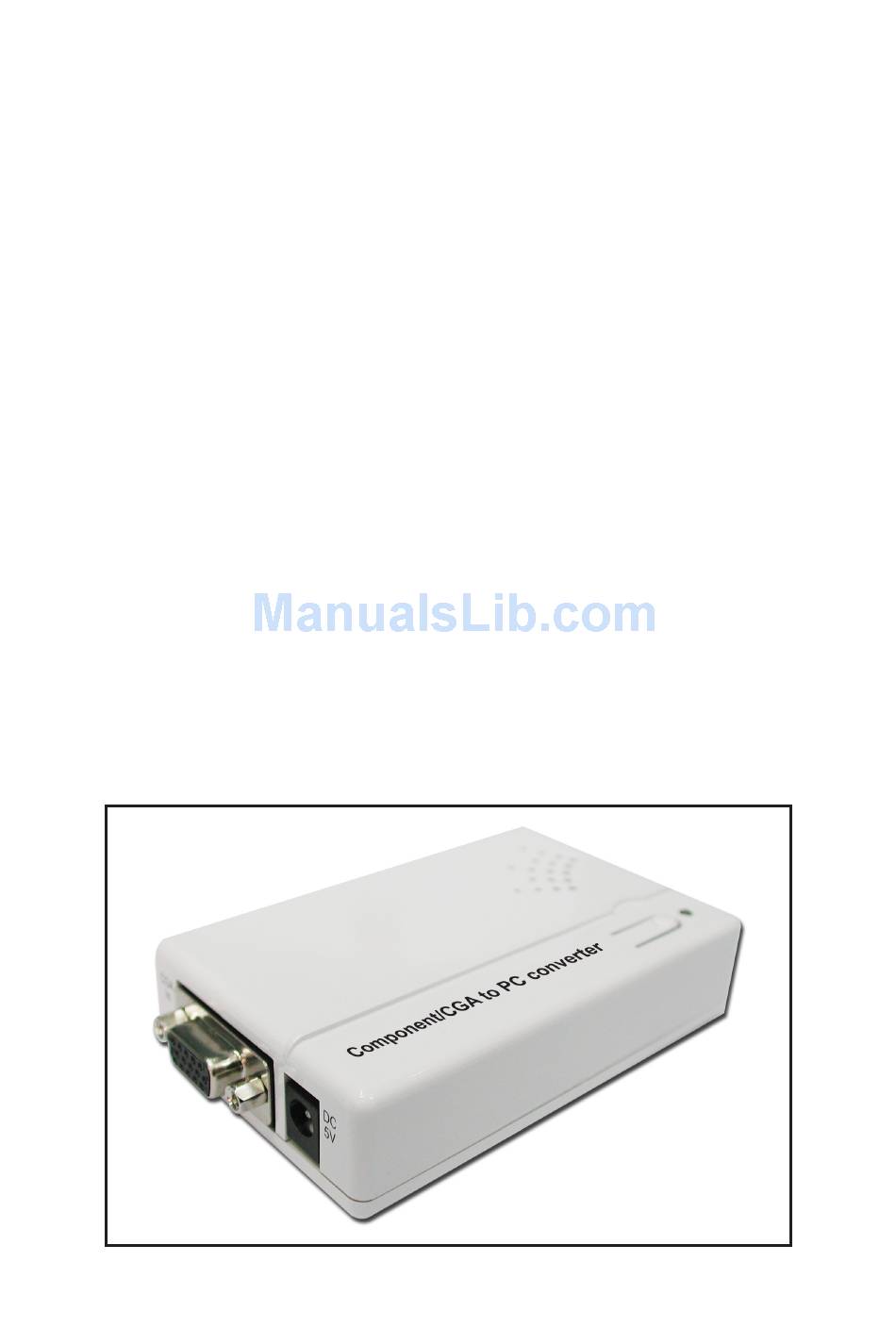

  • Page 1 Component/CGA to WXGA Converter Operation Manual CM-397...
  • Page 2 The CM-397 converts CGA (RGB) or Component (YCbCr) format to 3 PC modes of VGA/XGA and WXGA. It enables you to connect your RGB or YCbCr signal source such as game boards to a PC display. Features: - Accepts RGB or YCbCr format and converts to PC format.

  • Page 3: Specifications

    Specifications: - Input connector: D-Sub 15 female x 1 - Input signal: RGB 0.7 Vp-p 75 ohm /Hsync/V sync 2 Vp-p 75 ohm YCbCr Y 1 Vp-p 75 ohm/CbCr 0.7Vp-p 75 ohm - Input timings: CGA: Hf=15KHz, Vf=60Hz/Non-interlace 480i : Hf=15KHz, Vf=60Hz/Interlace 576i : Hf= 15KHz, Vf=50Hz/Interlance - Input format selection: Press the input select switch on the top cover to select between RGB and YCbCr input fromat.
  • Page 4 D-Sub 15 female Pin Configuration INPUT CONNECTOR: - Input pin1: R/Cr pin2: G/Y pin3: B/Cb pin4: NC pin5: ground pin6: ground pin7: ground pin8: ground pin9: NC pin10: ground pin11: NC pin12: NC pin13: Hsync/Hsync+Vsync pin14: Vsync pin15: NC OUTPUT CONNECTOR: -Output pin1: R pin2: G pin3: B...
