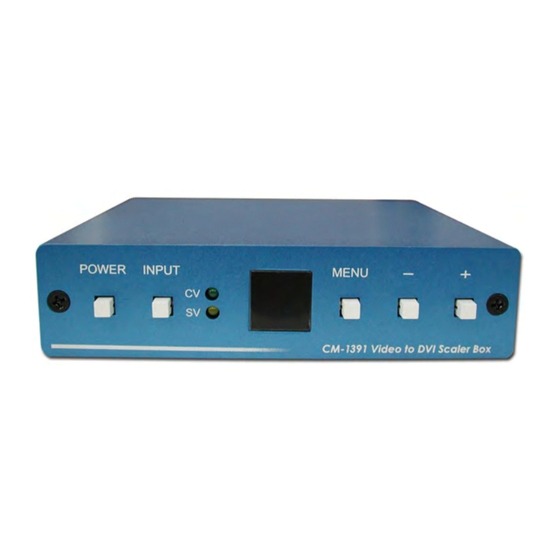

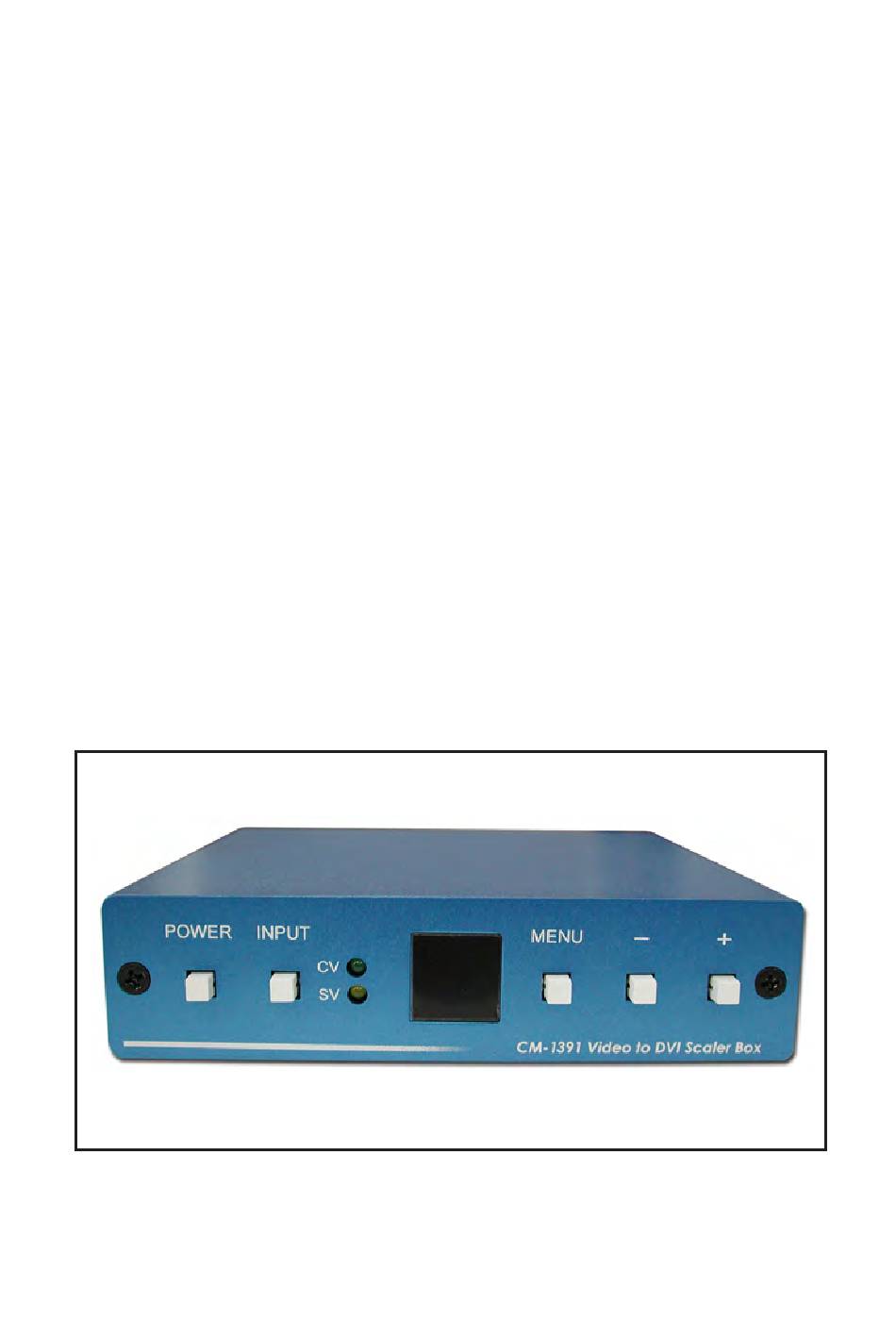

- Page 1 Video to DVI Scaler Box CM-1391 Operation Manual...
-
Page 2: This Package Includes
(1). Introduction This professional video scaler is designed to convert Composite and S-Video to high definition DVI resolutions. It handles video input from TV systems of NTSC, PAL TV standards with many great features to enhance video performance. (2). Features 1. -
Page 3: Operation Controls And Functions
S-Video provides improved performance over composite video and is recommended over composite. 4. DVI output: The CM-1391 can output a variety of PC and HDTV progressive resolutions, in both digital and analog format through DVI-I connector. Digital output: Connect CM-1391's digital DVI output to the DVI input of your TV/display unit using a DVI to DVI cable . -
Page 4: Output Format
(5). Output Format a. The format of digital DVI output is digital RGB for all resolutions. HDTV (RGBHV) HDTV (RGBHV) 1080p-RGB -RGB 1920x1080p follow input source -RGB 1080i-RGB 1920x1080i follow input source -RGB 720p-RGB follow input source 1280X720 -RGB 576p-RGB 720X576 -RGB 480p-RGB... -
Page 5: Dvi-I Pin Configuration
Output Setup When Output Set up is selected a submenu as below appears: Output Setup Timing XGA Exit Press the " MENU/ENTER" button to enter into output timing select mode. Press +,- to toggle through a variety of output resolutions as below. Once your desired resolution is selected. -
Page 6: Remote Control
(8). Remote Control 1. Display: Press the button to display input source and output resolution on the screen. 2. Power: Power ON/OFF button. 3. VGA~1080p: Press to select your desired SVGA output resolution. 4. Picture: Press the button to enter picture adjust submenu. -
Page 7: Installation
(10). Installation a. Digital Out: Connect to your TV through digital DVI interface Video, DVI Cable SVideo output Input VCR, DVD, STB, DVHS PC display Monitor, Projectors b. Analog Out: Connect to your TV through VGA or component interface in case your TV has no DVI input VGA cable DVI to Analog...
