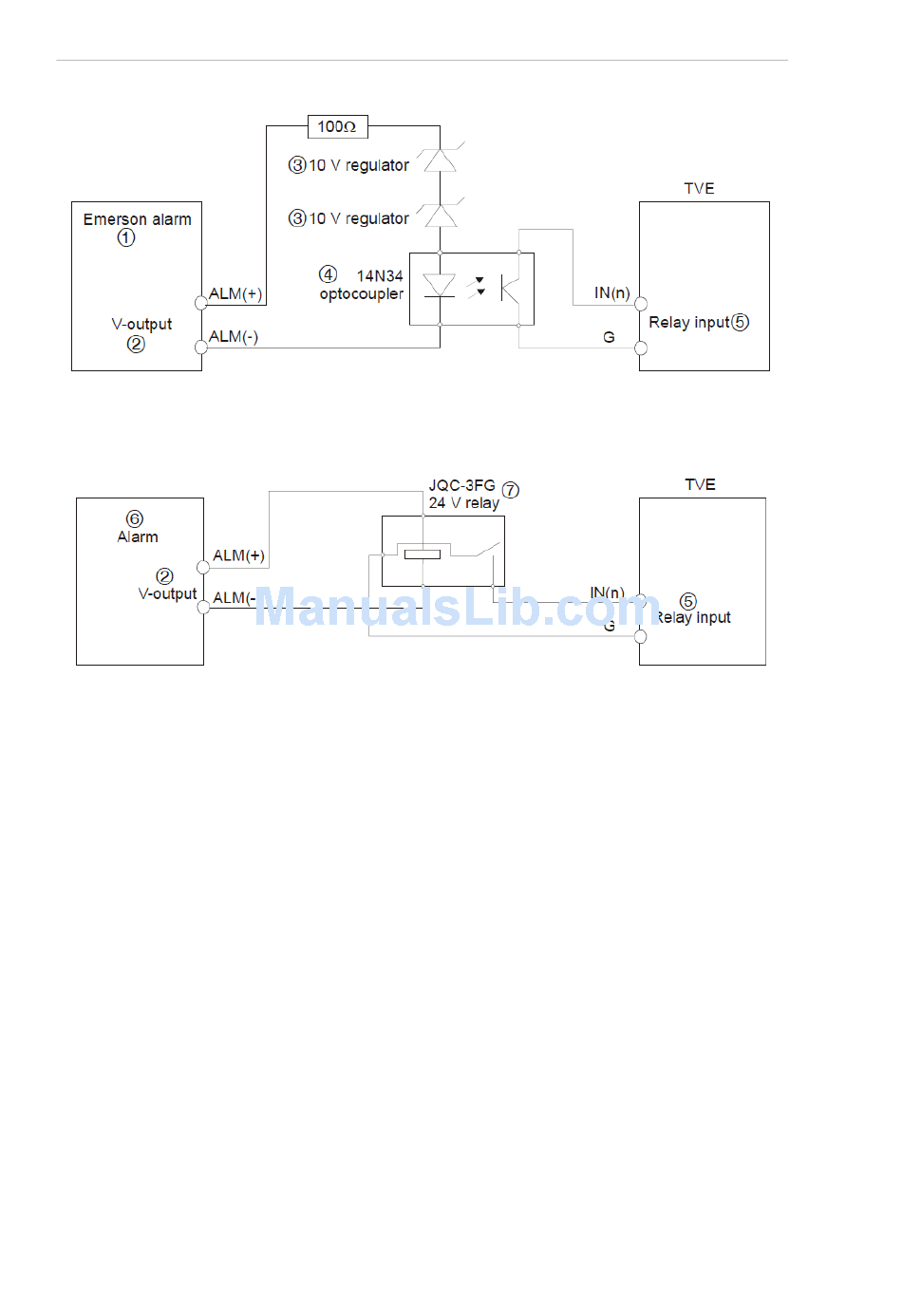

Figure 3: Alarm input connections
Alarm input connections for Emerson alarm:
Alarm input connections for normal alarm:
1. Emerson alarm
2. V output
3. 10 V regulator
The TVE encoder supports the open/close relay input as the alarm output mode.
The alarm input can be selected to NO or NC. Different alarm output connection
methods are applied to the AC or DC load. See Figure 3.
For TVE-110, you need to connect G and NO manually and then connect C and
NO to the alarm devices.
4
4. 4N35 optocoupler
5. Relay output
6. Normal alarm
7. JQC-3FG 24 V relay
