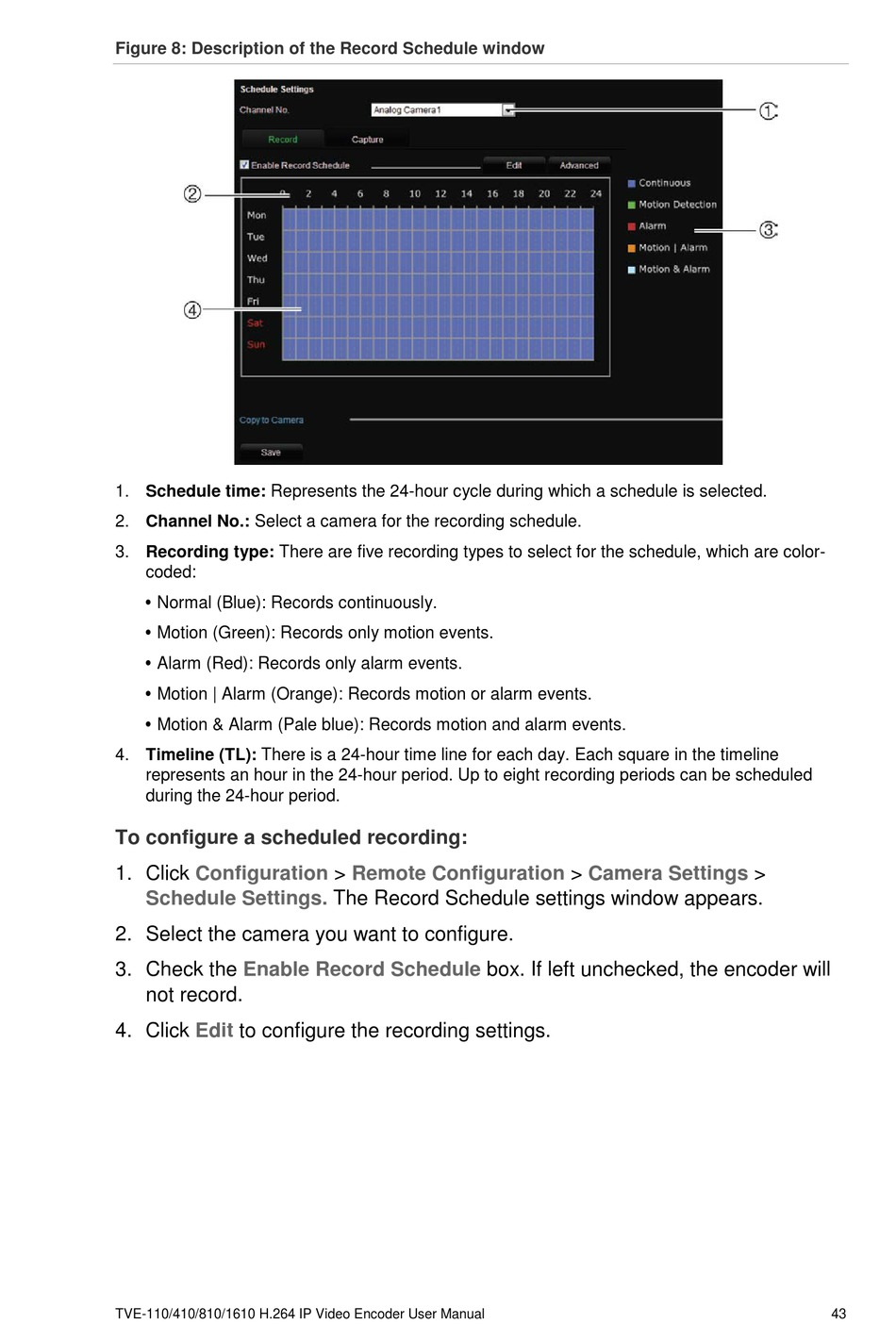

Figure 8: Description of the Record Schedule window
1. Schedule time: Represents the 24-hour cycle during which a schedule is selected.
2. Channel No.: Select a camera for the recording schedule.
3. Recording type: There are five recording types to select for the schedule, which are color-
coded:
 Normal (Blue): Records continuously.
 Motion (Green): Records only motion events.
 Alarm (Red): Records only alarm events.
 Motion | Alarm (Orange): Records motion or alarm events.
 Motion & Alarm (Pale blue): Records motion and alarm events.
4. Timeline (TL): There is a 24-hour time line for each day. Each square in the timeline
represents an hour in the 24-hour period. Up to eight recording periods can be scheduled
during the 24-hour period.
To configure a scheduled recording:
1. Click Configuration
Schedule Settings.
2. Select the camera you want to configure.
3. Check the Enable Record Schedule
not record.
4. Click Edit to configure the recording settings.
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
> Remote Configuration
The Record Schedule settings window appears.
box. If left unchecked, the encoder will
> Camera Settings >
43
