Interlogix TVE-110 User Manual page 34

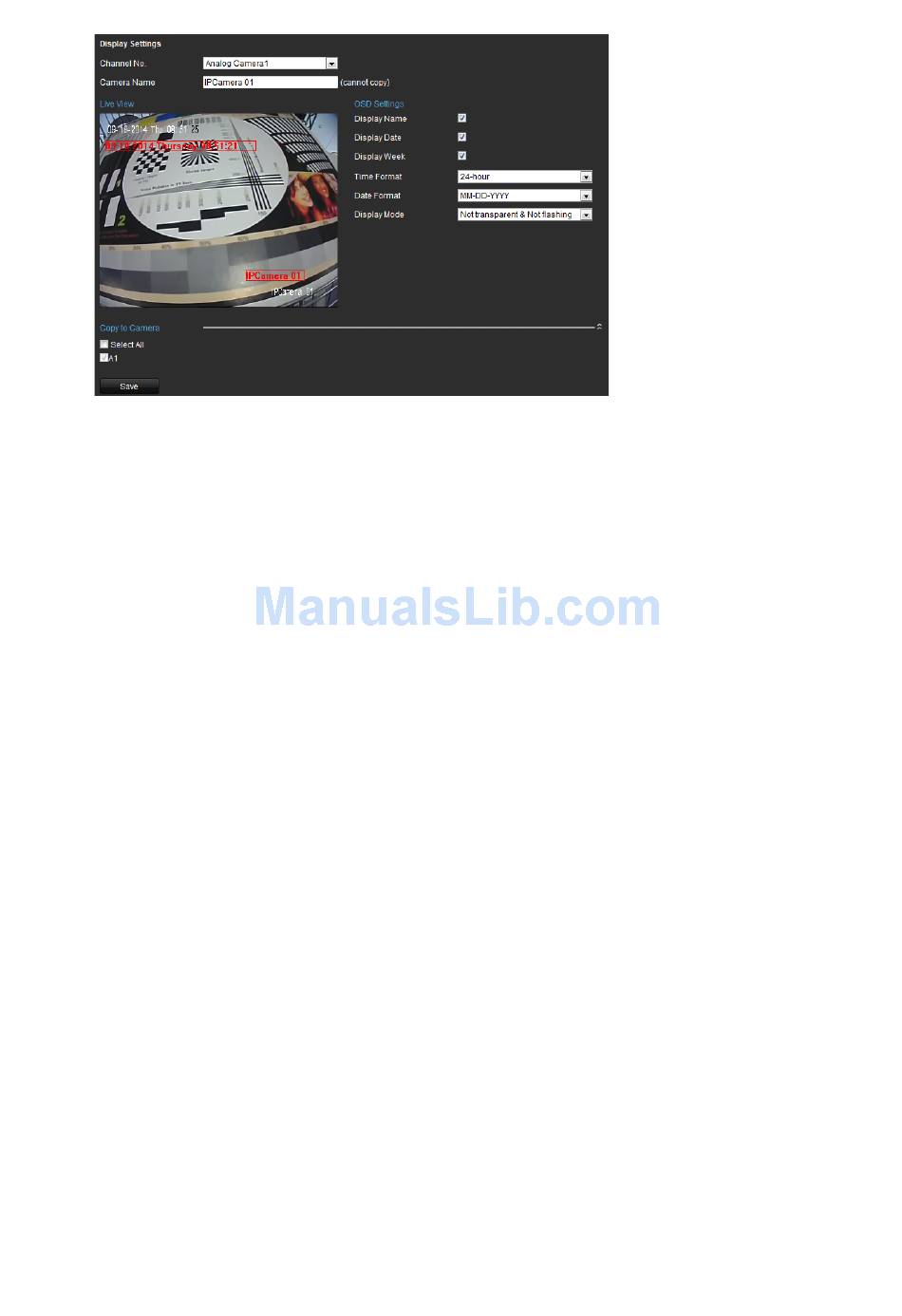

2. Select a camera from the drop-down list.
3. Edit the camera name in
4. Select the display of camera name, date or week by checking the checkboxes
if required.
5. Set the time format, date format and OSD display mode by selecting option
from the drop-down list.
6. On the live image, you can adjust the OSD location on the screen by moving
the text frame.
7. If you want to copy the display settings of the current camera to other
cameras, go to the
or click Select All
8. Click Save to save the settings.
To add a text overlay:
1. Click the Configuration
Text Overlay. The Text Overlay Setting window appears.
2. Select the camera from the drop-down list.
3. Edit the user-defined text content.
Click the checkbox in the text box below and then input the characters. Up to
eight character strings can be edited.
4. Click Save. The edited text is shown on the image.
5. On the preview image, you can adjust the Text location on the screen by
moving the text frame.
30
Camera Name.
Copy to Camera panel and select the camera(s) to copy,
to select all cameras.
> Remote Configuration
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
> Camera Settings >
