Interlogix TVE-110 User Manual page 28

Directory: In the Directory Structure field, you can select the root directory,
parent directory and child directory. When the parent directory is selected,
you have the option to use the Device Name, Device Number or Device IP for
the name of the directory; and when the Child Directory is selected, you can
use the Camera Name or Camera Number as the name of the directory.
Upload type: To enable uploading snapshots to the FTP server.
4. Click Save to save the settings.
Note: If you want to upload the captured pictures to FTP server, you have to
configure snapshot settings on Snapshot page. For detailed information,
please refer to Snapshot Settings section.

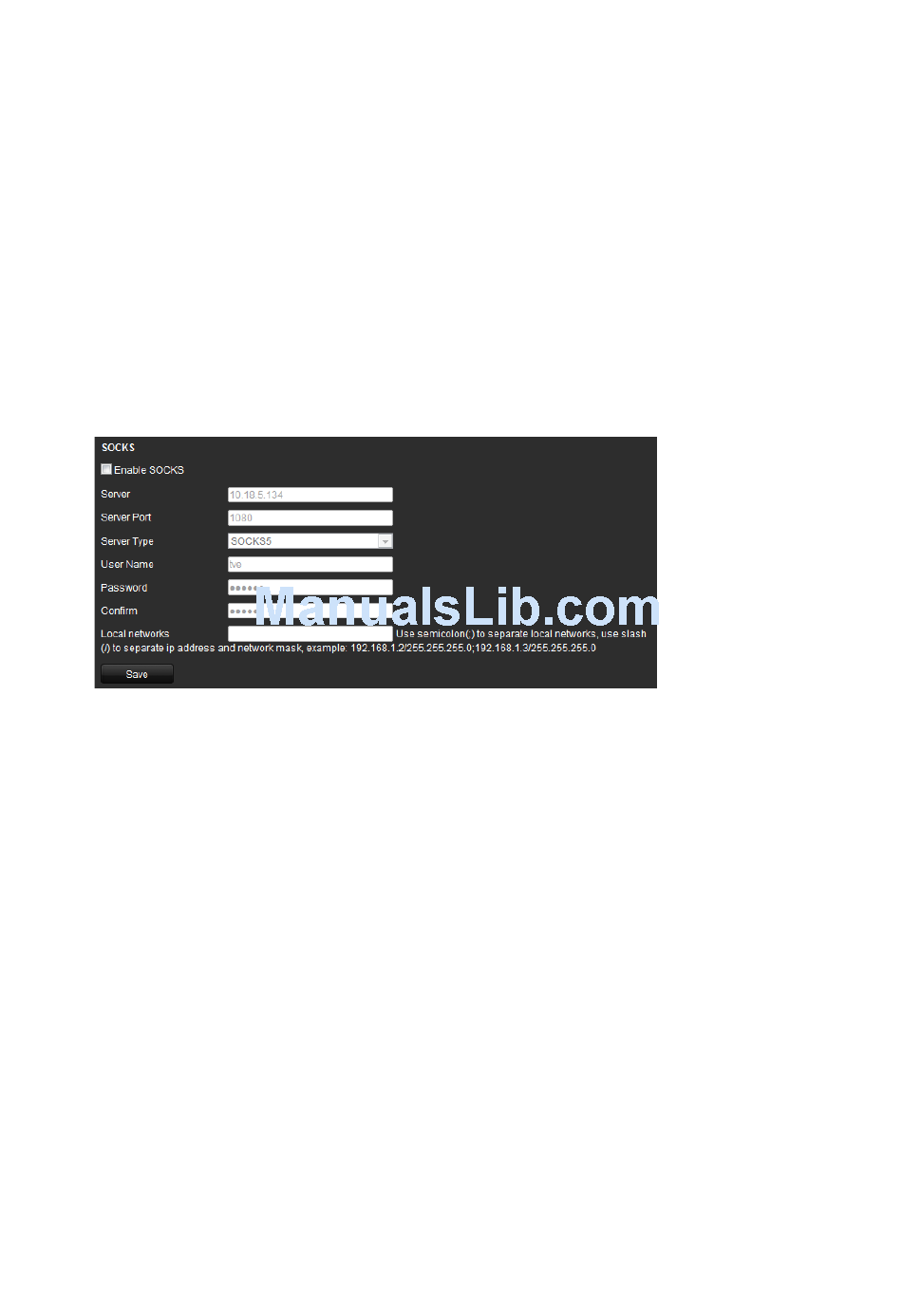

To configure SOCKS settings:
1. Click the Configuration
SOCKS. The SOCKS window appears.
Configure the following settings:
Server: Enter the address of the SOCKS server.
Server Port: Enter the port of the SOCKS server (default: 1080).
Server Type: Select the server type to SOCKS4 or SOCKS5. When you
select SOCKS5, you can enable the user authentication on the server and
then enter the login user name and password here.
Local Networks: Define the local network segment that does not need to use
the SOCKS proxy server. You can enter multiple network addresses and use
the semicolon (;) to separate them, e.g., 10.0.0.0/255.0.0.0;
172.16.0.0/255.240.0.0.
2. Click Save to save the settings.
To configure NAT settings:
1. Click the Configuration
NAT. The NAT window appears.
24
> Remote Configuration > Network Settings >
> Remote Configuration > Network Settings >
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
