Enterview 5 Overview

4 Handsets maximum per-system
2 Audio-Only handsets maximum per-system
Each handset requires supplied PSU (1 PSU per handset required)
Keypad Camera requires suppIied PSU
Standard Camera requires EVBPS for door release facility
For a voltage-free contact: Keypad Camera requires a12VDC relay (not supplied)
CAT5e cable speci fied for maximum distances
100 Meters maximum distance between outdoor station and furthest handset
10 Meters maximum distance between handset and supplied PSU - Note: 2 pairs of
CAT5e must be used to achieve this distance

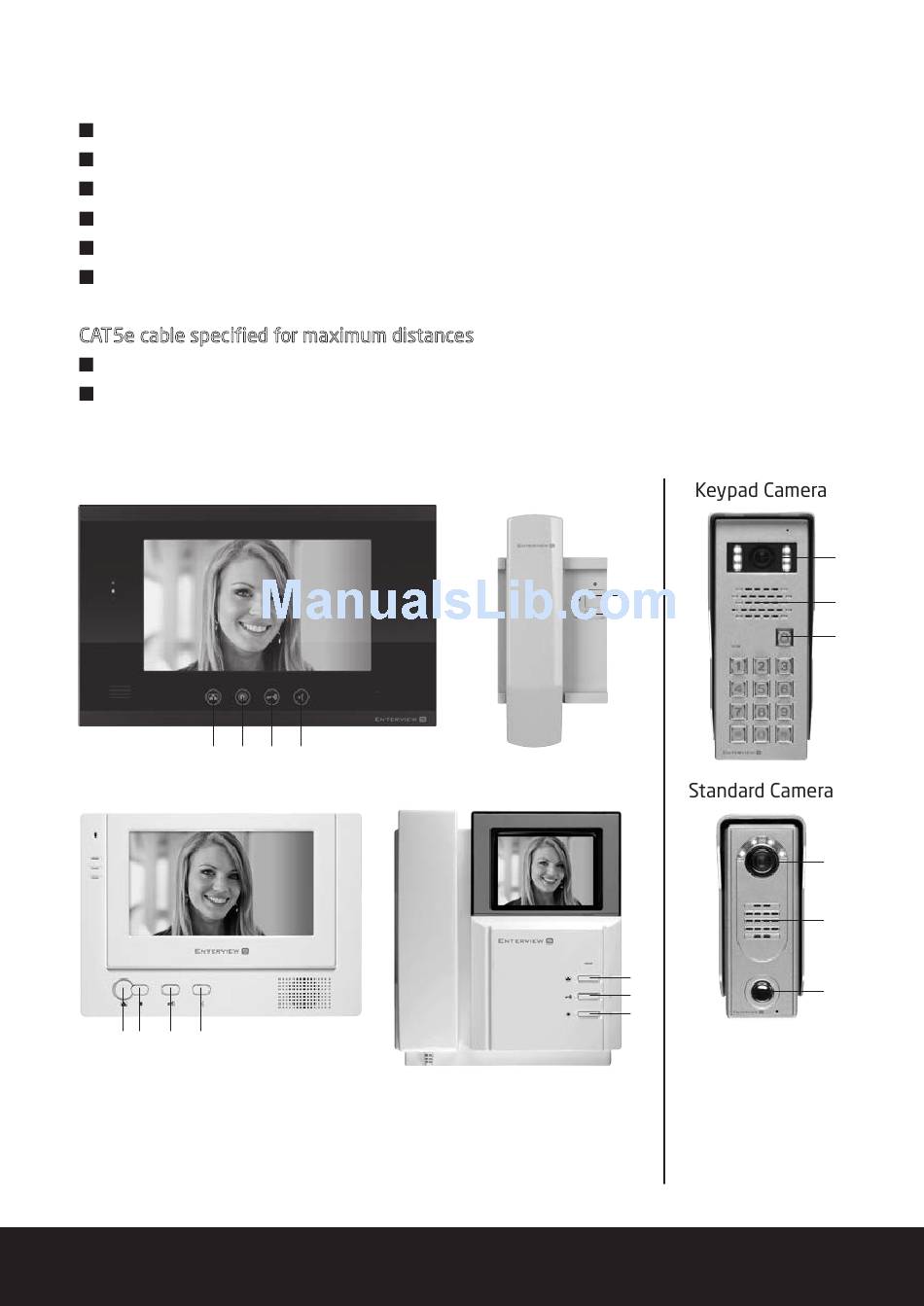

EVHF10B / EVHF10W
1 3
EVH5C-HF
1 3 2 4
1 – Opens Camera Channel
2 – Door Release
3 – Call Transfer
4 – Opens 2-way Audio
2 4
EVH5AO
2
3
EVH5
1
2
3
1
2
3
1
2
3
1 – Camera
2 – Speaker
3 – Call Button
3
