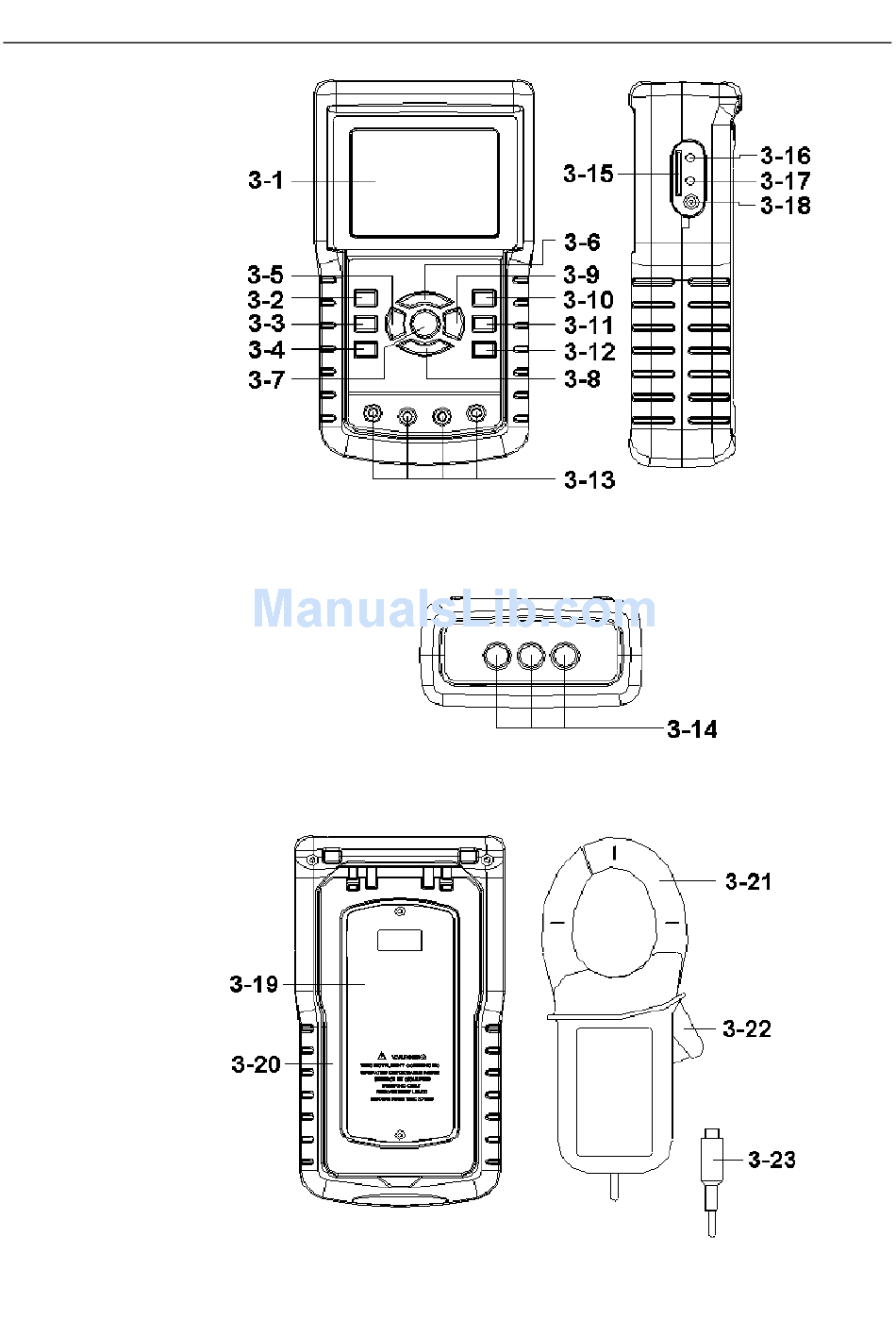

3.0 Meter Description

3-1 Display
3-2 Phase/Wire button
3-3 ▲ button
3-4 ▼ button
3-5 Hold button
3-6 Backlight button
3-7 Power button
3-8 Exit button
3-9 REC button
3-10 Amp range button
3-11 Shift button
3-12 Setup button
3-13 Volt input terminals
3-14 Probe input sockets
3-15 SD card socket
3-16 RS232 socket
3-17 Reset button
3-18 9V adapter socket
3-19 Battery compartment
3-20 Stand
3-21 Current Sense Jaw
3-22 Trigger
3-23 Plug for current probe
