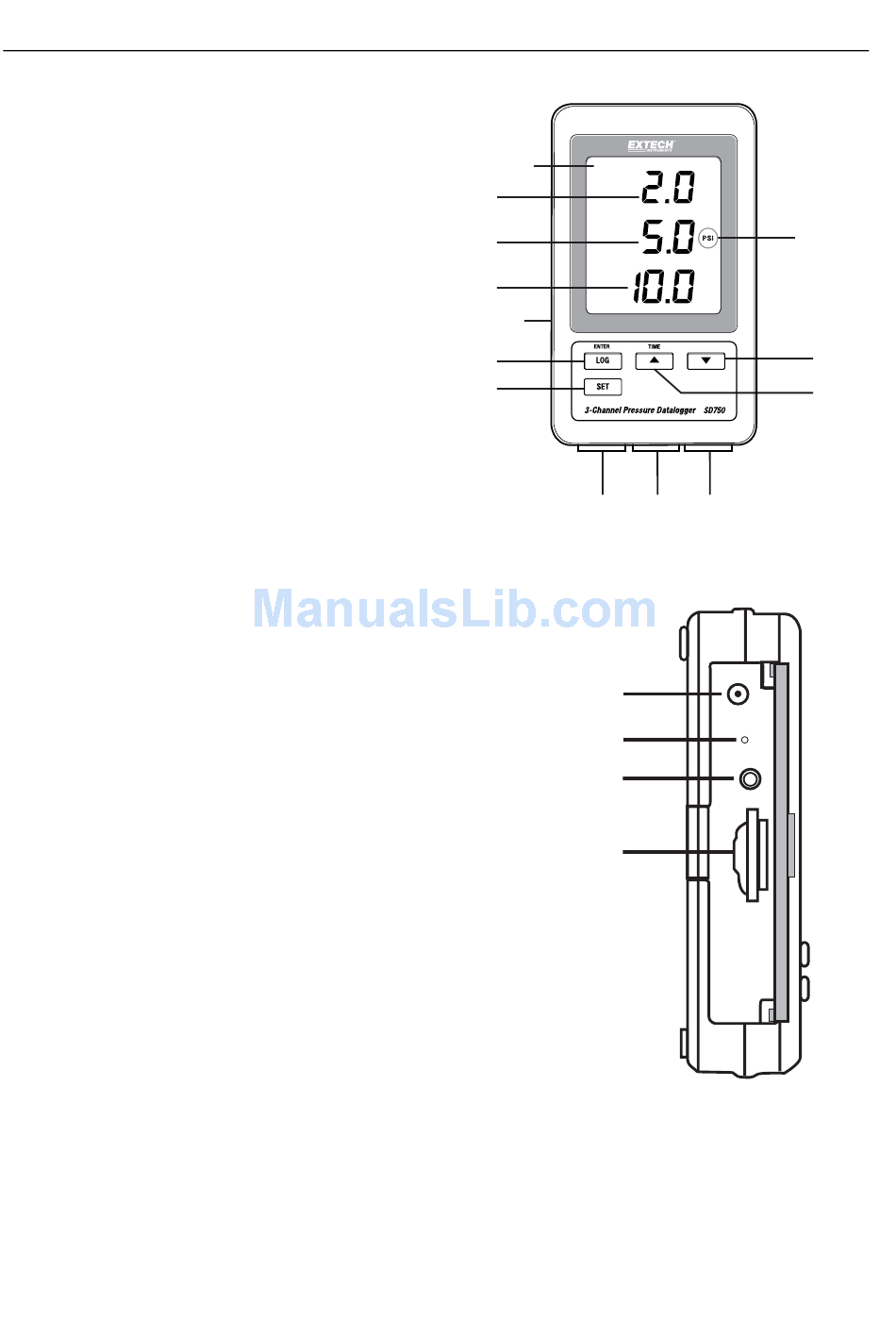

Meter Description
1.
LCD Display
2.
Channel 1 Pressure Reading
3.
Channel 2 Pressure Reading
4.
Channel 3 Pressure Reading Display
5.
Unit of measure for all channels
6.
Protective compartment door (side)
7.
LOG (ENTER) button
8.
SET button
▼ down arrow button
9.
10. ▲ (TIME) up arrow button
11. Channel 1 transducer input (4‐20mA)
12. Channel 2 transducer input (4‐20mA)
13. Channel 3 transducer input (4‐20mA)
Left side view (behind protective door)
14. AC power adaptor jack for supplied adaptor
15. Reset button (press if display locks)
16. RS‐232 16‐bit data stream output
17. SD memory card socket
Note: The battery compartment, tilt stand, and wall mount access holes, not pictured, are
located on the rear of the meter.
1
2
3
4
6
7
8
11 12 13
14
15
16
17
3
5
9
10
SD750-EU-EN V1.6 08/13
