Function
AC/DC Current (A)
AC/DC Current (mA, µA)
AC/DC Voltage
AC/DC Voltage (LoZ)
Frequency, Resistance, Capacitance, Diode,
Temperature

QUICK STEPS

1. Connect test lead plugs to the jacks at the bottom of the meter.
2. Turn the function switch to the desired measurement position.
3. For all functions, except current, touch the test lead tips across
the circuit or component under test.
4. For current measurements, the test lead tips must be placed in
series with the circuit under test.
5. Use the MODE button to select AC, DC, or other modes.
6. View the measurement and multifunction indicators on the LCD.
7. Turn the function switch to the OFF position, when finished.

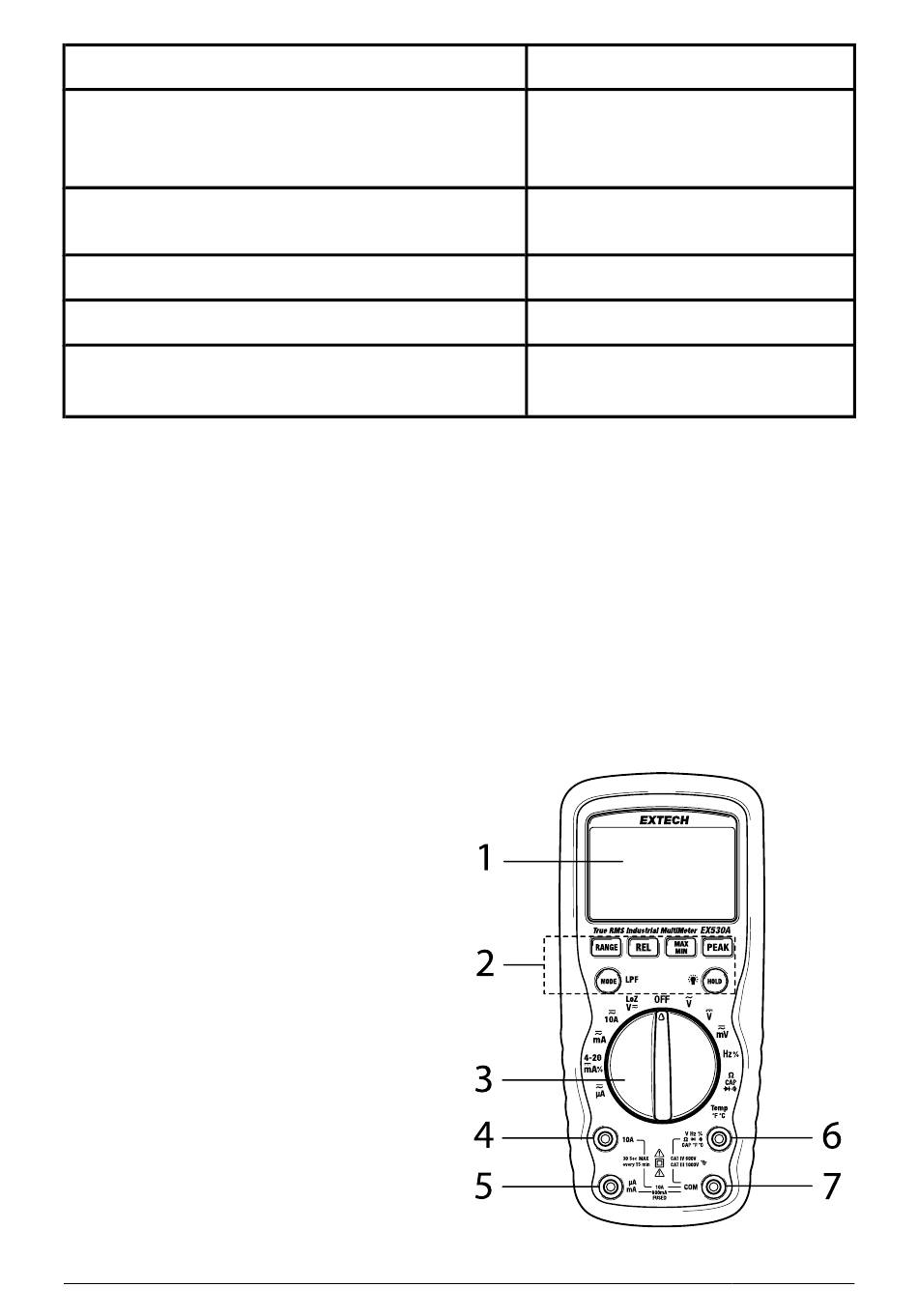

METER DESCRIPTION

1. Backlit LCD with bar graph.
2. Control buttons.
3. Function switch.
4. 10 A positive test lead input.
5. µA and mA positive test lead
input.
6. Voltage, frequency, resistance,
diode, continuity, capacitance,
temperature positive test lead
input.
7. Negative (common) input test
lead input.
#NAS100180; r. AD/96050/96066; en-US
Maximum Input
10 A (1000 V) fast acting fuse
(30 seconds maximum at 15
minute intervals)
800 mA (1000 V) fast acting
fuse
1000 V DC and AC RMS
500 V DC and AC RMS
250 V DC and AC RMS
