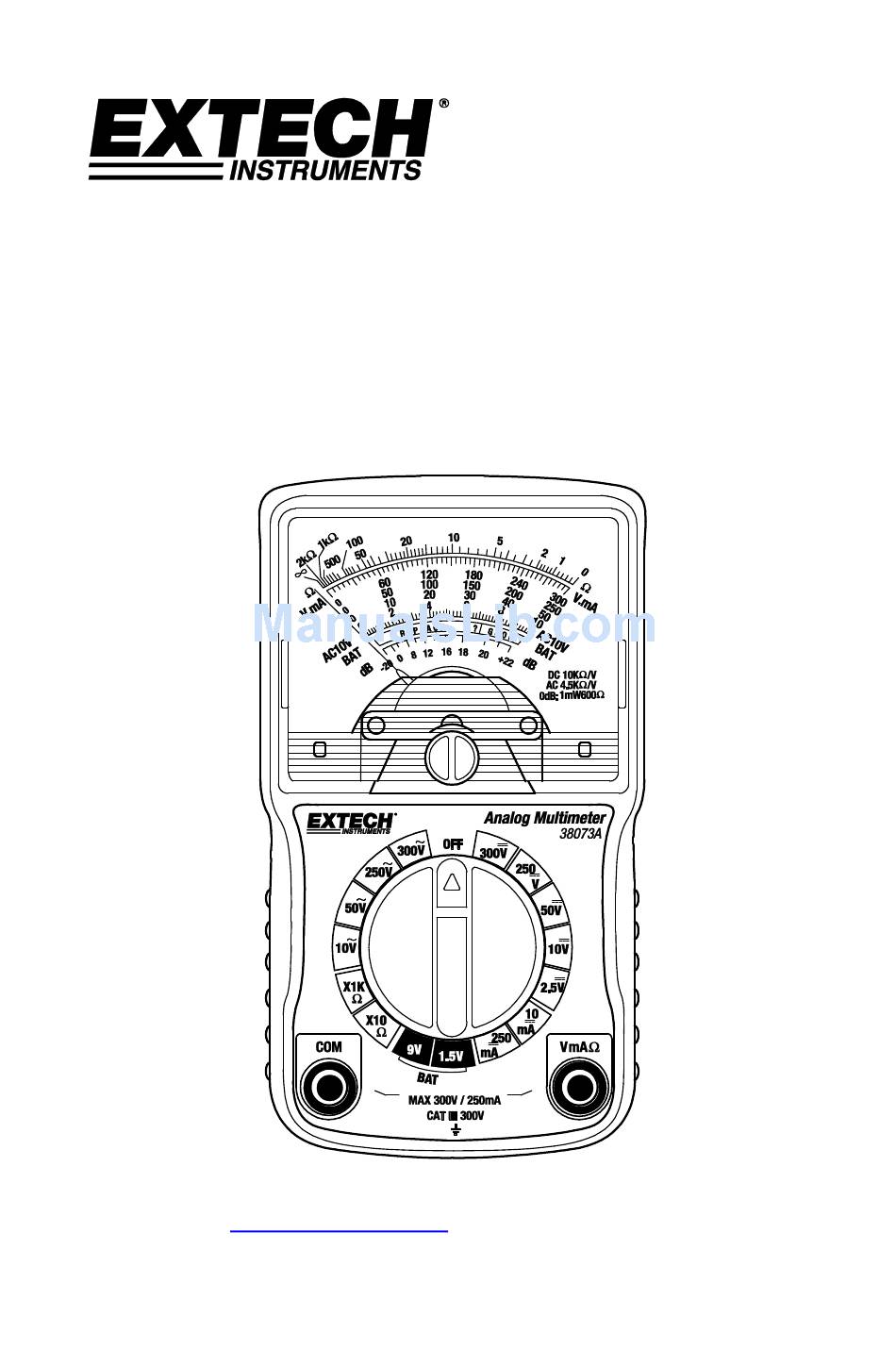

- Page 1 USER MANUAL Mini Analog MultiMeter Model 38073A Please visit www.extech.com for user manual translations ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
-
Page 2: Safety Information
Introduction Thank you for selecting the Model 38073A Mini Analog MultiMeter. The 38073A measures AC/DC Voltage, DC mA Current, Resistance, dB, and 1.5V/9V batteries. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User... -
Page 3: Safety Symbols
Equipment protected by double or reinforced insulation Description Meter Description Analog scale Mechanical zero Rotary switch V-mA-Ω positive input jack COM negative input jack Zero Ω adjustment dial Pointer needle 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 4: Display Description
(2) until the pointer needle (7) points to the zeros at the left end of the scale. For greater accuracy, lay the meter on a flat, non-metallic surface when testing. 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at:... -
Page 5: Ac/Dc Voltage Measurements
6. If the needle deflects to the left, reverse the test leads. 7. Use the chart below to read DC mA measurements. DCmA Range Setting Scale Multiply reading by 0-10 0-250 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 6: Resistance Measurements
4. Use the display scale labeled BAT to determine the quality of the battery. Green=Good ?=Replace Soon Red=Replace Immediately 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 7: Maintenance
1. Turn the meter off and remove the test leads from the meter. 2. Remove the Phillips head screw from the back of the meter and lift off cover. 3. Replace the fuse with one of the same type and rating. Re-assemble the meter. 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 8: General Specifications
Ingress Protection Rating IP20 Standards CE and ETL Copyright © 2016 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 38073A-en-GB_v1.0 9/16 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
