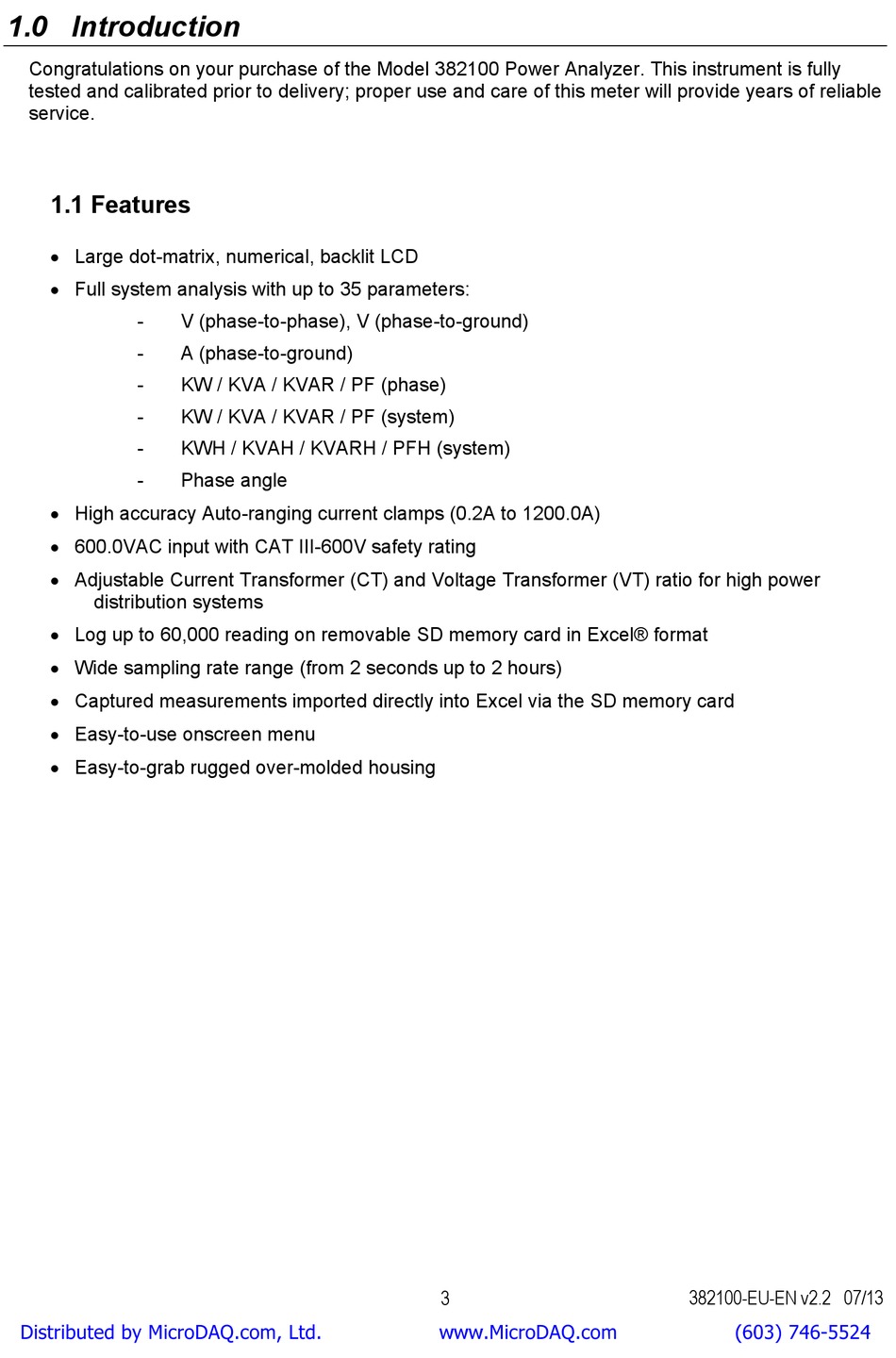

1.0 Introduction

Congratulations on your purchase of the Model 382100 Power Analyzer. This instrument is fully
tested and calibrated prior to delivery; proper use and care of this meter will provide years of reliable
service.

1.1 Features

 Large dot-matrix, numerical, backlit LCD
 Full system analysis with up to 35 parameters:
-
-
-
-
-
-
 High accuracy Auto-ranging current clamps (0.2A to 1200.0A)
 600.0VAC input with CAT III-600V safety rating
 Adjustable Current Transformer (CT) and Voltage Transformer (VT) ratio for high power
distribution systems
 Log up to 60,000 reading on removable SD memory card in Excel® format
 Wide sampling rate range (from 2 seconds up to 2 hours)
 Captured measurements imported directly into Excel via the SD memory card
 Easy-to-use onscreen menu
 Easy-to-grab rugged over-molded housing
Distributed by MicroDAQ.com, Ltd.
V (phase-to-phase), V (phase-to-ground)
A (phase-to-ground)
KW / KVA / KVAR / PF (phase)
KW / KVA / KVAR / PF (system)
KWH / KVAH / KVARH / PFH (system)
Phase angle
