3.0 Meter Description

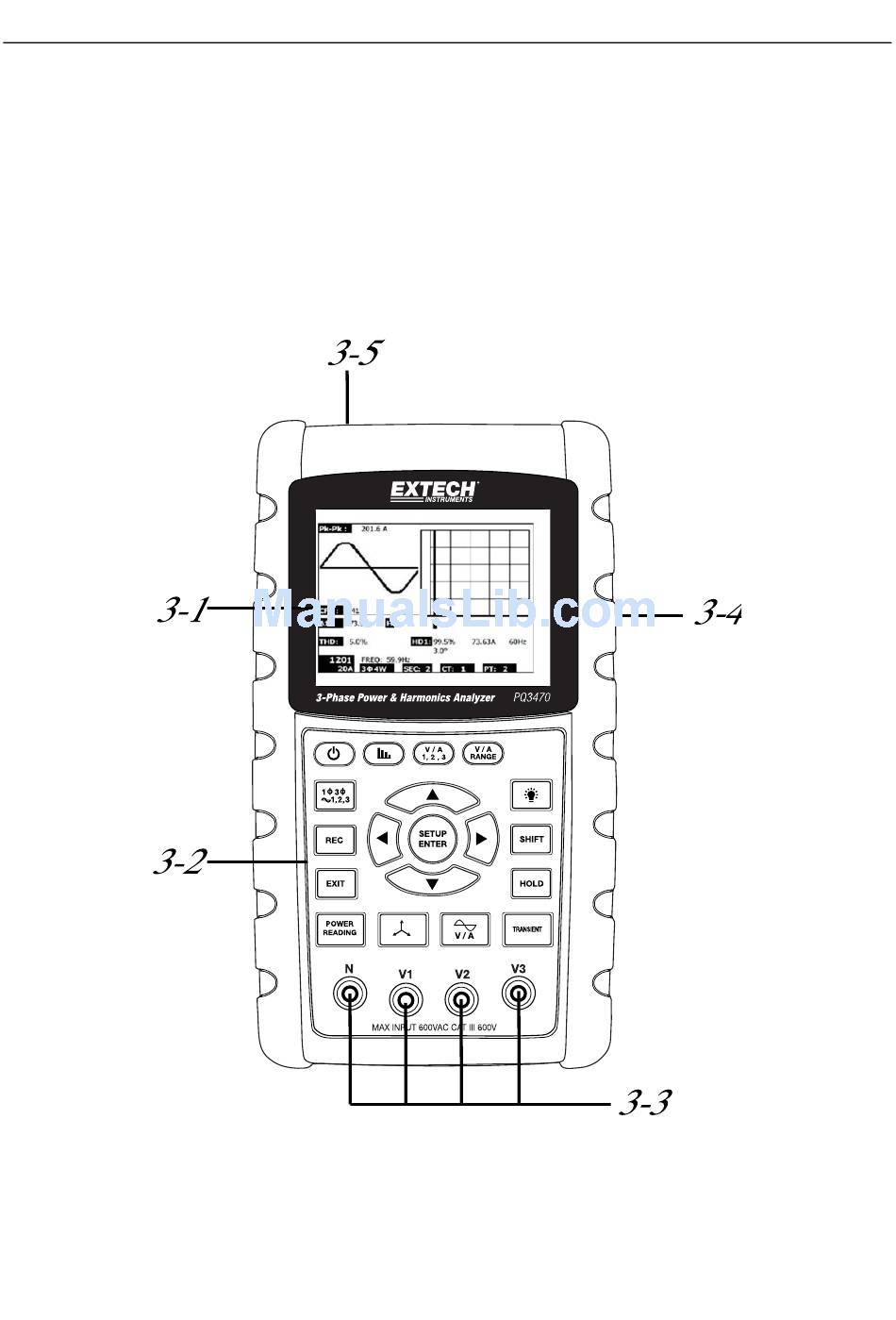

Meter Front, Top, and Right Side
3-1 LCD Display
3-2 Keypad (broken out below)
3-3 Measurement input terminals
3-4 SD CARD slot, RS232 jack,
AC adaptor jack, Reset button (broken out below)
3-5 Clamp Power Output jacks (broken out below)
8
PQ3470-en-GB_V1.9 10/15
