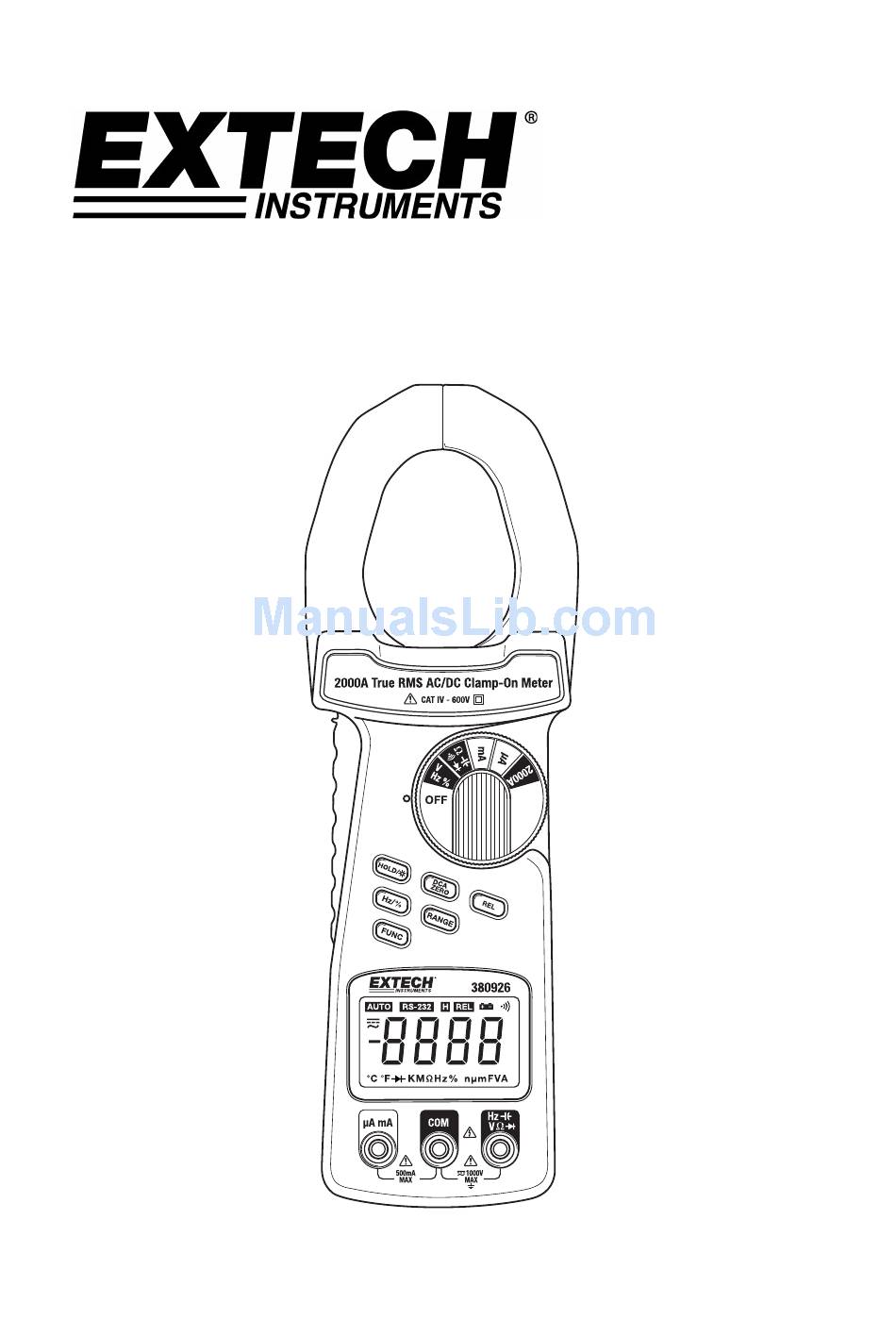

- Page 1 User's Manual 2000A Auto Ranging True RMS Clamp + DMM MODEL 380926...
-
Page 2: Safety Symbols

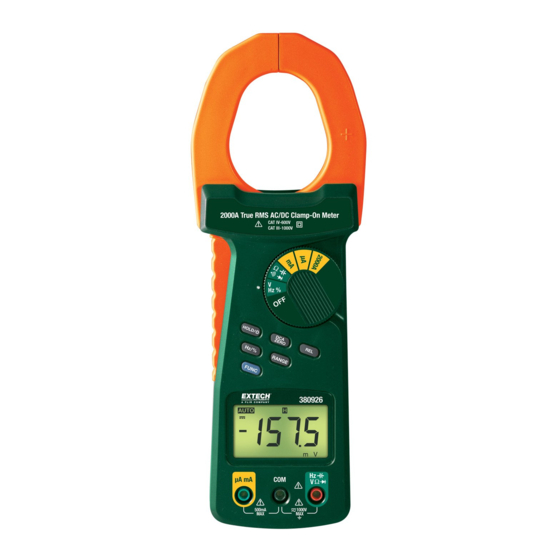

INTRODUCTION Congratulations on your purchase of Extech’s 380926 Clamp meter + Digital MultiMeter. This meter can measure to 2000A through the clamp and also measure to 400mA through the test leads. With Capacitance, Diode and Duty Cycle measurements, this meter provides the user with a full featured multimeter combined with the high amperage current clamp. -
Page 3: Meter Description
Auto range Diode Display Backlight Units mV, V millivolt, volt (voltage) Ω, kΩ, MΩ ohm, kilohm, megohm (resistance) percent (duty cycle) μA, mA, A microamps, milliamps, amps (current) Hz, kHz hertz, kilohertz (frequency) nF, μF nanofarad, microfarad (capacitance) 380926 4.1 07/07... -
Page 4: Operating Instructions
Break the circuit under test (put the meter in series with circuit under test) refer to diagram. Read the measured value from the LCD display. NOTE: The maximum reading for direct input current is 240mA AC/DC. µA and mA Current 380926 4.1 07/07... -
Page 5: Voltage Measurements, Dc/Ac
Connect the test lead tips to the device to be measured (refer to diagram for resistance measurements above). Read the measured value from the LCD display. If the resistance is < 10Ω approx. an audible signal will be heard. 380926 4.1 07/07... -
Page 6: Diode Test
Connect the tips of the test leads to the device to be measured (see diagram). Read the capacitance value on the display. NOTE: When making very low capacitance measurements, use the REL function to zero any stray capacitance. 380926 4.1 07/07... -
Page 7: Maintenance
To replace the fuse, open the meter case by removing the battery cover and battery and then the four screws holding the rear case. The fuse is located on the Main PCB. Replace fuse and secure meter case. 380926 4.1 07/07... -
Page 8: Specifications
1 reading every 0.35 seconds approx. Standards CE, IEC 1010-1 CAT IV 600V Operating Temperature/Humidity 32 to 122 F (0 C to 50 C) / <80% Dimensions 10 x 2.9 x 1.5” (255 x 73 x 38mm) Weight 0.85 lbs. (380g) 380926 4.1 07/07... - Page 9 Maximum Rated Input Limits Function Maximum Rated Input Limits AC/DC Current 500mA AC/DC (fused) AC Voltage 1000 VAC/DC DC Voltage 1000 VAC/DC Resistance 400 VAC/DC Frequency 1000 VAC/DC Capacitance 400 VAC/DC Duty Cycle 1000 VAC/DC Diode Test 400 VAC/DC 380926 4.1 07/07...
-
Page 10: Warranty
Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
