TP-Link Archer CR700 User Manual

Ac1750 wireless dual band docsis 3.0 cable modem router
Hide thumbs Also See for Archer CR700:
Table of Contents

Advertisement

Quick Links

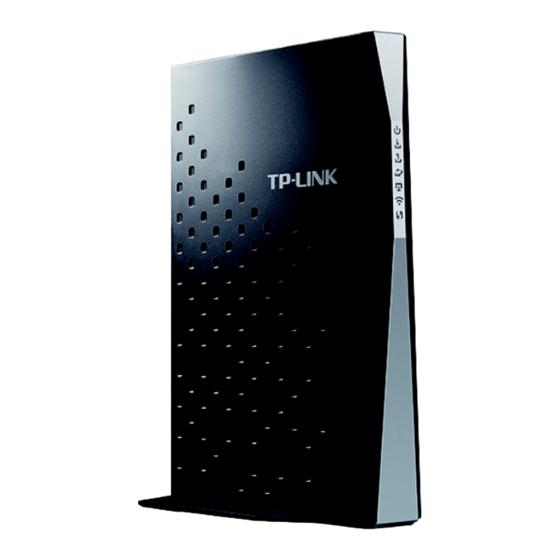

Archer CR700
AC1750 Wireless Dual Band DOCSIS 3.0 Cable
Modem Router
Rev: 1.0.0
1910011153

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Archer CR700 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link Archer CR700

Summary of Contents for TP-Link Archer CR700

  • Page 1 Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router Rev: 1.0.0 1910011153...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Industry Canada Statement

    (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité...

  • Page 5: Declaration Of Conformity

    DECLARATION OF CONFORMITY For the following equipment: Product Description: AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router Model No.: Archer CR700 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 6: Table Of Contents

    CONTENTS Package Contents ........................ 1 Chapter 1. Product Overview .................... 2 1.1 Overview of the Modem Router ..................2 1.2 Main Features ........................2 1.3 Panel Layout........................4 1.3.1 The Front Panel ......................4 1.3.2 The Back Panel ......................6 Chapter 2. Connecting the Modem Router ..............7 2.1 System Requirements .......................7 2.2 Installation Environment Requirements ................7 2.3 Connecting the Modem Router ..................7...
  • Page 7 5.4 Wireless 2.4G ........................37 5.4.1 Basic Settings......................37 5.4.2 Primary Network ......................38 5.4.3 Guest Net work ......................43 5.4.4 MAC Filtering......................44 5.4.5 Wireless Bridging ....................... 46 5.4.6 Wireless Advanced ....................47 5.5 Wireless 5G ........................48 5.5.1 Basic Settings......................48 5.5.2 Primary Network ......................
  • Page 8 5.10.5 Time Settings ......................86 5.10.6 Backup & Restore..................... 87 5.10.7 Administrator ......................88 5.10.8 E vent Log......................... 90 Appendix A: Specifications ..................... 91 Appendix B: Troubleshooting..................95 Appendix C: Technical Support ..................98...

  • Page 9: Package Contents

    The following contents should be found in your package: One Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router  One Power Adapter for Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable  Modem Router Quick Installation Guide ...

  • Page 10: Chapter 1. Product Overview

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Chapter 1. Product Overview Thank you for choosing the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router. Overview of the Modem Router The Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router integrates DOCSIS 3.0 modem, NAT router, 4-port switch and wireless access point in one device provides a...
  • Page 11 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Guest Network Access provides secure Wi-Fi access for guests sharing your home or office  network IPv6 supported, meeting the demands for the next generation of Internet ...

  • Page 12: Panel Layout

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 1.3 Panel Layout 1.3.1 The Front Panel Figure 1-1 The modem router’s LEDs are located on the side panel (View from top to bottom). They indicate the device’s working status. For details, please refer to LED Explanation.
  • Page 13 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Green The modem router is synchronized with more than one channel. White The modem router is synchronized with one channel. Flashing The modem router is scanning for downstream channels.

  • Page 14: The Back Panel

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 1.3.2 The Back Panel Figure 1-2 RESET: There are two ways to reset the modem router's factory defaults.  Method one: With the modem router powered on, use a pin to press and hold the Reset button for at least 8-10 seconds.

  • Page 15: Chapter 2. Connecting The Modem Router

    Step 5: Contact your ISP (Comcast, Time Warner Cable, COX, Charter, Cablevision and so on) to activate the Archer CR700. During activation, you will need your account information, the serial number and MAC address which can be found on the product label of the...
  • Page 16  Note: If the Internet is not accessible, contact your ISP and make sure that the Archer CR700 is activated. For additional and more advanced configuration, log in to the web-based management at tplinkmodem.net or 192.168.1.1, and enter admin (all lowercase) for both username and...
  • Page 17 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 2-1 Safety Information The product should be connected to cable distribution system that grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93 - Grounding of...

  • Page 18: Chapter 3. Configure The Modem Router

    AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Chapter 3. Configure the Modem Router With a Web-based management page, it is easy to configure and manage the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router. The Web-based management page can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

  • Page 19: Chapter 4. Basic

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Chapter 4. Basic Network Map a dashboard that lets you see the status of your Internet connection Network Map provides and network at a glance. You can click any of the eight sections of the dashboard to view the etail information.
  • Page 20 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-2 Dynamic IP Choose Dynamic IP in the drop-down list, the modem router will be able to obtain IP network information dynamically from a DHCP server provided by your ISP.
  • Page 21 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The  Route will use this DNS Server for priority. Click the Apply button to save the settings.

  • Page 22: Wireless

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-6 Username/Password - Enter the Username and Password provided by your ISP. These  fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

  • Page 23: Guest Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-7 Enable Wireless Radio – Check the box to enable the Wireless Radio.  Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz/5GHz wireless network.
  • Page 24 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-8 2.4GHz - If Enable Wireless Radio is selected, please complete the following parameters.  Figure 4-9 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it ...

  • Page 25: Usb Settings

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5GHz - If Enable Wireless Radio is selected, please complete the following parameters.  Figure 4-10 Network Name(SSID) - Create a name for the guest network. When setting up a Guest ...
  • Page 26 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-11 Disk Settings: Scan - Click the button to display the information of the USB storage device connected to the  modem router. Volume - The volume name of the USB drive the users have access to.
  • Page 27 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Before removing the USB storage device, you should click “ Safely Remove” to make sure that all your data have been saved completely. Removing device directly may cause your USB storage device crashed.

  • Page 28: Print Server

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Select the checkboxes in Figure 4-13.according to your needs. Enable Authentication - If this checkbox is selected, then the folder sharing is need  authentication. Write Access - If this checkbox is selected, then the sharing folder is allowed write ...
  • Page 29 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 4-15 Parental Control: Enable Parental Control - The switch for the parental control. If turn on the switch, the field  will become green. Devices Under Parental Control: Add - You can add a new device for the parental control by clicking this button.
  • Page 30 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,  you can click the icon. To add a new entry, please follow the steps below.
  • Page 31 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide White List Mode - Only the web entered within the White List will be allowed. Check the box  to enable this mode. You’d like to click Add a new keyword button and input the net addresses which the child is allowed to access.

  • Page 32: Chapter 5. Advanced

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Chapter 5. Advanced Status Choose menu “Advanced→Status”, you can see the current status information about the modem router. Figure 5-1 Operation Mode Choose menu “Advanced→Operation Mode”, and you will see the screen as shown in Figure 5-2.Select your desired mode and then click Save.

  • Page 33: Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide  Router Mode - The device enables multi-users to share Internet via cable using its Cable port and share it wirelessly at 450Mbps wireless speeds over the crystal clear 5GHz band and 1300Mbps over the 2.4GHz band.
  • Page 34 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-4 Connection Status: Connection Type – Display the connection type for WAN.  IP/MAC Address - This field displays the current IP/MAC address of the Internet port.
  • Page 35 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide ReConnect –Click the ReConnect button to renew WAN lease, then the Note Dialog will  appear. You can click the OK button to disconnect immediately. Connection settings: There are four different connection types, Dynamic IP, Static IP, L2TP(Dynamic IP) and L2TP(Static).
  • Page 36 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-6 Current used MAC Address - This field displays the current MAC address of the Internet  port. MAC Clone - You can select one of below methods to change MAC address for this WAN ...
  • Page 37 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-7 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.  Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, ...
  • Page 38 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-8 User name/Password - Enter the Username and Password provided by your ISP. These  fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
  • Page 39 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-9 User name/Password - Enter the Username and Password provided by your ISP. These  fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

  • Page 40: Lan Settings

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.3.2 LAN Settings Choose “AdvancedNetworkLAN Settings” menu, and you will see the LAN screen shown below. Please configure the parameters for LAN ports according to the descriptions below.

  • Page 41: Ipv6 Lan Settings

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide  End IP Address - Enter a value for the DHCP server to end with when issuing IP addresses.  Leased Time - The Leased Time is the amount of time in which a network user will be allowed connection to the modem router with their current dynamic IP address.
  • Page 42 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-11 IPv6 LAN Settings: IPv6 Address - Display the modem router’s local IPv6 Address.  IPv6 Prefix – Display the IPv6 prefix address.   System Delegated Prefix – You can also enter the prefix address used for the tunnel after select the User Defined prefix checkbox.

  • Page 43: Dynamic Dns

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide LAN Delegated Prefix – Display the LAN prefix address.   Start address - Enter a value for the DHCPv6 server to start with when issuing IP addresses.

  • Page 44: Advanced Routing

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide DDNS Service - The service provider of DDNS. In this field you could select Disabled,  dyn.com/dns/ www.noip.com . If you have selected dyn.com/dns/ www.noip.com , you need to sign up for DDNS service providers.

  • Page 45: Wireless 2.4G

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Wireless 2.4G Choose menu “Advanced→Wireless 2.4G”, you will see six submenus under the Wireless menu: Basic Settings, Primary Network, Guest Network, MAC Filtering, Wireless Bridging and Wireless Advanced. Click any of them, and you will be able to configure the corresponding function.

  • Page 46: Primary Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Mode – Select the desired mode.  11bgn mixed: Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. 11gn mixed: Select if you are using both 802.11g and 802.11n wireless clients.
  • Page 47 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-15 2.4GHz Primary Network: Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz wireless network. The  default SSID is set to be TP-LINK_XXXX.
  • Page 48 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default  setting is AES. Wireless Password – You can enter ASCII characters between 8 and 63 characters or 8 to ...
  • Page 49 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide You cannot connect other device to this modem router by entering the router’s PIN on your client device if you haven’t switch on Enable Router’s PIN. WPS Wizard: Enable WPS - The switch for the WPS.
  • Page 50 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-16 Figure 5-17 Step 2: Press and hold the WPS button of the client device directly. Step 3: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

  • Page 51: Guest Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide  Note: The WPS LED on the modem router will light green for five minutes if the device has been successfully added to the network. The WPS function cannot be configured if the Enable Router’s PIN switch is off. Please make sure the Enable Router’s PIN switch is on before configuring the WPS.

  • Page 52: Mac Filtering

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide The default name is TP-LINK_Guest_2.4GHz. If you want to hide the guest network from the Wi-Fi network, check the Hide SSID. Security - It’s strongly recommended to select WPA/WPA2 Personal. If you do not want to ...
  • Page 53 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Enable MAC Filtering- The switch for the MAC Filtering. If you turn on this button, the field  will become green and you can filter wireless users by MAC Address.

  • Page 54: Wireless Bridging

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Enter the MAC address 00-1D-0F-11-22-33/00-0A-EB-00-07-5F in the MAC Address field. Click the OK button. The filtering rules that configured should be similar to the following figure: Figure 5-22 Wireless Stations Online: MAC Address - The MAC address of the wireless station online.

  • Page 55: Wireless Advanced

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide WDS Bridging - With this function, the modem router can bridge more WLANs. If you check  the Enable WDS, you can click the Scan AP button to scan the nearby wireless access points.

  • Page 56: Wireless 5G

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Short GI - This function is recommended for it will increase the data capacity by reducing the  guard interval time Short GI is enabled by default. Enable WMM – Check the box to enable this function. WMM function can guarantee the ...

  • Page 57: Primary Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-25 Wireless Radio – Check the box to enable the Wireless Radio.  Power – Here you can specify the transmit power of the modem router. You can select 25%, ...
  • Page 58 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-26 2.4GHz Primary Network: Wireless Radio – Check the box to enable the Wireless Radio.  Name (SSID) – Create a name (up to 32 characters) for your 5GHz wireless network. The ...
  • Page 59 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Version –You can choose the version of the WPA-PSK/WPA2-PSK security by selecting  Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK. Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default ...
  • Page 60 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide  Note: You cannot connect other device to this modem router by entering the router’s PIN on your client device if you haven’t switch on Enable Router’s PIN.
  • Page 61 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-27 Figure 5-28 Step 6: Press and hold the WPS button of the client device directly. Step 7: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

  • Page 62: Guest Network

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-29 Step 4: “Device has been added successfully!” will appear on the screen, which means the client device has successfully connected to the modem router.  Note: The WPS LED on the modem router will light green for five minutes if the device has been successfully added to the network.
  • Page 63 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-30 Settings: See each other - If Allow guests to see each other is selected, anyone who connects to the  guest network can access each other.

  • Page 64: Mac Filtering

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.5.4 MAC Filtering Choose menu “Advanced → Wireless 5GHz → MAC Filtering”, you can control the wireless access by configuring the MAC Filtering function. Figure 5-31 5GHz Access Control: Wireless Interface - Select an available wireless interface from the drop-down list.
  • Page 65 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Modify - Click the icon to delete this entry.  To add a MAC Address Filtering entry: Click Add button, then you will see a setting page. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC...

  • Page 66: Wireless Bridging

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-33 Wireless Stations Online: MAC Address - The MAC address of the wireless station online.  Age(s) – Display the duration time of wireless station online. ...

  • Page 67: Wireless Advanced

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide WDS Bridging - With this function, the modem router can bridge more WLANs. If you check  the Enable WDS, you can click the Scan AP button to scan the nearby wireless access points.

  • Page 68: Nat Forwarding

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Short GI - This function is recommended for it will increase the data capacity by reducing the  guard interval time Short GI is enabled by default. Enable WMM – Check the box to enable this function. WMM function can guarantee the ...
  • Page 69 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-37 IP Filtering: Start/End IP Address –Display the start IP Address/end IP Address of the client that cannot  access this router. Enable - Click the icon to enable the function. If this function has taken effect, the icon ...

  • Page 70: Mac Filtering

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.6.2 MAC Filtering Choose menu “Advanced  NAT Forwarding  MAC Filtering”, and then then you can control the client’s access by configuring the MAC Filtering function. Figure 5-39...

  • Page 71: Port Filtering

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.6.3 Port Filtering Choose menu “Advanced  NAT Forwarding  Port Filtering”, and then you can control the client’s access by configuring the Port Filtering function. Figure 5-41...

  • Page 72: Port Forwarding

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-42 Click the OK button to save this entry. If you do not want to save this entry, click the Cancel button. 5.6.4 Port Forwarding Choose menu “Advanced  NAT Forwarding  Port Forwarding”, and then you will see the screen as shown below.

  • Page 73: Port Triggers

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Enable – Click the icon to enable the function. If this function has taken effect, the icon  will become Modify – Click the icon to edit the corresponding entry. If you want to delete this entry, ...
  • Page 74 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Internet games, video conferencing, Internet telephoning and so on. Port Triggering is used for some of these applications that cannot work with a pure NAT modem router. Figure 5-44 Triggering Start/End Port - The start port/end port for outgoing traffic.
  • Page 75 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-45  Note: When the trigger connection is released, the corresponding opened ports will be closed. Each rule can only be used by one host on the LAN at a time. The trigger connection of other hosts on the LAN will be refused.

  • Page 76: Dmz

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.6.6 DMZ Choose menu “Advanced → NAT Forwarding → DMZ”, and then you can view and configure DMZ host in the screen shown below. The DMZ host feature allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing.
  • Page 77 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-47 IPSec Passthrough - Internet Protocol security (IPSec) is a suite of protocols for ensuring  private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services.

  • Page 78: Usb Settings

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide SIP ALG Enable- To allow SIP clients and servers to transfer data across NAT, turn on the  switch. Click Save button to save these settings. PassThrough MAC Address MAC Address –This field displays the MAC address which is allowed to pass through the...

  • Page 79: Folder Sharing

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-49 Click the Scan button to scan the USB drive connected to the router. Volume - The volume name of the USB drive the users have access to.
  • Page 80 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-50 Sharing Account Account – You can select Use Default Account or Use Custom Account to log in sharing  Folders.
  • Page 81 Windows computer: Select Start > Run. iii. Enter ftp://TP-LINK:21 in the dialog box and click the OK button. FTP (via Internet): This method is disabled by default. If you select this check box, remote users can access the USB drive through FTP over the Internet. This feature supports both downloading and uploading of files.

  • Page 82: Print Server

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-51 Click the Add button and the next screen will pop-up as shown below. Figure 5-52 Select the volume desired to share from the Volume drop-down list. Then click the Browse button to select the folder path.

  • Page 83: Parental Control

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Parental Control Choose menu “Advanced→Parental Control”, and then you can configure the parental control in the screen as shown below. The Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing.
  • Page 84 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Enable – Click the icon to enable the function. If this function has taken effect, the icon  will become Modify – Click the icon to edit the corresponding entry. If you want to delete this entry, ...

  • Page 85: Firewall

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Black List Mode - All webs entered within the Black List will be denied to access. Check the  box to enable this mode. You’d like to click Add a new keyword button and input the net addresses which the child is denied to access.

  • Page 86: Local Log

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-57 Firewall: Firewall Protection - You can select Off, Low, Medium or High which you would like.  Block Fragmented IP Packets - This feature helps protect your private local network from ...

  • Page 87: Remote Log

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-58 Contact Email Address – The modem router can email you its logs. Enter your email  address here. SMTP Server Name - Enter the name of your SMTP sever.
  • Page 88 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-59 Select the Log checkbox to view the corresponding events. Server Address - The specified IP address of the remote system log server.  Click Save button to save these settings.

  • Page 89: System Tools

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.10 System Tools Choose menu “Advanced→System Tools”, you will see eight submenus under the System Tools menu: System Information, Device Information, Connection Status, Diagnostic, Time Settings, Backup & Restore, Administrator and Event Log. Click any of them, and you will be able to configure the corresponding function.

  • Page 90: Device Information

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide 5.10.2 Device Information Choose menu “Advanced→ System Tools→ Device Information”, you can see the current information about the modem router. Figure 5-61 5.10.3 Connection Status Choose menu “Advanced→ System Tools→ Connection Status”, you can see the current...
  • Page 91 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide...

  • Page 92: Diagnostic

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-62 Startup Procedure - Display the initialization progress.  Downstream/Upstream Bonded Channels - Display the status of each channel.  Time Information –The time information will display when the modem router is initialized.
  • Page 93 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-63 Diagnostic tool - There are two tools to diagnose, which is PING and Traceroute. You can  select the corresponding type according to your needs. PING: If you select this option, you could check the status of the Internet connection.

  • Page 94: Time Settings

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide IP Address/ Domain Name – Enter the IP Address or Domain Name you want to  trace. Max Hops – Enter the max number of hops.  Data Size – Enter the size of data you want to use.

  • Page 95: Backup & Restore

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-64 Time Settings: Enable SNTP - The switch for SNTP function. If you turn on the switch, the field will become  green. Current Time – Display the current time.

  • Page 96: Administrator

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-65 Backup: Click the Backup button to save all configuration settings as a backup file in your local computer. Restore: To restore the modem router's configuration, follow these instructions.
  • Page 97 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Figure 5-66 Account Management: Here you can set the account user information about Old Password, New Password and Confirm Password. It is strongly recommended that you should change the factory default user name and password of the router, because all users who try to access the router's Web-based utility or Quick Setup will be prompted for the router's default user name and password.

  • Page 98: Event Log

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide  Note: To access the router, you should type your router's WAN IP address into your browser's address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number.

  • Page 99: Appendix A: Specifications

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Appendix A: Specifications HARDWARE FEATURES 1 F-Connector, female 75 Ω Interface 4 10/100/1000Mbps RJ45 LAN Ports 2 USB 2.0 Ports 1 Power On/Off Button 1 Wi-Fi On/Off Button...
  • Page 100 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide HARDWARE FEATURES Frequency Plan DOCSIS Annex B Symbol Rate DOCSIS 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s –15 to 15 dBmV (DOCSIS) Operating Level Range Security DOCSIS 3.0 Security (BPI+, EAE, SSD)
  • Page 101 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide WIRELESS FEATURES IEEE 802.11ac/n/a 5GHz Wireless Standards IEEE 802.11b/g/n 2.4GHz 5GHz: Up to 1300Mbps Wireless Speeds 2.4GHz: Up to 450Mbps Frequency 2.4GHz and 5GHz EIRP <20dBm(EIRP) Wireless Functions...
  • Page 102 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide SOFTWARE FEATURES Web Based Configuration(HTTP), Command Line Interface; Management Remote management, SSL for TR-069, SNMP v1/v2c/v3; Diagnostic Tools Parental Control, Network Address Translation (NAT); Advanced Features RIP v1/v2(optional);...

  • Page 103: Appendix B: Troubleshooting

    For the default wireless password: 1) The default Wireless Password/PIN is printed on the product label of the Archer CR700. 2) If the default wireless password has been changed, log in to the web management page and go to Basic >...
  • Page 104 Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide For Windows XP Click “Start -> Control Panel -> Network and Internet Connections -> Network  Connections”. Right-click Wireless Network Connection (or Local Area Connection), and then click ...
  • Page 105 Contact your ISP to make sure the modem router is activated. Contact our Technical Support if the problem persists.  Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support...

  • Page 106: Appendix C: Technical Support

    Archer CR700 AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide Appendix C: Technical Support Technical Support  For more troubleshooting help, go to: http://www.tp-link.com/en/support/faq  To download the latest Firmware, Driver, Utility and User Guide, go to: http://www.tp-link.com/en/support/download ...
