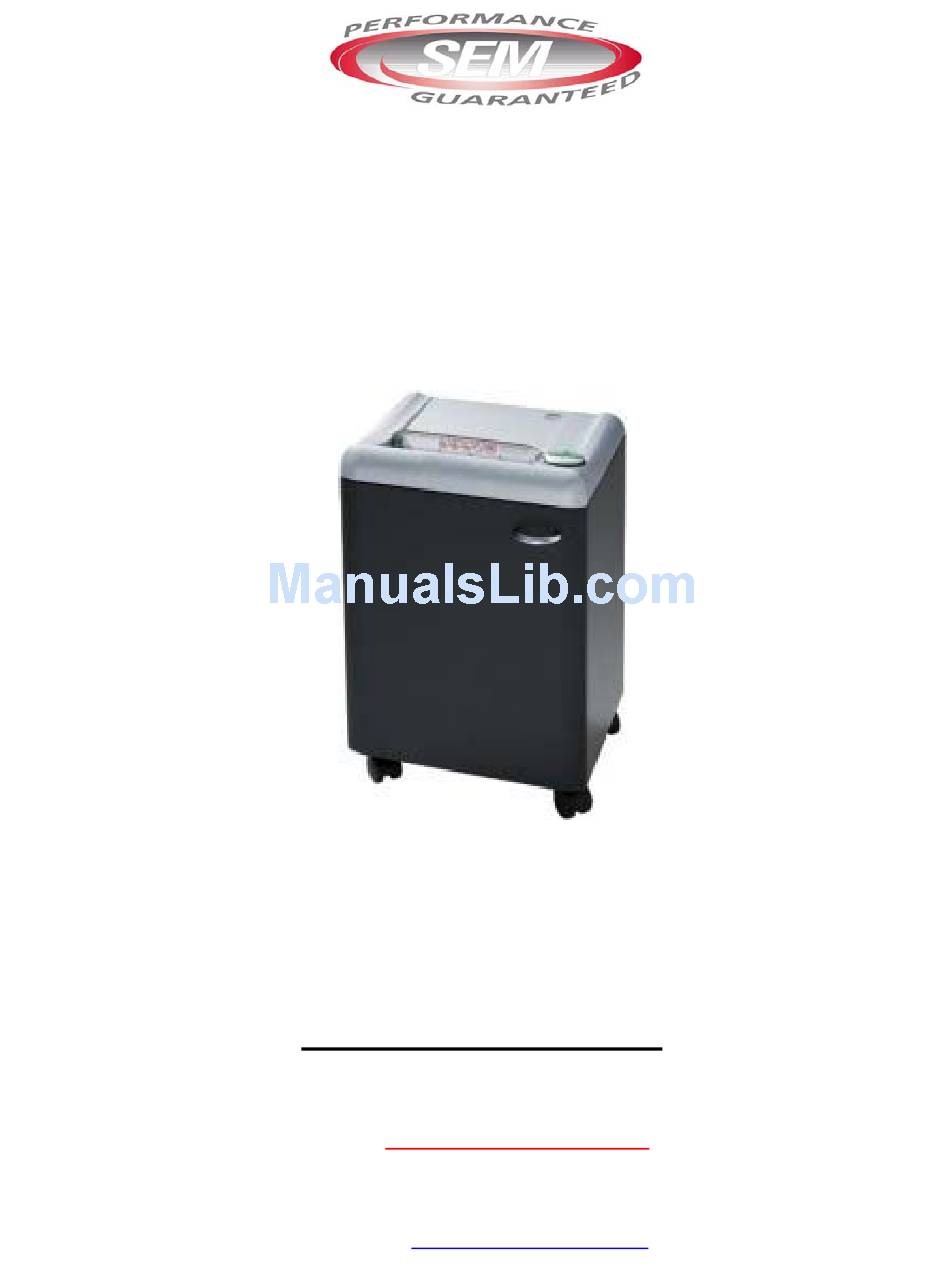

- Page 1 Security Engineered Machinery Co., Inc. OPERATIONAL & Maintenance Manual SEM Model 1324C/3 Shredder Rev. 1 As of January 1, 2008 Security Engineered Machinery Co., Inc NATIONWIDE SERVICE Phone Toll Free 1(800)225-9293 Service@SEMSHRED.com Email: Fax: (508)366-6814 WWW.SEMSHRED.com Website:...
-
Page 2: Table Of Contents
INDEX Safety Precautions…………………………………………………………………………2-7 Installation……………………………………………………………………………………8 Operation………………………………………………………………………………..10-12 Maintenance……………………………………………………………………………..….13 Troubleshooting……………………………………………………………………..….14-17 Accessories………………………………………………………………………………..18 Technical Information……………………………………………………………………...19 Parts List (Back of Manual) For NATIONWIDE SERVICE Call 1(800)225-9293... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Bitte lessen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. GB Please read these operating instructions before putting the machine into operation and observe the safety precautions. The operating Instructions must always be available. - Page 4 Prosím přečtěte si instrukce k obsluze a dodržujte bezpečnostní Upozornění. Návod k obsluze musí být vzdy dostupný. P Por fasvor leiam o manual de instruções antes de colocar a máquina em Operação e vejam as precauções de segurança. As instruções de operação deverão estar sempre disponíveis.
- Page 5 Vorsicht bei langen Haaren! Long hair can become entangled in cutting head! Attention aux cheveux longs! Pas opmet lang haar! Capelli lunghi possono entrare nella testa di taglio! Tener cuidado con el cabello largo puede enredarse en el cabezal de corte! Undvik långt hår I närheten av skärverket! Varokaa pitkien hiusten joutumista teräpakkaan! Vær forsiktig med langt hår i nærheten av skæreverket!
- Page 6 Vorsicht bei Schmuck! Be careful of loose jewellery! Attention au port de bijoux! Let op met halskettingen en andere juwelen! Attenzion ai gioielli! Tener cuidado con las joyas! Var aktsam med lost hängande smycken! Varokaa korujen joutumista teräpakkaan! Vær forsiktig med løsthengende smykker! Ostrożnie z biżuteria! Будьте...
- Page 7 The door must be closed when operating the document shredder! Ensure free access to mains. When not in use for a longer period of time switch off. For NATIONWIDE SERVICE Call 1(800)225-9293...
- Page 8 Remove the plug before cleaning the machine. Do not operate the machine without the safety flap. → → Quick stop Open the door. ON/OFF For NATIONWIDE SERVICE Call 1(800)225-9293...
-
Page 9: Installation
INSTALLATION Open the door and put the machine onto the cabinet so that the control panel is facing the door. Beware of fingers. Close the door. Plug into the wall socket. For NATIONWIDE SERVICE Call 1(800)225-9293... -
Page 10: Operation
OPERATION Press the rocker switch : green light is on, the machine is now ready for operation. Starts automatically when paper is inserted. Stops automatically when no further paper is inserted. Stops automatically when door is opened symbols flash alternatively. For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 11 Stops automatically when plastic bag is full. Empty the bag when “bag full” indicator lights (see page8). Stops automatically if too much paper is inserted. Automatic reverse if paper jams (Symbol “ON/OFF” flashes). If required: Press the rocker switch “R” and remove paper. Machine runs for a short time in reverse, if required repeat several times).
- Page 12 Reset by pressing the rocker switch . Re-feed the paper in smaller quantities. Automatic stop if safety flap (A) is opened (symbols flash alternatively). Close the safety flap and press the rocker switch , paper is shredded. To remove any paper debris from paper jam the machine runs for a short time reverse with open safety flap.
-
Page 13: Maintenance
MAINTENANCE 649OIL8 If the sheet capacity reduces or after the bag is emptied we recommend that you oil the shredding mechanism! (see picture). For NATIONWIDE SERVICE Call 1(800)225-9293... -
Page 14: Troubleshooting
TROUBLESHOOTING Machine will not start Is the machine plugged in? Is the rocker switch pressed? Is the green light rocker switch is ON (1)? Insert paper (2). For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 15 Feed the paper into the center of the feed opening (photo cell). Is the door open? Is plastic bag full? For NATIONWIDE SERVICE Call 1(800)225-9293...
- Page 16 Is the safety flap open? Machine will not stop: Remove plug, clean the photo cell (A) with a small brush. Machine Stops: Overload protection. Cooling down period approximately 10-15 minutes. ϖ Symbols and “R” flash alternatively. ϖ Symbol lights green, machine is ready for operation.
- Page 17 None of the above methods mentioned helped to solve the problem: Contact Customer Service at: Security Engineered Machinery 5 Walkup Dr PO Box PO Box 1045 Westboro, MA 01581 Tel: 800/225-9293 Tel: 508/366-1488 Fax: 508/366-1671 Email: info@semshred.com For NATIONWIDE SERVICE Call 1(800)225-9293...
-
Page 18: Accessories
ACCESSORIES Oil is environmentally friendly. Spare replacement plastic bags. For NATIONWIDE SERVICE Call 1(800)225-9293... -
Page 19: Technical Information
TECHNICAL INFORMATION Do not shred paper clips The machine is approved by independent Safety laboratories and is in compliance with the EC-regulations 98/37/EG, 2006/95/EG and 2004/108/EG. Sound level information: The sound level at the work place is less than the than the ISO 7779 standard’s maximum permissible level of<70db (A).
