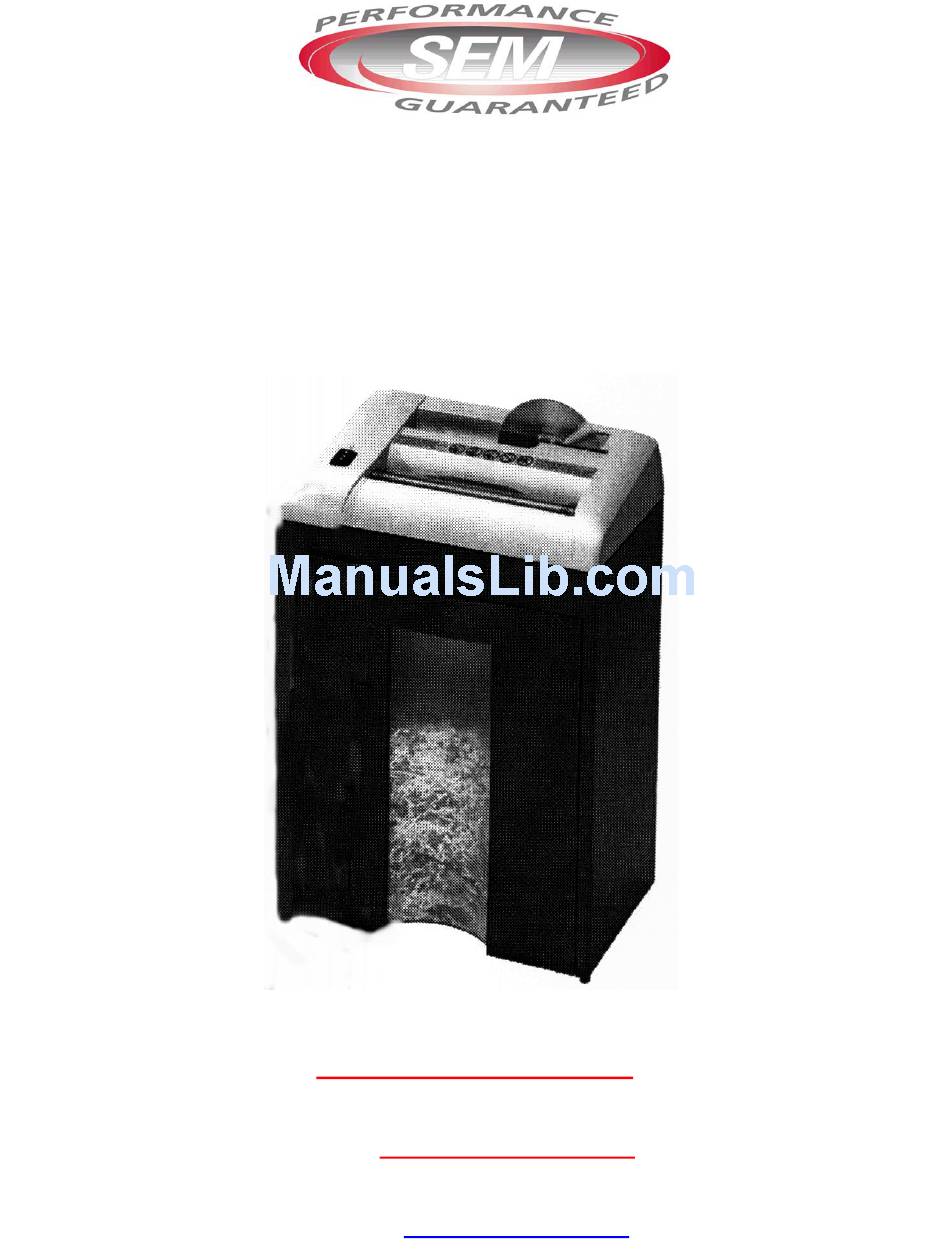

Security Engineered Machinery Co., Inc
OPERATIONAL & MAINTENANCE MANUAL
SEM Model 1125P/CD Shredder
REV: 0
Security Engineered Machinery Co., Inc
NATIONWIDE SERVICE
Phone Toll Free 1(800)225-9293
Email:
Service@SEMSHRED.COM
Fax: (508)366-6814
Website:
WWW.SEMSHRED.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1125P and is the answer not in the manual?

Questions and answers

Related Manuals for SEM 1125P

Summary of Contents for SEM 1125P

  • Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL SEM Model 1125P/CD Shredder REV: 0 Security Engineered Machinery Co., Inc NATIONWIDE SERVICE Phone Toll Free 1(800)225-9293 Email: Service@SEMSHRED.COM Fax: (508)366-6814 Website: WWW.SEMSHRED.com...

  • Page 2: Safety Procedures

    ***IMPORTANT SAFETY PROCEDURES*** Your new paper shredder incorporates powerful, heavy duty cutting mechanisms, serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals that are untrained or incapable of understanding these safety precautions! 2.

  • Page 3: Table Of Contents

    Website: www.semshred.com E-mail: info@semshred.com Order On-line: GSA Customers: www.fedshred.com Commercial Customers: www.semshred.com IMPORTANT Two to three preventive maintenance calls per year are recommended Only authorized SEM service personnel should be allowed to service the shredder. For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Remove the plug before cleaning the machine! Do not perform any repairs on document shredder Ensure free access to mains. For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 5 SAFETY PRECAUTIONS Cont… When not in use for a longer time switch off. Do not operate the machine without the safety flap (A) For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 6: Installation And Set-Up

    INSTALLATION Place machine onto the shred bin or cabinet Plug into the wall socket For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 7: Operation And Feeding

    OPERATION Turn the main switch to position”I”. The green control light will light (1) ready for operation. Starts automatically when paper, CD/DVD or credit cards are inserted (2). Stops automatically when no further paper, CD/DVD or credit cards are inserted. Stops automatically if too much paper is inserted (Machine Jams) For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 8 OPERATION Cont… Press reverse button (1) and remove paper (2). Reset by pressing the rocker switch to position “I” (3). Re-feed the paper in smaller quantities (4). CD/DVD: Should CD/DVD cause a jam when being destroyed, press the reverse button “R”. Empty the shred bin when it is full.

  • Page 9: Maintenance And Cleaning

    MAINTENANCE AND CLEANING If the sheet capacity reduces or after the shred bin is emptied oil the shredding mechanism (see picture). From time to time clean the output area of the cutting head. • Disconnect from mains • Remove paper debris with a brush (DANGER OF INJURY) For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 10: Troubleshooting

    TROUBLESHOOTING Machine will not start. Is the machine plugged in? For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 11 TROUBLESHOOTING Cont.. Is machine placed correctly on the shred bin or cabinet? (A) Is shred bin is pushed in? Is the switch in position ”I”? Green LED lamp lights up? (1) Insert paper (2) For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 12 TROUBLESHOOTING Cont.. Feed paper into the center of the feed opening? (Photo Cell) Machine will not stop. Remove plug from main, clean the photo cell (A) with a small brush. Machine stops. Overload protection. Cooling down period approximately 10-15 minutes. For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 13: Troubleshooting

    TROUBLESHOOTING Cont.. Empty the shred bins in sufficient time, at least daily, so that no interference is caused to the cutting heads. If a paper jam, as described on page 7 cannot be corrected, because of an over filled shred bin, the shred bin must be emptied.(See page 8) None of the above mentioned methods helped to solve the problem Contact our...

  • Page 14: Accessories

    RECOMMANDED ACCESSORIES Environmentally Friendly Oil Part # For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 15: Technical Information

    TECHNICAL INFORMATION This machine is approved by independent safety laboratories and is in compliance with the EC regulations 2006-95-EG and 2004-108-EG. Sound Level Information: The sound level at the work place is less than the ISO 7779 standard’s maximum permissible level of <70 db (A) The exact technical specifications can be found on the technical specifications sticker on the machine.

  • Page 16: Parts Breakdown

    PARTS BREAKDOWN For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 17 PARTS BREAKDOWN Cont…. For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 18 PARTS BREAKDOWN Cont…. For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 19 PARTS BREAKDOWN Cont…. For NATIONWIDE SERVICE CALL 1(800)225-9293...
  • Page 20 CONNECTING DIAGRAM For NATIONWIDE SERVICE CALL 1(800)225-9293...

  • Page 21: Wiring Diagram

    WIRING DIAGRAM For NATIONWIDE SERVICE CALL 1(800)225-9293...
