Operation and Maintenance Manual
SEM Model 0100 HDD Crusher
SEM Model 0100 HDD/SSD Crusher
POP-0069 Rev. 5 | Created 8-20-19 – ECN-00493
For service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive • Westborough, MA 01581
service@semshred.com
1-508-366-1488
www.semshred.com
Advertisement
Table of Contents
Related Manuals for SEM 0100
Summary of Contents for SEM 0100

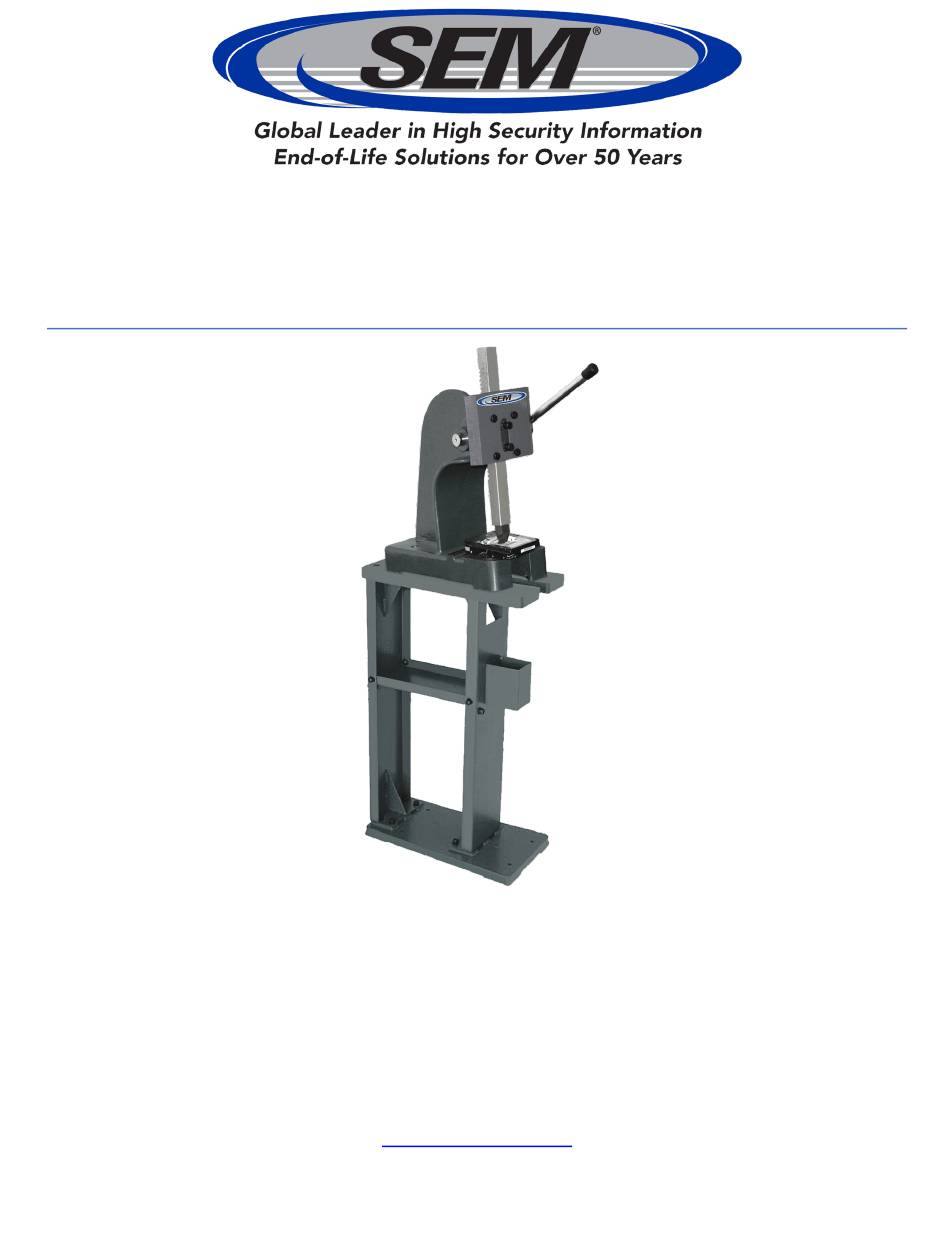

- Page 1 Operation and Maintenance Manual SEM Model 0100 HDD Crusher SEM Model 0100 HDD/SSD Crusher POP-0069 Rev. 5 | Created 8-20-19 – ECN-00493 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com...
-
Page 2: Table Of Contents
Table of Contents 1.) Safety Procedures and Product Specifications ..............3 2.) Parts Breakdown ........................4 2.1 Tools Required ........................4 3.) Installation and Setup ......................5 4.) Operation ..........................7 4.1 Crushing Hard Drives ......................7 4.2 Crushing SSDs (With Optional SSD Kit) ................7 4.3 Crushing DLT Tapes ...................... -
Page 3: Safety Procedures And Product Specifications

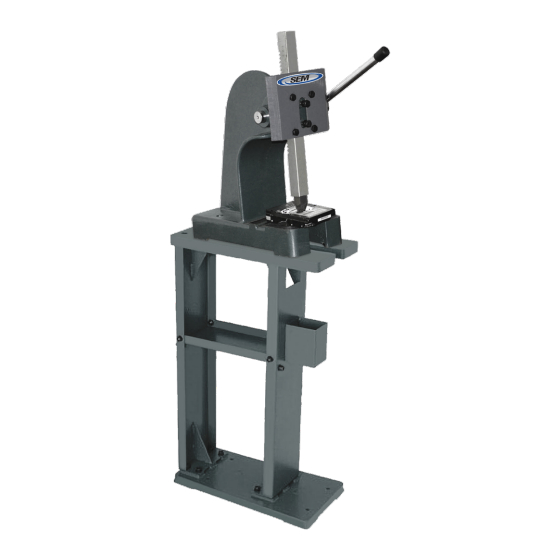

1.) Safety Procedures and Product Specifications Your new SEM Model 0100 hard drive crusher delivers 6,000 pounds of force to a conical punch causing catastrophic trauma to the hard drive chassis while destroying the internal platter. Serious injury may result if proper precautions are not followed. -
Page 4: Parts Breakdown
2.) Parts Breakdown 4, 5, 6 & 7 2 & 3 NUMBER PART NUMBER DESCRIPTION 600HDD0100 Press 850HDCANVIL Anvil MC91074A136 Anvil Lock Washer 851MCHANDLE Handle (Long) 8519753K82 Handle End Cap 851MCHANDLES Handle (Short) 8519753K2A Handle End Cap M10 Set Screw 5mm Hex L-Key 3/8-16 x 4”... -
Page 5: Installation And Setup
30 day requested period, packaging costs will be incurred by the customer. 1) Place the 0100 hard drive crusher on a strong and sturdy surface such as a work table or SEM’s optional heavy duty stand. The Model 0100 hard drive crusher must be bolted down on a work table or SEM’s option heavy duty stand. - Page 6 5) The machine is now ready to operate. Warning: While operating the Model 0100 hard drive crusher, pieces of material will break and can potentially become airborne due to the force. See your internal safety officer and ask about your PPE for area of operation.
-
Page 7: Operation
2) Pull the handle down until it punctures the hard drive. Do not force the handle once it stops. Note: Anvil will not penetrate through the entire hard drive. The Model 0100 hard drive crusher pierces and deforms hard drives to disable the drive. -
Page 8: Change Settings And Maintenance
5.) Change Settings and Maintenance 5.1 Chaniging the Angle of the Handle 1) Remove the handle using the 5mm Hex L-Key. (Figure A) 2) Loosen set screw on shaft collar with M6 Allen wrench then remove. (Figure B) 3) Pull shaft out until the teeth are no longer engaged. (Figure C) Figure A 4) Lift anvil to desired height. -
Page 9: Replacing Or Removing The Anvil
5.2 Replacing or Removing the Anvil 1) Lift handle so anvil is clear of any obstructions. 2) Lock down the center bolts with the jam nuts on them using a 5/8” wrench. 3) Remove anvil using a large adjustable wrench. Do not lose the lock washer on the top of the anvil, as this must be put back on anvil. - Page 10 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com 1-508-366-1488 www.semshred.com Follow us on social media: Facebook: https://www.facebook.com/semshred Twitter: https://twitter.com/semsecure Linkedin: https://www.linkedin.com/company/security-engineered-machinery Youtube: https://www.youtube.com/user/datadestruction 508.366.1488 | www.semshred.com...
