Installation and Operational Manual

SEM Model 1324P & 1324S

Rev. 1

Please read this manual carefully. It will answer all your questions regarding installation, operation and

trouble shooting.

Important:

Be sure to adhere to all safety suggestions listed herein.

Order On-line:

GSA Customers-

www.fedshred.com

Commercial Customers-

www.semshred.com

Table of Contents

Need help?

Do you have a question about the 1324P and is the answer not in the manual?

Questions and answers

Summary of Contents for SEM 1324P

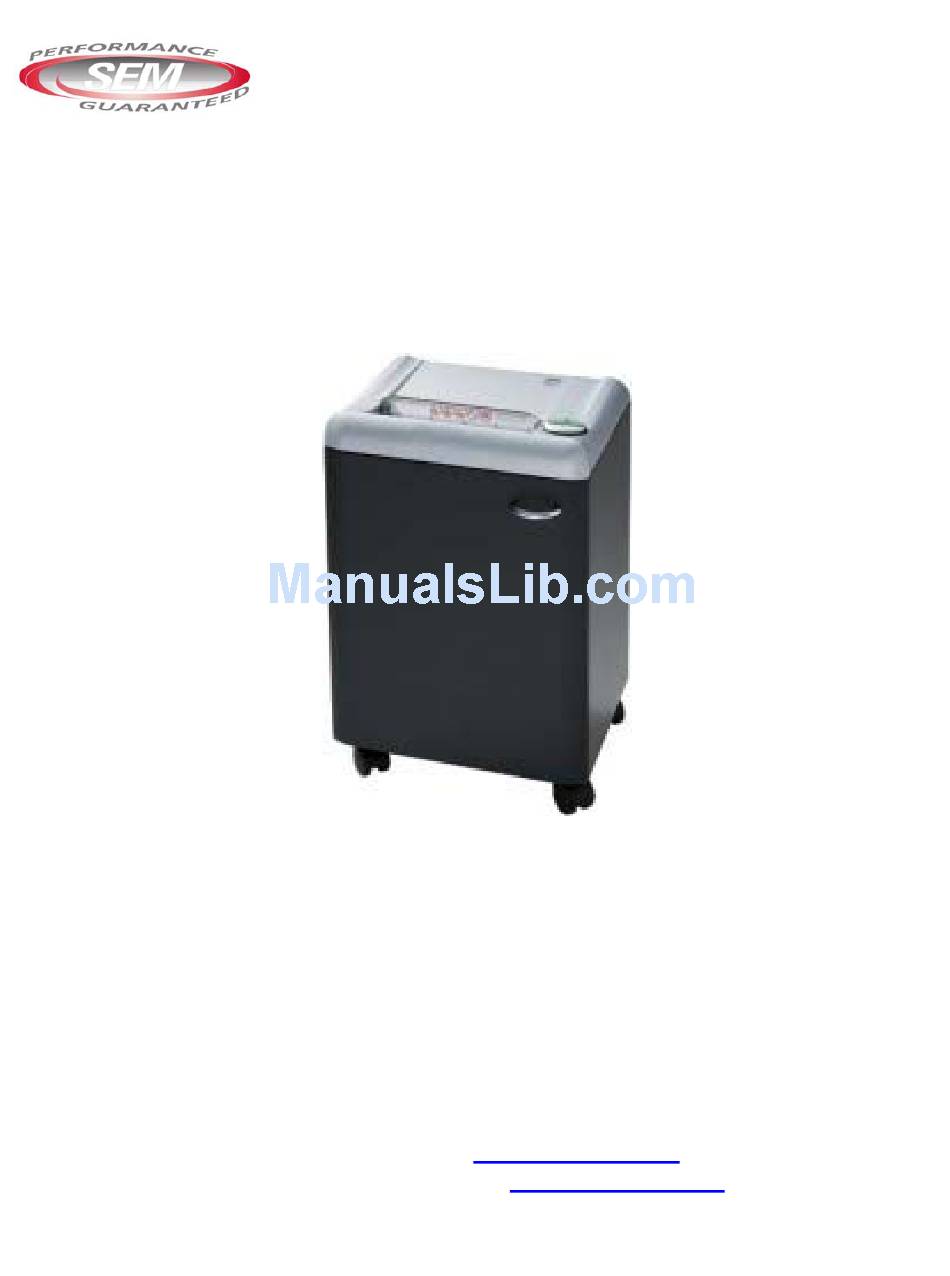

Page 1 SECURITY ENGINEERED MACHINERY The World Leader in Document and Sensitive Waste Destruction Solutions Installation and Operational Manual SEM Model 1324P & 1324S Rev. 1 Please read this manual carefully. It will answer all your questions regarding installation, operation and trouble shooting.
Page 2: Safety Precautions
SAFETY PRECAUTIONS Bitte lessen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. GB Please read these operating instructions before putting the machine into operation and observe the safety precautions. The operating Instructions must always be available.
Page 3 Keine Bedienung Durch Kinder! Children must not operate the machine! Pas ďutiltsation par un enfant! Geen bedizening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! Asentakaa laite lasten ulottumattomiin! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
Page 4 Vorsicht bei langen Haaren! Long hair can become entangled in cutting head! Attention aux cheveux longs! Pas opmet lang haar! Capelli lunghi possono entrare nella testa di taglio! Tener cuidado con el cabello largo puede enredarse en el cabezal de corte! Undvik långt hår I närheten av skärverket! Varokaa pitkien hiusten joutumista teräpakkaan! Vær forsiktig med langt hår i nærheten av skæreverket!
Page 5 Vorsicht bei Schmuck! Be careful of loose jewellery! Attention au port de bijoux! Let op met halskettingen en andere juwelen! Attenzion ai gioielli! Tener cuidado con las joyas! Var aktsam med lost hängande smycken! Varokaa korujen joutumista teräpakkaan! Vær forsiktig med løsthengende smykker! Ostrożnie z biżuteria! Будьте...
Page 6 The door must be closed when operating the document shredder! Ensure free access to mains. When not in use for a longer period of time switch off.
Page 7 Remove the plug before cleaning the machine. Do not operate the machine without the safety flap. → → Quick stop Open the door. ON/OFF...
Page 8: Table Of Contents
INDEX Safety Precautions…………………………………………………………………………2-7 Installation……………………………………………………………………………………9 Operation………………………………………………………………………………..10-12 Maintenance……………………………………………………………………………..….13 Troubleshooting……………………………………………………………………..….14-17 Accessories………………………………………………………………………………..18 Technical Information……………………………………………………………………...19 Parts List (Back of Manual)
Page 9: Installation
INSTALLATION Open the door and put the machine onto the cabinet so that the control panel is facing the door. Beware of fingers. Close the door. Plug into the wall socket.
Page 10: Operation
OPERATION Press the rocker switch : green light is on, the machine is now ready for operation. Starts automatically when paper is inserted. Stops automatically when no further paper is inserted. Stops automatically when door is opened symbols flash alternatively.
Page 11 Stops automatically when plastic bag is full. Empty the bag when “bag full” indicator lights (see page8). Stops automatically if too much paper is inserted. Automatic reverse if paper jams (Symbol “ON/OFF” flashes). required: Press the rocker switch “R” and remove paper. Machine runs for a short time in reverse, if required repeat several times).
Page 12 Reset by pressing the rocker switch . Re-feed the paper in smaller quantities. Automatic stop if safety flap (A) is opened (symbols flash alternatively). Close the safety flap and press the rocker switch , paper is shredded. To remove any paper debris from paper jam the machine runs for a short time reverse with open safety flap.
Page 13: Maintenance
MAINTENANCE 649OIL8 If the sheet capacity reduces or after the bag is emptied we recommend that you oil the shredding mechanism! (see picture).
Page 14: Troubleshooting
TROUBLESHOOTING Machine will not start Is the machine plugged in? Is the rocker switch pressed? Is the green light rocker switch is ON (1)? Insert paper (2).
Page 15 Feed the paper into the center of the feed opening (photo cell). Is the door open? Is plastic bag full?
Page 16 Is the safety flap open? Machine will not stop: Remove plug, clean the photo cell (A) with a small brush. Machine Stops: Overload protection. Cooling down period approximately 10-15 minutes. ϖ Symbols and “R” flash alternatively. ϖ Symbol lights green, machine is ready for operation.
Page 17 None of the above methods mentioned helped to solve the problem: Contact Customer Service at: Security Engineered Machinery 5 Walkup Dr PO Box PO Box 1045 Westboro, MA 01581 Tel: 800/225-9293 Tel: 508/366-1488 Fax: 508/366-6814 Email: info@semshred.com...
Page 18: Accessories
ACCESSORIES Oil is environmentally friendly. Spare replacement plastic bags.
Page 19: Technical Information
Subject to alterations with out notice. EC-declaration of conformity Herewith we declare that the Model 1324S and 1324P complies with the following provisions applying to it 98/37/EG; 2006/95/EG; 2004/108/EG. Applied harmonized standards in particular EN 60950-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN...
