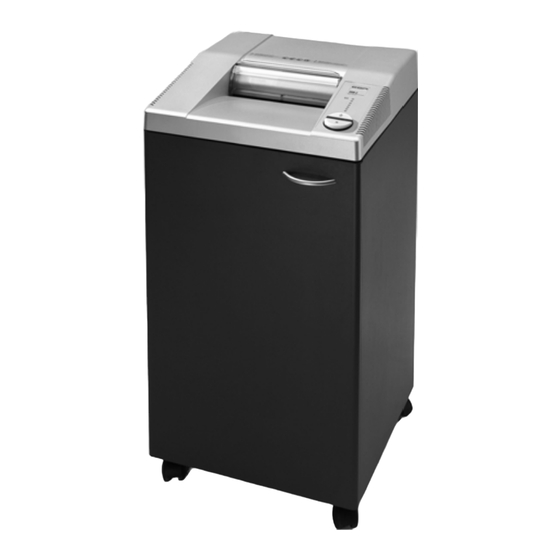

SEM 2226CC/3 Operational & Maintenance Manual

Sem model 2226cc/3-no oiler
Hide thumbs Also See for 2226CC/3:

Advertisement

Quick Links

See also: Operation & Maintenance Manual
Security Engineered Machinery Co., Inc
OPERATIONAL & MAINTENANCE MANUAL
SEM Model 2226CC/3-No Oiler
Serial Number 6321943 and Up
POP-0013 Rev. 1
Revised 05/15/2013
Security Engineered Machinery Co., Inc
NATIONWIDE SERVICE
Phone Toll Free 1(800)225-9293
Email:
Service@SEMSHRED.COM
Fax: (508)366-6814
Website:
WWW.SEMSHRED.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2226CC/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEM 2226CC/3

Summary of Contents for SEM 2226CC/3

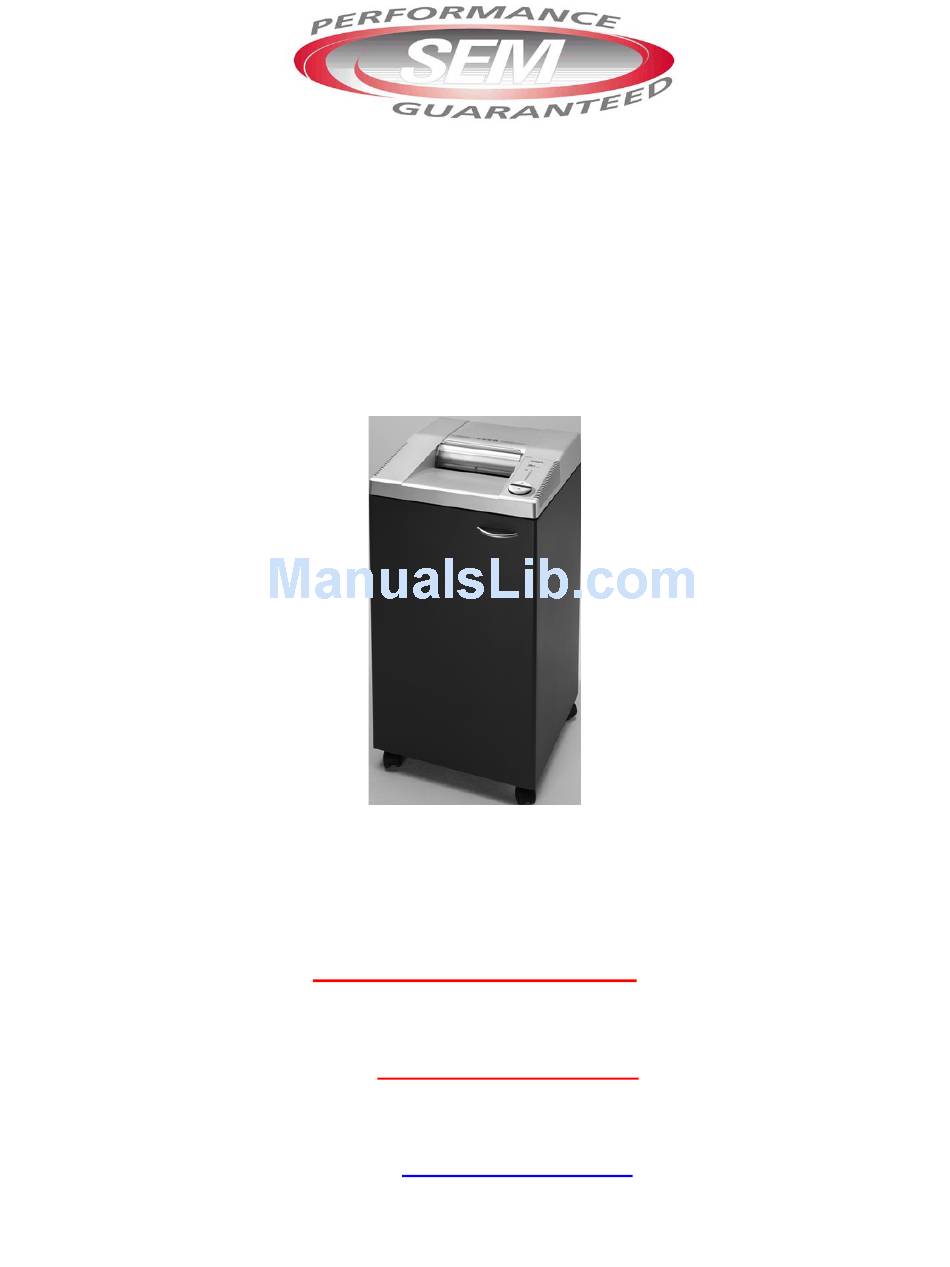

  • Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL SEM Model 2226CC/3-No Oiler Serial Number 6321943 and Up POP-0013 Rev. 1 Revised 05/15/2013 Security Engineered Machinery Co., Inc NATIONWIDE SERVICE Phone Toll Free 1(800)225-9293 Email: Service@SEMSHRED.COM Fax: (508)366-6814 Website: WWW.SEMSHRED.com...

  • Page 2: Table Of Contents

    Website: www.semshred.com E-mail: info@semshred.com Order On-line: GSA Customers: www.fedshred.com Commercial Customers: www.semshred.com IMPORTANT Two to three preventive maintenance calls per year are recommended Only authorized SEM service personnel should be allowed to service the shredder. For NATIONWIDE SERVICE Call 1(800)225-9293...

  • Page 3: Safety Procedures

    ***IMPORTANT SAFETY PROCEDURES*** Your new paper shredder incorporates powerful, heavy duty cutting mechanisms, serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals that are untrained or incapable of understanding these safety precautions! 2.
  • Page 4 ***IMPORTANT SAFETY PROCEDURES*** The door must be closed when operating the document shredder. Ensure free access to mains. Automatic standby that switches off after 1 hour. Green LED control light is off. For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 5 ***IMPORTANT SAFETY PROCEDURES*** Unplug from the main before cleaning the machine! Do not operate the machine without the safety flap (A). ON/OFF→Quick Stop→Open the door! For NATIONWIDE SERVICE Call 1(800)225-9293...

  • Page 6: Installation And Set-Up

    INSTALLATION Open the door; place the machine into the top of the cabinet. We recommend that two people set up this unit! Beware of fingers! Risk of injury! All machines have a container with plastic bag. Close the door; Plug into wall socket. For NATIONWIDE SERVICE Call 1(800)225-9293...

  • Page 7: Operation And Feeding

    Automatic standby that switches off after (1) one hour Green LED control light is off. Model 2226CC/3 has an ECC – display (electronic capacity control) which indicates the used sheet capacity during Shredding process (A). LED shows red (A).
  • Page 8 OPERATION Cont…. Stops automatically when door is opened symbols flash alternatively. Stops automatically when plastic bag is full. Empty the bag when “bag full” indicator lights. (see page 5 fig. 4) Stops automatically if too much paper is inserted. Automatic reverse if paper jams (Symbol “ON/OFF”...
  • Page 9 OPERATION Cont…. If required: (Paper Jam) Press the rocker switch “R” and remove paper. (Machine runs for a short time in reverse, if required repeat several times). Reset by pressing the rocker switch . Re-feed the paper in smaller quantities. Automatically stops if safety flap (A) is opened (symbols flash alternatively).

  • Page 10: Troubleshooting

    TROUBLESHOOTING Machine will not start. Is the machine plugged in? Is the rocker switch pressed? Is the green light rocker switch is ON? (1) Insert paper (2). For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 11 TROUBLESHOOTING Cont…. Feed the paper into the center of the feed opening. (photo cell) (A) Is the door open? Is the bag full? For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 12 TROUBLESHOOTING Cont…. Is the safety flap open? “Bag full” indicator illuminates but bag is not full. • Disconnect from the mains. •Remove paper debris between the cutting head (A) and flap (B) with a brush. Picture shows the machine from underneath. For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 13 TROUBLESHOOTING Cont…. Machine will not stop. Unplug from the main. Clean the photo cell (A) with a small brush or Q-tip with isopropyl (rubbing alcohol) Machine stops. Overload protection. Cooling down period approximately 10-15 minutes. • Symbols and “R” flash alternatively. •...

  • Page 14: Accessories

    ACCESSSORIES Plastic Bags (50 pieces) Part # 640SB130A Environmentally friendly oil (8 Pints) Part # 649OIL8HV For NATIONWIDE SERVICE Call 1(800)225-9293...

  • Page 15: Technical Information

    TECHNICAL INFORMATION Do not shred paper clips. Do not destroy CD/DVD’s. This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 98/37/EG, 2006/95/EG and 2004/108/EG. Sound Level Information: The sound level at the work place is less than the ISO 7779 standard’...

  • Page 16: Parts List

    For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 17 For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 18 For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 19 For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 20 For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 21 For NATIONWIDE SERVICE Call 1(800)225-9293...
  • Page 22 For NATIONWIDE SERVICE Call 1(800)225-9293...
