Operation and Maintenance Manual
SEM Paper Shredders
Includes Models: 244, 266, 344, 3130, 2226 Series, 3140 Series, and 5140 Series
MAN-014 Rev. 3 | Created 12-16-2020 | ECN-00575
For service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive | Westborough, MA 01581
508-366-1488 | info@semshred.com
www.semshred.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2226 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEM 2226 Series

Summary of Contents for SEM 2226 Series

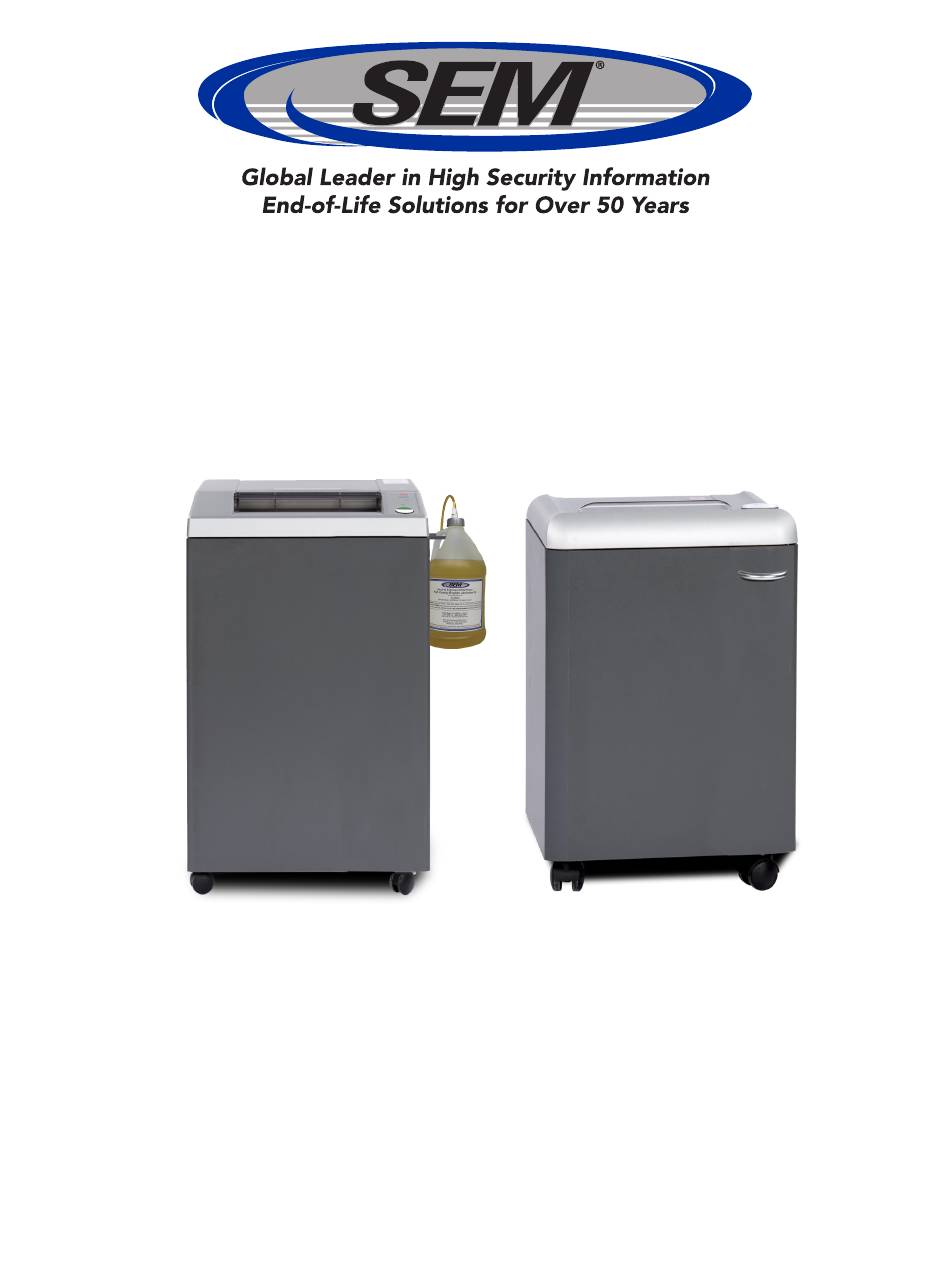

  • Page 1 Operation and Maintenance Manual SEM Paper Shredders Includes Models: 244, 266, 344, 3130, 2226 Series, 3140 Series, and 5140 Series MAN-014 Rev. 3 | Created 12-16-2020 | ECN-00575 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive | Westborough, MA 01581 508-366-1488 | info@semshred.com...

  • Page 3: Table Of Contents

    SEM Paper Shredders Operator Manual Contents Safety ........................1 Overview and Intended Use ................... 1 Setup ........................2 Shredders with an Auto Oiler ................2 Priming an Oiler ...................... 3 Operation ....................... 4 Safety Devices and Other Features ................ 5 System Lubrication ....................
  • Page 4 SEM Paper Shredders Operator Manual Disclaimer Every care has been taken by the staff of SEM in compilation of the data contained in all training and informational materials (“collateral”) and in verification of its accuracy when published; however, the content of this collateral is subject to change without notice due to factors outside the control of SEM and this collateral should therefore be used as a guide only.

  • Page 5: Safety

    NOTE: It is very important to oil frequently when shredding optical media in any of the strip cut and/or 4 x 40mm cross-cut systems. SEM paper shredders can be ordered at 230V 10A or 120V 15A and both voltages should be plugged into a dedicated line.

  • Page 6: Setup

    SEM Paper Shredders Operator Manual Setup Install the shredder on a level surface, away from heat sources and direct sunlight. Once unpacked, the cutting head will need to be placed onto the unit. It is recommended that two people lift the cutting head onto the unit.

  • Page 7: Priming An Oiler

    SEM Paper Shredders Operator Manual Priming an Oiler Units with an auto oiler will need to be primed when the oiler is first set up as well as every time the oil is changed. A primed oiler means that the oiler is ready to feed oil into the unit, ensuring the blades are lubricated.

  • Page 8: Operation

    Press the POWER button to turn on the machine. If the green light is on, the machine is now ready for operation. SEM paper shredders will automatically start running when paper is inserted and detected by the photo eyes sensor.

  • Page 9: Safety Devices And Other Features

    SEM Paper Shredders Operator Manual Safety Devices and Other Features Automatic Reverse Rotation When too much paper is inserted, the cutter stops operating and automatically rotates in reverse to discharge the jammed paper. Remove the jammed paper and reduce the size of the stack, then restart the operation.

  • Page 10: System Lubrication

    The oil from the sheets will then be dispersed onto the cutting head. Another option is to purchase SEM lubrication sheets. (See section Accessories.) SEM | www.semshred.com...

  • Page 11: Troubleshooting

    SEM Paper Shredders Operator Manual Troubleshooting Machine Will Not Start Is the machine plugged in? Is the machine powered on? Is the paper being fed into Is the door ajar or not the center of the machine? completely shut? Is the waste bin full? Is the safety flap open? SEM | www.semshred.com...

  • Page 12: Bag Full Light Is Illuminated But Not Full

    SEM Paper Shredders Operator Manual Bin Full Light is Illuminated But Not Full If the BIN FULL light is illuminated but the bag is not full, there may be a problem with the sensor. Remove the unit from power and wear appropriate PPE before attempting any troubleshooting on the paper shredder.

  • Page 13: Machine Stops Working

    SEM customer care at 800-225-9293 or service@semshred.com to insure that you are requesting the appropriate item. Please have the system model number and serial number available. The SEM customer care department will be able to provide the appropriate item number and cost.

  • Page 14: Sound Levels

    SEM Paper Shredders Operator Manual Sound Levels The sound level at the work place is less than the ISO 7779 standard’s maximum permissible level of < 70 db (A) (LPA). Exact value in idling running, LPA and LWAd (guaranteed A-rated sound power level). See below for the exact level.
  • Page 15 SEM Paper Shredders Operator Manual EC - Declaration of Conformity MFG Model SEM Model GS- IDENT. Nr. UL-IDENT. Nr. 2026-2 CCC 244/4, 344 Series ID Nr. 11260501 ID Nr. 10260501 2326 S; 2326 C; 2226 Series ID Nr. 11260401 ID Nr. 10260401 2326 CC;...
  • Page 16 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 508-366-1488 | info@semshred.com www.semshred.com Follow us on social media: Facebook: https://www.facebook.com/semshred Twitter: https://twitter.com/semsecure Linkedin: https://www.linkedin.com/company/security-engineered-machinery Youtube: https://www.youtube.com/user/datadestruction...
