Security Engineered Machinery Co., Inc

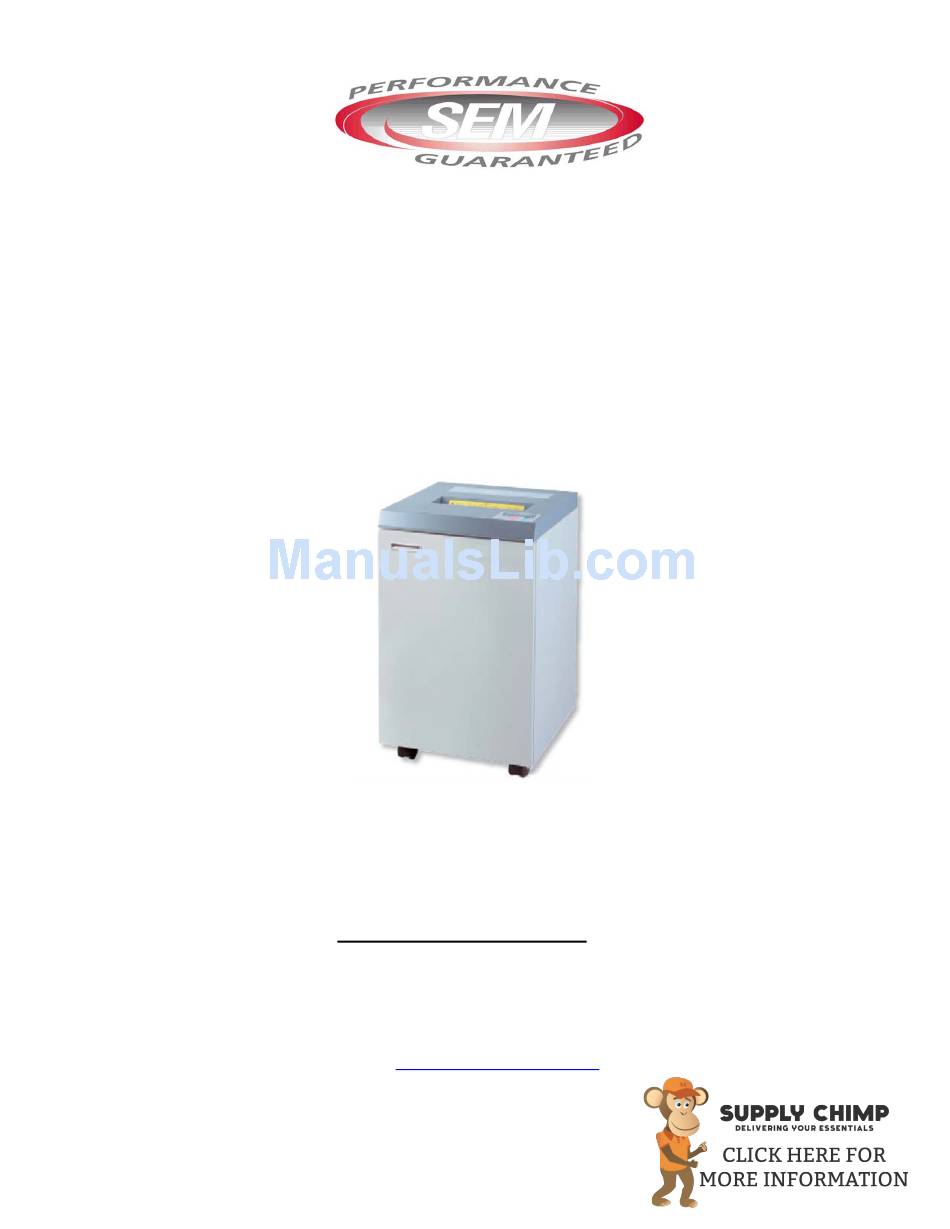

OPERATIONAL & MAINTENANCE MANUAL

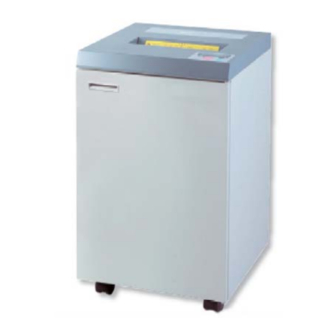

SEM 1201CC Paper Shredder
As of January 1, 2008
Security Engineered Machinery Co., Inc.
NATIONWIDE SERVICE
Phone Toll Free: 1(800)225-9293
Email:Service@SEMSHRED.com
Fax: (508)366-6814
Website:
WWW.SEMSHRED.COM

Advertisement

Table of Contents
loading

Related Manuals for SEM 1201CC

Summary of Contents for SEM 1201CC

  • Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL SEM 1201CC Paper Shredder As of January 1, 2008 Security Engineered Machinery Co., Inc. NATIONWIDE SERVICE Phone Toll Free: 1(800)225-9293 Email:Service@SEMSHRED.com Fax: (508)366-6814 Website: WWW.SEMSHRED.COM...

  • Page 2: Table Of Contents

    https://www.supplychimp.com INDEX Forward……………………………………………………………………………………..3 Safety Precautions………………………………………………………………………..4-6 Specifications………………………………………………………………………………7 Parts Identification…………………………………………………………………………8 Operation Keys and Display……………………………………………………………….9 Safety Functions……………………………………………………………………….10-11 Installations………………………………………………………………………………..12 Operating Procedures………………………………………………………………….13-16 Troubleshooting……………………………………………………………………….17-18 Daily Maintenance………………………………………………………………………..19 Parts List………………………………………………………………………………20-35 For NATIONWIDE SERVICE call 1(800)225-9293...

  • Page 3: Forward

    https://www.supplychimp.com FORWARD This manual provides the operation procedures for the paper shredder Model 1201PF. Read this manual thoroughly before starting up the shredder. Keep this manual handy so that you can refer to it at any time. The signal words “Warning” and “Caution” found in this manual and on warning labels affixed to the shredder correspond to the degree of injury that may result.

  • Page 4: Safety Precautions

    https://www.supplychimp.com SAFETY PRECAUTIONS WARNING Keep out of reach of children, sharp cutters inside may cause injury. Do not allow children to use the shredder and do not use it within children’s reach. If they touch the shredder, injury, burn and/or electric shock may result.
  • Page 5 https://www.supplychimp.com SAFETY PRECAUTIONS Cont…. Do not plug in or unplug the power cord with wet hands, electric shock may result. Do not carry out any maintenance or services other than the ones mentioned in this manual. Opening or removal of covers will expose you to dangerous moving parts, therefore may cause serious injury.
  • Page 6 https://www.supplychimp.com SAFETY PRECAUTIONS Cont…. Do not install the shredder in humid or dusty place. Keep water away from the shredder if water splashes on it fire or electrical shock may result. Always pull out the plug before moving the shredder. If the power cord is damaged a fire or electric shock may result.

  • Page 7: Specifications

    SPECIFICATIONS MODEL 1201CC Feed opening/loading width 12.20” (310 mm) Shred Size Approximately 1/25” x 1/5” (1X5 mm) Cutting Type Cross Cut Rated Sheet Capacity Letter size copy paper (70g/m) Approximately 5 sheets (Maximum 12 sheets) Cutting Speed Approximately 2– 9.8 meter per min.

  • Page 8: Parts Identification

    https://www.supplychimp.com PARTS IDENTIFICATION NAME FUNCTION (1) Throat Opening Paper to be shredded is fed through here (2) Operation keys and display See Page 9 (3) Breaker used as Main switch Used as the main ON/OFF switch. It works in case of circuit failure or motor lock in order to protect the motor from burnout.

  • Page 9: Operation Keys And Display

    https://www.supplychimp.com OPERATION KEYS AND DISPLAY Shredder Main Body NAME FUNCTION (1) Liquid Crystal Display Current status is displayed (2) STOP key Stops shredding and paper feeding (3) START key (shredder) Pressing the upper side of this key after turning on the breaker or during power saving mode makes shredder ready for operation (4) REVERSE key...

  • Page 10: Safety Functions

    https://www.supplychimp.com SAFETY FUNCTIONS Safety Devices (1) Auto-cut (Motor overheating protection) When motor is locked or overloaded for a certain period of time the motor overheat protection is activated to cut off the motor power. When activated a beep sounds and the machine will stop.
  • Page 11 https://www.supplychimp.com SAFETY FUNCTIONS Cont… Alarm and Beep (1) Acceptance Beep It sounds on acceptance of key entry and when the machine status changes (2) Alarm The beep sounds intermittently every 5 seconds when paper or foreign articles are detected near the feed opening while shredder stops and the screen shown on the left is displayed.

  • Page 12: Installations

    https://www.supplychimp.com INSTALLATIONS ϖ Place the shredder near the power outlet in such a way that the power plug is easily accessible. Note1: Do not install the shredder near heat sources such as radiator, flammable liquids or gases. Note 2: Do not install the shredder on uneven or unstable floor. ϖ...

  • Page 13: Operating Procedures

    https://www.supplychimp.com OPERATING PROCEDURES Automatic Operation Procedure Display Turn on the breaker and press the upper part of START key of the shredder. The SHRED READY screen appears. Note: If idle for more than 5 minutes, it Goes into the power save mode and all power goes off.
  • Page 14 https://www.supplychimp.com OPERATING PROCEDURES Cont… Manual Operation Procedure Display Turn on the breaker and press the upper part of START key. The SHRED READY screen appears. Note: If idle for more than 5 minutes, it goes into the power save mode and all power goes off.
  • Page 15 https://www.supplychimp.com OPERATING PROCEDURES Cont… Manual Operations Procedure Display The cutters stop automatically approximately 10 seconds after the paper disappears from the feed opening and the screen changes to SHRED READY. For continuous shredding, feed the next paper within 10 seconds. To stop the shredding during operation, press the STOP key.

  • Page 16: Operating Procedures

    https://www.supplychimp.com OPERATING PROCEDURES Cont… Discarding Waste Procedure Display When the waste basket is full, the status information beep sounds and the shredder evens out paper chips automatically for about 10 seconds. Caution Do not open the cabinet door during this operation.

  • Page 17: Troubleshooting

    1(800)225-9293 If any error occurs after taking the corrective actions mentioned above, check the error number and contact SEM’s Customer service at 1 (800)225-9293. Do not attempt to conduct any actions other than the ones mentioned above. For NATIONWIDE SERVICE call 1(800)225-9293...

  • Page 18: Troubleshooting

    https://www.supplychimp.com TROUBLESHOOTING Cont… Common Troubleshooting Symptom Corrective Action Refer to Shredder does not start Confirm power source is ____ shredding even when paper is fed manually Check to see that the plug ____ is inserted into the outlet. Confirm that the breaker is ____ Check to see if the auto-cut Page 10...

  • Page 19: Daily Maintenance

    https://www.supplychimp.com DAILY MAINTENANCE Warning Do not dismantle or repair the product. Sharp cutters inside may cause injury. Opening or removal of covers allows you to access dangerous moving parts and live parts inside and accessing such parts may cause injury. Caution Always pull out the plug before cleaning or Performing any type of maintenance to avoid...

  • Page 20: Parts List

    MODEL 1201CC PARTS LIST DESCRIPTION PART NO. QUANTITY Instruction Manual SMSZ48334A11 Rating Name Plate SMSZ48328A11 Machine Number Plate SMSZ48078B11 Machine Name Plate SMSZ48221A11 Label for Disassemble Prohibition SMSZ47966B11 MS43 Packing Complete Set SMSZ47345A01 Waste Bag M SMSZ46537A01 Waste Box...
  • Page 21 https://www.supplychimp.com Main Body Housing SMSZ1500N01 Magnet Catch SMTL-185 Handle (Main Body) SMSZ47171B11 Breaker Cord Assemble (UL) SMSZ48122A01 One Touch Bush SMSB562-7 Cord Fitting Plate SMSZ8731B12 Cord Bush SMSB8R-1 Waste Box Rail SMSZ30591C11 Waste Sensor Case SMSZ30593D11 Photo Sensor SMGP2A22 Plate for Sensor SMSZ44760A11 Waste Sensor Harness SMSZ46215A01...
  • Page 22 https://www.supplychimp.com Control Circuit :MS-4XINV (UL) SMMS-4XINV(UL) Harness Assembly *Inc. Controller SMSK1-40301 Harness Assembly *Inc. Controller SMSK1-40305 Harness Assembly * Inc. Controller SMSK1-40311 Harness Assembly * Inc. Controller SMDK1-307894 Caution Name Plate for High Temperature SMSZ48123A11 Clip Cover SMSZ44723C11 IVS-4 Motor : MS-4 (1U) SMMS-4 (1U) Spur Gear Z41 SMSZ46788A11...
  • Page 23 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 24 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 25 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 26 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 27 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 28 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 29 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 30 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 31 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 32 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 33 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
  • Page 34 https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...

  • Page 35: Parts List

    https://www.supplychimp.com For NATIONWIDE SERVICE call 1(800)225-9293...
