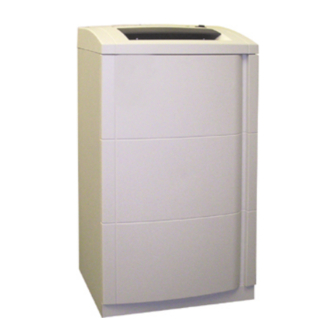

- Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL SEM Model 126C/2 Rev. 0 As of January 1, 2008 Security Engineered Machinery Co., Inc NATIONWIDE SERVICE Phone Toll Free 1(800)225-9293 Email: Service@SEMSHRED.COM Fax: (508)366-6814 Website: WWW.SEMSHRED.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Index-----------------------------------------------------------------------------------------------------------------------1 Safety Procedures & Instructions-----------------------------------------------------------------------------------2-4 Technical Data/Installation-------------------------------------------------------------------------------------------5-6 Malfunctions-------------------------------------------------------------------------------------------------------------7-9 Using and Ordering Parts------------------------------------------------------------------------------------------------9 Housing Diagram and Parts Breakdown---------------------------------------------------------------------------10-11 Cutting Head Diagram and Parts Breakdown---------------------------------------------------------------------12-13 Drive Diagram and Parts Breakdown------------------------------------------------------------------------------14-15 Electrical Diagram and list------------------------------------------------------------------------------------------16-17 Wiring Diagram-----------------------------------------------------------------------------------------------------------18 For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 3 ***IMPORTANT SAFETY PROCEDURES*** Your new paper shredder incorporates powerful, heavy duty cutting mechanisms. Serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals untrained in or incapable of understanding the safety precautions! 2.
-
Page 4: Safety Procedures & Instructions
SAFETY INSTRUCTIONS 1. Read all instructions before start-up of the paper shredder. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the products! 4. Before cleaning the paper shredder: a. Switch paper shredder off, unplug it from the power source b. - Page 5 Before taking off the cover, changing the location, cleaning or anything else other than normal operation turn off and unplug the paper shredder! Maintenance and service work may be performed only by an authorized SEM Service Representative. USE ACCORDING TO INSTRUCTIONS The paper shredder is intended only for shredding normal paperwork.
-
Page 6: Technical Data/Installation
TECHNICAL DATA Shred Size: 1 x 5 mm Max. No. of Sheets: Up to 5 Sheets Shredding Speed: 27 FPM Throat Width: 10" Power: 5/8 HP @ 7 Amps Voltage: 115V/1/60 HZ Dimensions: 33"H x 18"W x 14"D Weight: 70 lbs. INSTALLATION Connect plug to 115 Volt wall outlet Paper shredder must only be operated in upright position... - Page 7 INSTALLATION Cont…. Open front door and pull out frame with bag for shredded material. Fold new bag around frame and allow to, overlap by approximately 20cm. Push frame with guide and bag into bottom frame, close front door. Read operating instructions before pulling shredder into operation. Insert main plug in power socket.
-
Page 8: Malfunctions
TROUBLESHOOTING If the paper shredder does not work properly, please check the following: 1. Is the main plug inserted into the main power outlet? 2. Is the paper shredder turned on? 3. Is the paper shredder front door closed? 4. Is the front door closed? 5. - Page 9 Switch paper shredder off • Tap rocker switch pos. 2 • The rocker switch jumps to position 0 Squirt SEM shred oil in a figure 8 motion onto a sheet of paper and feed it into the shredder. For NATIONWIDE SERVICE Call 1(800)225-9293...
-
Page 10: Using And Ordering Parts
Only use original SEM spare part replacements We guarantee their quality and functional reliability Warranty claims on parts and/or service must be approved by SEM's Customer Service Manager HINTS FOR ORDERING SPARE PARTS The spare parts shown on the following pages have part numbers. This spare parts list shows the following information with respect to the spare parts to be ordered. -
Page 11: Housing Diagram And Parts Breakdown
CABINET/HOUSING For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 12 CABINET /HOUSING PARTS BREAKDOWN ITEM PART NO. DESCRIPTION DIMENSION SH1133050113 Housing top SH1562999010 Label 32 x 270 SH1133050158 Safety Element 295 x CA.70 x 70 SH1116050210 EJOT Screw D=4 L=25 SH1133050400 EJOT Screw D=3 L=25 SH1442999300 Label 20x48 SH1270050052 Housing Bottom 400 x 300(310) x 153 SH1116050220 EJOT Screw...
-
Page 13: Cutting Head Diagram And Parts Breakdown
CUTTING HEAD For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 14 CUTTING HEAD PARTS BREAKDOWN ITEM PART NO. DESCRIPTION DIMENSION SH1562020450 Cutter roll long 0, 86x5 mm SH1562020400 Cutter roll short 0,86x5 mm SH1273020600 Distance Rod RD12x268,1 SH9917985033 Cheese head screw M 5x12 SH1275020700 Bearing plate, right side 140x103x15 SH1270020600 Flap SH1275020650 Bering plate metal left BL 3x113,45x251,31...
-
Page 15: Drive Diagram And Parts Breakdown
DRIVE For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 16 DRIVE PARTS BREAKDOWN ITEM PART NO. DESCRIPTION DIMENSION SH1710500010 Capacitor motor SH9917985032 Oval head cap screw M 5x10 SH1270030010 Toothed wheel z=65 m=1,25/z=13 m=2 D=92,1 B=47 SH1270030020 Bolt RD 16x53,25 SH1270030055 Toothed wheel z=13 m=2,75 D=42 B=19,7 SH1270030045 Toothed wheel z=13 m=2,75 D=70 B=27,2 SH1270030030 Toothed wheel z=50 m=2...
-
Page 17: Electrical Diagram And List
ELECTRIC For NATIONWIDE SERVICE Call 1(800)225-9293... - Page 18 ELECTRIC PARTS BREAKDOWN ITEM PART NO. DESCRIPTION DIMENSION SH1110520010 Rocker switch SH1212505010 Light barrier SH1212505080 LED display 300 MM SH1100540220 Cable assembly w/US-plug 2000 MM SH1108515200 Appliance inlet plug 6,3 MM SH1438505050 Electronic circuit board SH1133560120 Capacitor 45 uF 240V SH9910936008 Hexagon nut SH9916797004...
-
Page 19: Wiring Diagram
WIRING DIAGRAM For NATIONWIDE SERVICE Call 1(800)225-9293...
