Security Tronix ST-PTZMINI-540W Installation Manual

Medium speed intelligent dome ptz color camera
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

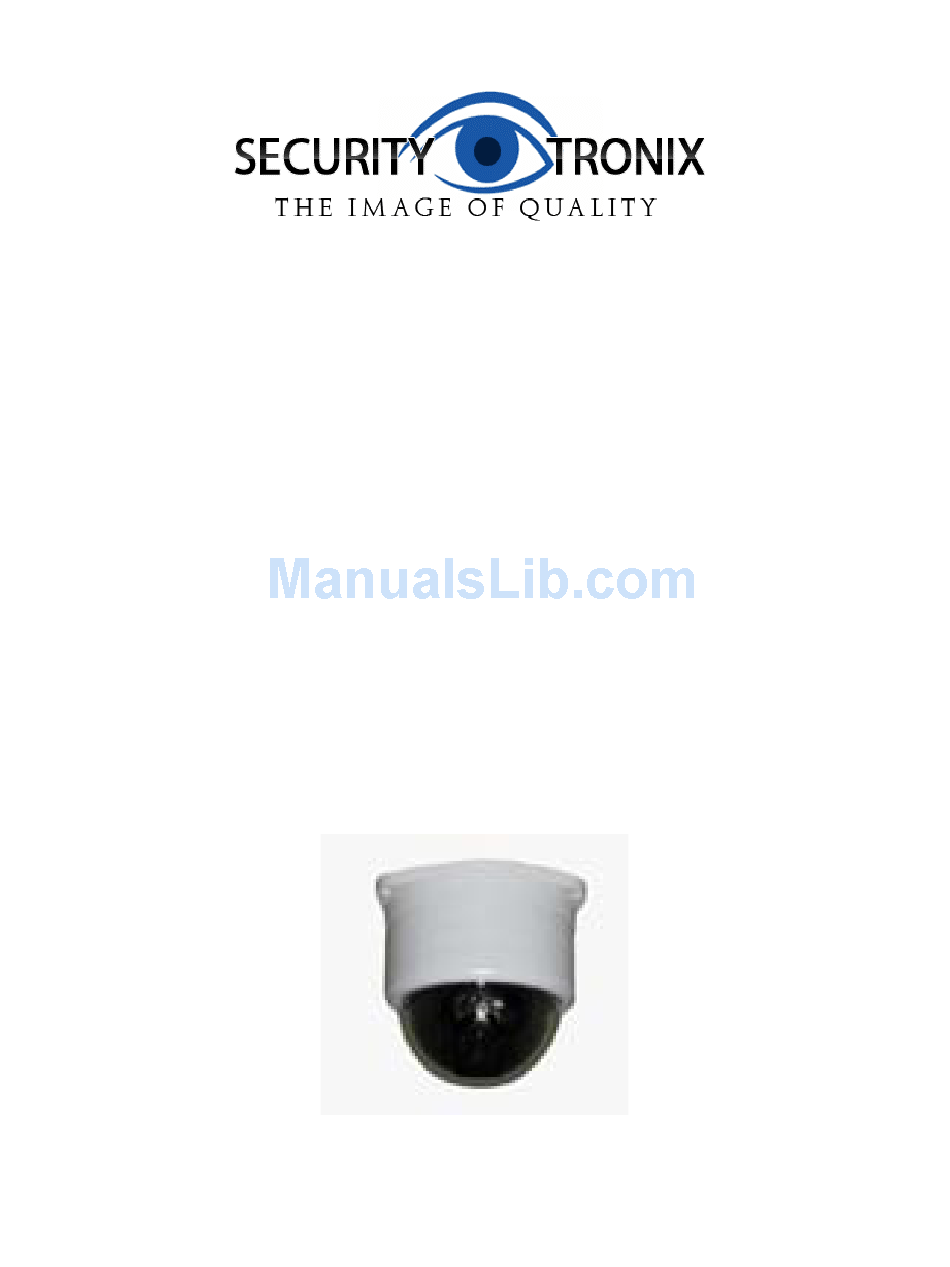

INSTALLATION MANUAL
ST-PTZMINI-540W
Medium Speed Intelligent
Dome PTZ Color Camera
1
v2.0 3/21/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-PTZMINI-540W and is the answer not in the manual?

Questions and answers

Related Manuals for Security Tronix ST-PTZMINI-540W

Summary of Contents for Security Tronix ST-PTZMINI-540W

  • Page 1 INSTALLATION MANUAL ST-PTZMINI-540W Medium Speed Intelligent Dome PTZ Color Camera v2.0 3/21/11...

  • Page 2: Package Contents

    ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-PTZMINI-540W is a professional grade indoor dome color camera with pan, tilt and zoom (PTZ) capability of 540TVL of resolution. The camera’s full digital design allows the saving of all settings in non-volatile memory. Its 128 preset positions allows up to 8 preset positions for auto tracking functions.

  • Page 3: Unpacking And Handling

    INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
  • Page 4 5. FUNCTIONS and OPERATION Configuring the ST-PTZMINI-540W The ST-PTZMINI-540W’s control board has an 10-DIP switch used to set a number of parameters including address, communications protocols and control protocols. command used should conform to the target camera and that camera’s response should occur only when it has been addressed.

  • Page 5: Address Switch

    Address Address Switch Address Address Switch Code 1 2 3 4 5 6 7 8 Code 1 2 3 4 5 6 7 8 1 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 1 0 0 1 1 0 0 0 0 0 0...

  • Page 6: Zoom Control

    Auto Scanning – The camera performs a level scan back and forth among the left and right limits at a set speed – is incorporated in the ST-PTZMINI-540W. Left and right limits and scan speed are set using the PTZ Controller. Auto scan can be done using CALL #125 or pressing the auto-scan button on the PTZ Controller.

  • Page 7: Troubleshooting

    These preset points with timing pauses can be programmed as a tour route. In so doing, the ST-PTZMINI-540W can automatically follow a predefined path or route. Up to 8 preset points and timing pauses can be stored in the camera. Two tour routes (#101 and #102) can be created using 8 preset points each.
  • Page 8 APPENDIX: PELCO-D PROTOCOL The ST-PTZMINI-540W uses the PELCO-D protocol. Below is a description of the protocol for those installers or system integrators in need of the protocol’s details. Data Form: 1 beginning position, 8 pieces for data, 1 ending position, invalid checking point.
  • Page 9 Turn On and Off the Command of Auxiliary Switches Turn On the Command of Auxiliary Switches Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Synchronized Address Auxiliary Confirmation Byte Code Switch # Code Turn Off the Command of Auxiliary Switches Byte 1 Byte 2 Byte 3...
