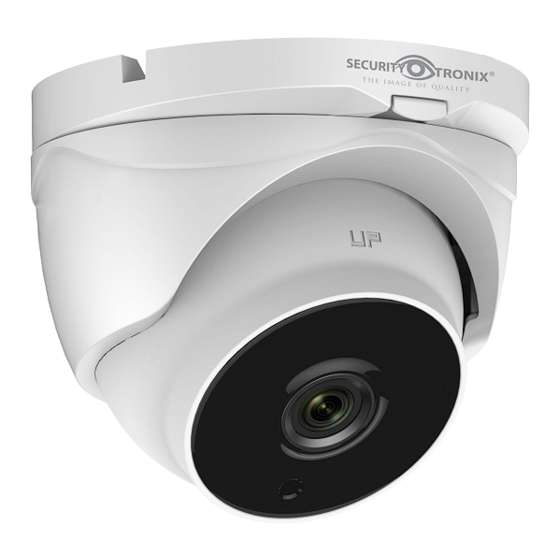

Summary of Contents for Security Tronix HD-COAXINATORTVI ST-HDC2VFTD-MZ
Page 1
ST-HDC2VFTD-MZ QUICK START GUIDE www.nacebrands.com www.securitytronix.com User Manual Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer or technical support. This manual applies to the Securitytronix HD-TVI Series cameras.
Privacy Notice Surveillance laws vary by jurisdiction. Check all relevant laws in your jurisdiction before using all this product for surveillance purpose to ensure that your use of this product conforms. Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules.
1 Introduction 1.1 Product Features This series of HD-TVI camera adopts high performance sensors and advanced circuit board design technology. It features high resolution, low distortion, and low noise, etc. Designed for use in surveillance systems. The main features are as follows: ...
2.1 Ceiling Mounting 2.1.1 Ceiling Mounting without Inclined Base Steps: 1. Disassemble the dome camera by loosening three screw of the bubble, and then take apart the bubble, as shown in Figure 2-1. Screw Figure 2-1 Disassemble the Camera Three screws on the bubble are all drop-proof screws.
Page 5
Pan Position Range [0°-355°] Tilt Adjusting Screw Rotation Position Range Tilt Position Range [0°-355°] [0°-75°] Figure 2-4 3-axis Adjustment 6. Install the bubble to the camera and tighten three screws. Figure 2-5 Fix the Camera to the Ceiling 2.1.2 Ceiling Mounting with Inclined Base Steps: Attach the drill template (supplied) and then drill the screw holes and the cable hole in the ceiling.
Page 6
Figure 2-8 Drill Template 2. Install the bracket onto the wall according to the template and fix the screws to secure the bracket. Figure 2-9 Fix the Bracket onto the Wall 3. Repeat steps 1-5 of 2.1.1 to fix the dome camera with the plastic bracket.
Page 7
Figure 2-12 Install the Pendent Cap 2. Fix the adapter to the pendent cap with two screws. (Optional) Figure 2-13 Install the Adapter to the Pendent Cap 3. Repeat step 1-8 of 2.1.1 to install the camera to the pendent cap. 2.3 Pendent Mounting with Pendent Bracket Steps: 1.
3 Menu Description SETUP FORMAT MAIN MENU VIDEO RESET &NIGHT SETTING SAVE CONTRAST &EXIT BRIGHTNESS COLOR SHARPNESS EXPOSURE MODE COLOR GAIN GAIN SMART MIRROR Figure 3-1 Main Menu Overview With a camera controller (purchased separately) or calling the preset No. 95 of DVR you can select the menu and adjust the parameters.
Page 9
BLC (Backlight Compensation) BLC (Backlight Compensation) compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong. When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.
Page 10
INFRARED You can select to turn on/off the IR LED to response to the requirements of different circumstances. SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and to prevent the image from over exposure.
