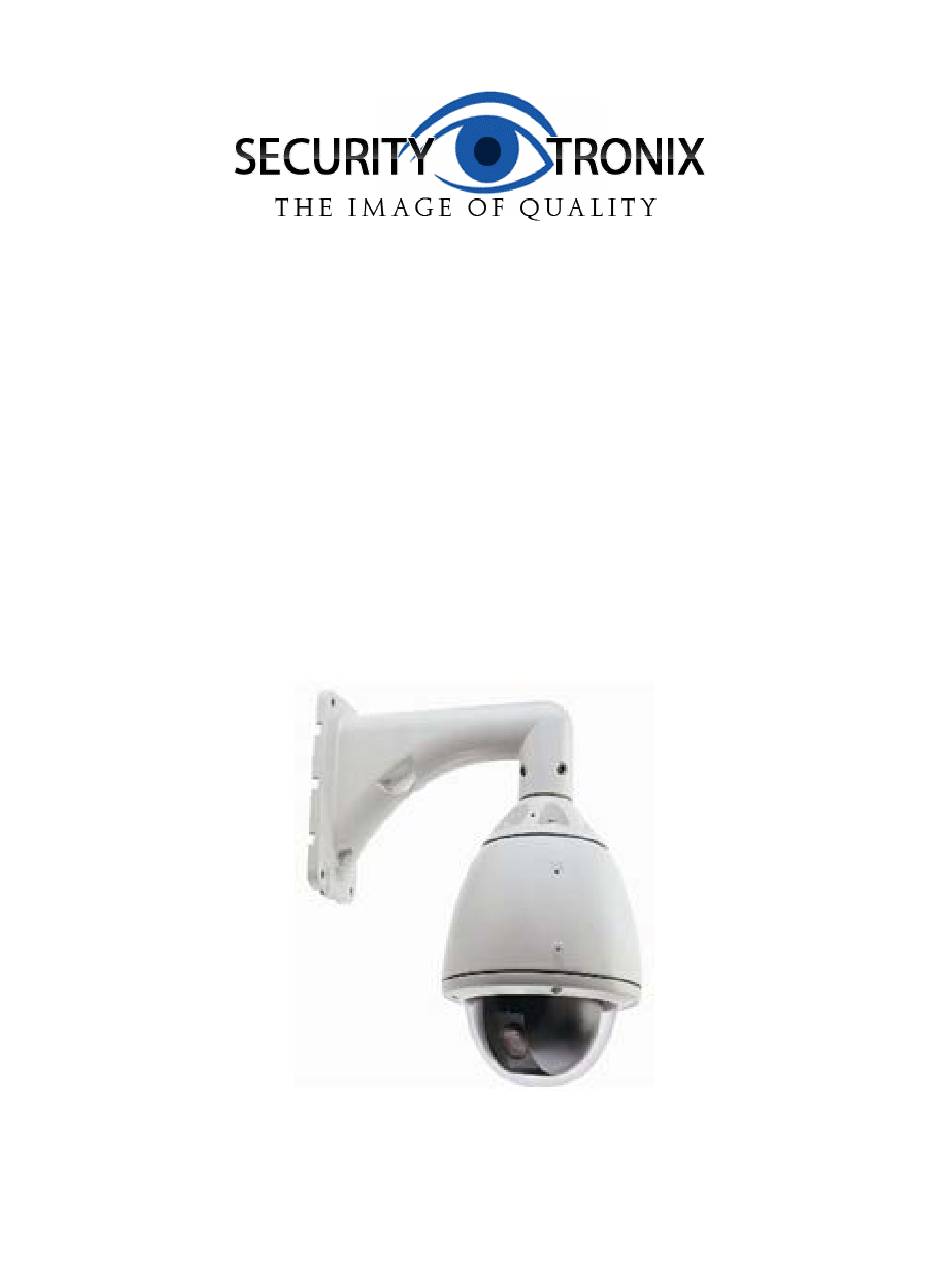

- Page 1 INSTALLATION MANUAL© ST-PTZ480-22 IP66 Rated High-Speed Intelligent Dome PTZ Color Camera Copyright North American Cable Equipment, Inc. v1.2 3/2/11...
-
Page 2: Package Contents
One installation manual. PRODUCT DESCRIPTION The ST-PTZ480-22 is an IP66 rated, professional grade intelligent dome color camera with pan, tilt and zoom (PTZ) capability of 480TVL of resolution. The camera’s full digital design allows the saving of all settings in non-volatile memory. Its 256 preset positions provide versatility for cruise routes and auto tracking functions. -
Page 3: Unpacking And Handling
26. IP66 for Outdoor Use 27. Operating Humidity ≤95% 28. Heater Operation 42ºF on; 57ºF off 29. Operating Temperature -40ºF - 122ºF 30. Video Connection BNC coaxial 31. Power 24VAC @3A, 35W 32. Communication RS485(+/-) INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. -
Page 4: Camera Setup
The installation site and material must fully support the weight of the product. g. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe gently with a mild detergent. Never use strong or abrasive detergents. h. -
Page 5: Wiring Connections
To select the baud rate set switches 3 and 2 on the System Setup DIP Switch as described above. Camera Module Selection The ST-PTZ480-22 uses the CB-22GD camera module although various other camera modules may be compatible with the unit. The DIP switches on the camera module’s PCB board are factory set for the... -
Page 6: Functions And Operation
6. FUNCTIONS and OPERATION Basic Operation After powering up the ST-PTZ480-22’s version number, High Speed Dome communication protocol, baud rate and address will be Ver：2.20 shown on the monitor. At the same time, the system will PELCO D/P check the pan and tilt status and display the results. The BPS：2400... - Page 7 Menu Operation Call preset 95 to enter the menu setup. The main menu will be shown on the screen. Note the following symbols: Indicates current working cursor Indicates current activated cursor ► Indicates there is a sub-menu after the current menu The menu content is only changed under activated status.
- Page 8 Confirmation of an exposure mode selection – Exp Mode Auto “ Under Exp Mode” press OPEN. The menu will Shutter speed Iris then turn to “Exp Mode”. Gain Bright Cancellation of an exposure mode selection – BackLight “ Under Exp Mode”...
- Page 9 OPEN to enter the R Gain setup. Then move the joystick up or down to adjust the R Gain values from 0 to 255. Once the value has been selected press OPEN to confirm or CLOSE to cancel. White Gain must be set to “manual” in order to adjust red and blue balance levels. For B Gain Setup –...
- Page 10 Camera modes can be selected by calling certain presets: NORMAL – call preset 100 DAY – call preset 101 NIGHT – call preset 102. NORMAL is the default mode. Zoom Speed Under the Exposure sub-menu move the cursor to “Zoom Speed” and press OPEN and change the parameters after the ...
-
Page 11: Shortcut Key
Shortcut Key The Shortcut Key Menu is found under the Main Menu. Shortcut keys allow the association of a certain function with a corresponding preset allowing for quick and convenient function selection. Open Menu Open Menu Opens the menu Auto Flip Auto Flip Auto Flip Reference... - Page 12 Leisure Time If the Leisure Time reaches the previously set value after manual operation the unit will automatically run according to Self Act (except when Self Act is set to “Nothing”). If the parameter in Self Act is “Home Place” the user must ensure that “Home Place” is on. If “Home Place”...
-
Page 13: Troubleshooting
alarms. The setup of AUX2 is the same as AUX1. Note: The maximum relay output is 24VAC @1A. Once in the Alarm Mode/Alarm Set Sub-Menu press OPEN. The symbol turns to . The parameters can now be changed. Press OPEN to confirm or CLOSE to cancel. The symbol will return to . - Page 14 APPENDIX A CAMERA ADDRESS SETTING USING 8-DIGIT DIP SWITCH SW2 CAM ID v1.2 3/2/11...
