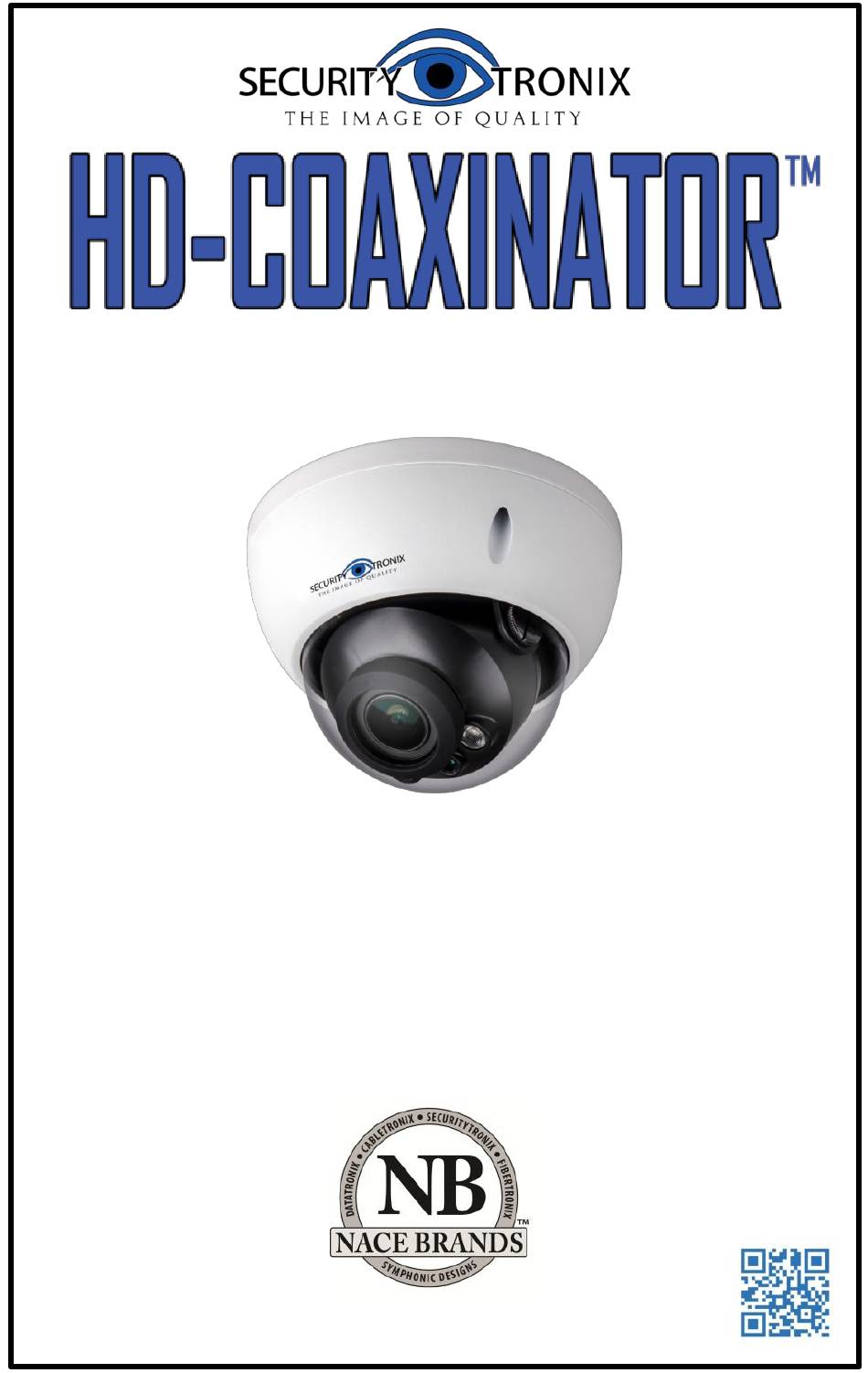

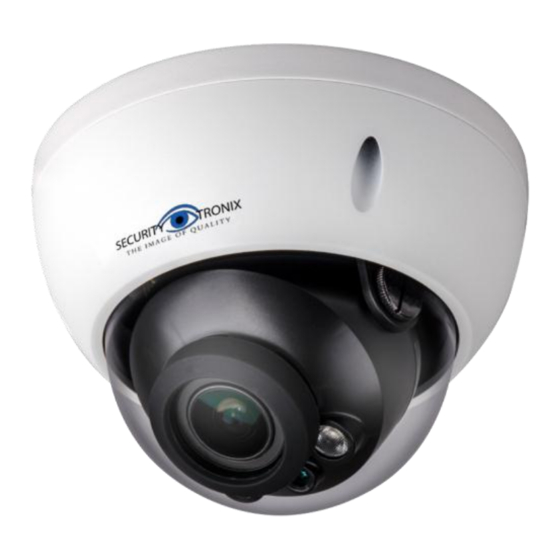

- Page 1 Professional Motorized Varifocal Camera ST-HD-D2812M-2MP INSTALLATION MANUAL www.nacebrands.com www.securitytronix.com...
- Page 2 IR and motorized zoom capabilities, and 1080p resolution. A 2.8mm to 12mm motorized lens makes zooming and focusing during installation fast and simple, and its ability to send HD video over coaxial cable makes the ST-HD-D2812M-2MP a cost effective high- definition surveillance solution for any budget. Specifications: Image Sensor 1/2.8”...
- Page 3 (1) ST-HD-D2812M-2MP Motorized Varifocal IR Camera (1) Installation Manual Note: The ST-HD-D2812M-2MP requires a 12VDC 1A power supply such as the ST-PS12VDC1A. Ensure that all accessories and documentation are removed from the container before discarding packing material. Inspect the front, sides, and rear of the equipment for shipping damage.
- Page 4 Making Connections 1. Connect the DC power supply cable to the camera’s power connector. 2. Connect the camera to the CVR with a 75Ω coaxial video cable. 3. Connect power supply’s AC plug to a suitable AC power outlet. ST-HD-D2812M-2MP...
- Page 5 Zoom & Focus The ST-HD-D2812M-2MP features motorized zoom and focus, and is controlled from the CVR via COC (control over coax). Using the on-screen PTZ controller of the CVR, press the ZOOM -/+ buttons to reach the desired level of zoom. The camera will then auto- focus.
- Page 6 Troubleshooting Issue Solution No picture after applying (1) Check that all plugs and cables are securely connected power. to the proper connectors. (2) Ensure that the power supply is providing the correct voltage and current. Picture is consistently (1) Check that the coaxial video cable from the camera to tinted or distorted.
- Page 8 Version 1.2 (4/10/15) © 2015 North American Cable Equipment.
