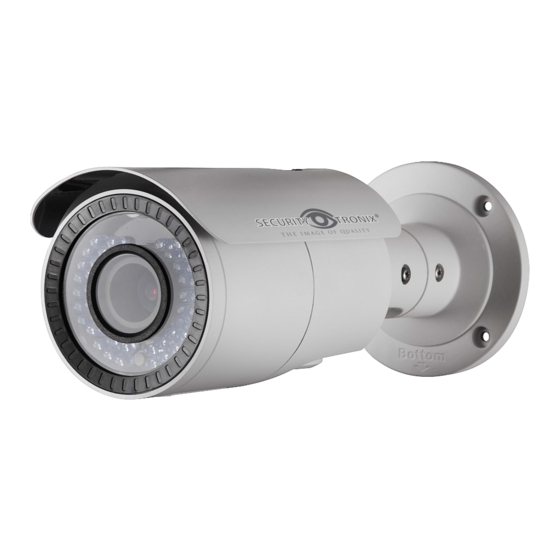

ST-IP4VFB-MZ
QUICK START
GUIDE
www.nacebrands.com
www.securitytronix.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-IP4VFB-MZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Security Tronix ST-IP4VFB-MZ

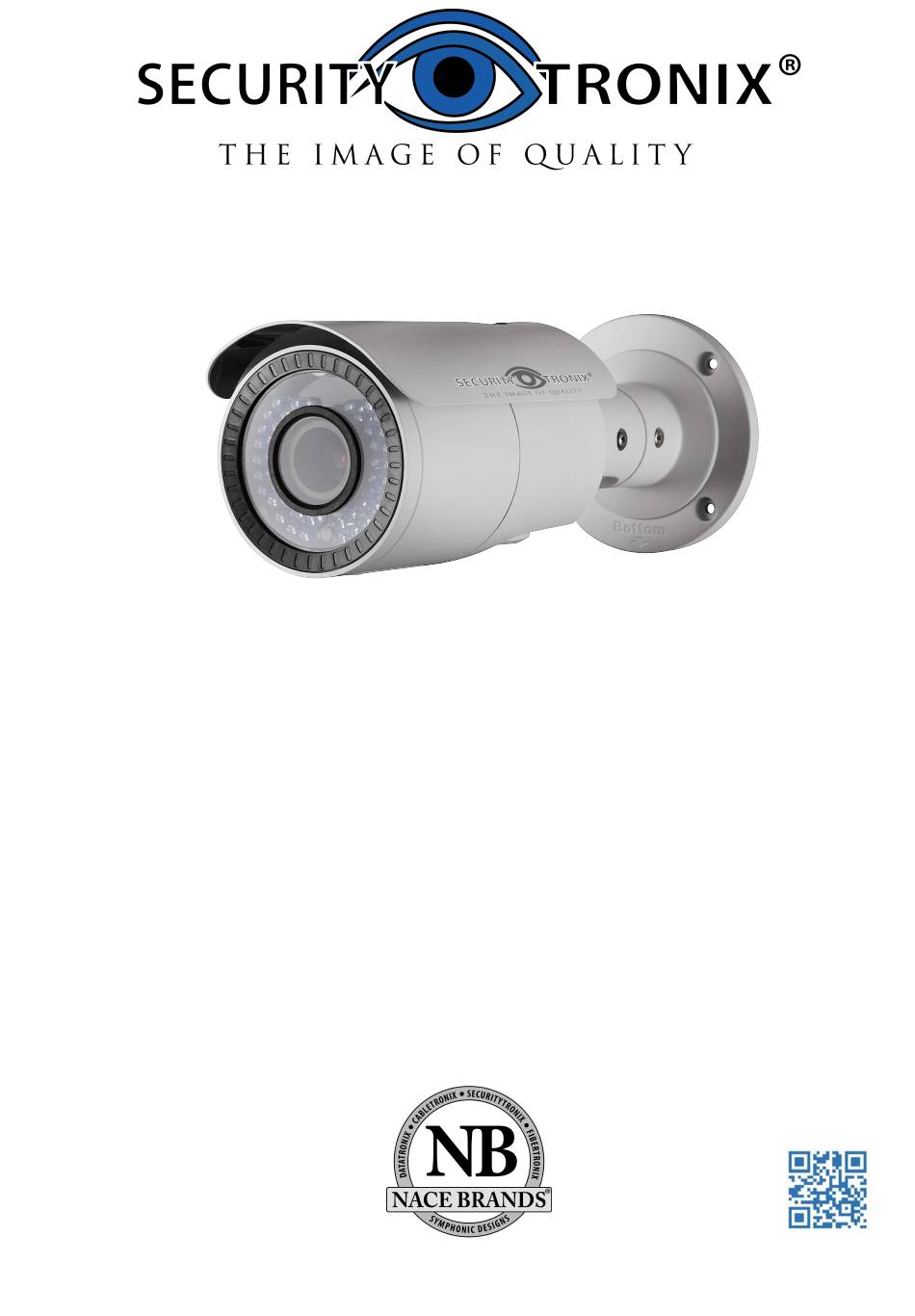

  • Page 1 ST-IP4VFB-MZ QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 ST-IP4VFB-MZ QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual applies to the smart bullet cameras. This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
  • Page 3 ST-IP4VFB-MZ QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP4VFB-MZ QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
  • Page 5 ST-IP4VFB-MZ QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 ST-IP4VFB-MZ QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 ST-IP4VFB-MZ QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
  • Page 8: Table Of Contents

    ST-IP4VFB-MZ QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 1.1 Camera Description ............8 1.2 Wiring ................9 2 Installation ..................11 3 Setting the Network Camera over the LAN ........18 4 Accessing via Web Browser ............24...
  • Page 9: Appearance Description

    ST-IP4VFB-MZ QUICK START GUIDE 1 Appearance Description Camera Description The overview of the network bullet camera is shown below: Figure 1-1 Overview Table 1-1 Description Description Description Sun Shield Bracket...
  • Page 10: Wiring

    ST-IP4VFB-MZ QUICK START GUIDE Description Description Junction Box Reset SD Card Slot Front Box Analog Video Output Wiring The wiring varies according to the different models of bullet camera. Figure 1-2 Wiring (A) Table 1-2 Description (A) Description Power supply interface...
  • Page 11 ST-IP4VFB-MZ QUICK START GUIDE Figure 1-3 Wiring (B) Table 1-3 Description (B) Description AUDIO IN, G: Audio input interface AUDIO OUT, G: Audio output interface IN, G: Alarm input interface 1A, 1B: Alarm output interface D+, D-: RS-485 interface Power supply interface...
  • Page 12: Installation

    ST-IP4VFB-MZ QUICK START GUIDE 2 Installation Before you start:  Make sure the device in the package is in good condition and all the assembly parts are included.  Make sure all the related equipment is powered-off during installation.  Check the specification of the products for the installation environment.
  • Page 13 ST-IP4VFB-MZ QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 14 ST-IP4VFB-MZ QUICK START GUIDE 3. Fix the junction box to the wall with the expansion screws. Junction Box Figure 2-2 Install the Junction Box 4. Route the cables of the camera. Route the cables through the junction box and the cable hole if ...
  • Page 15 ST-IP4VFB-MZ QUICK START GUIDE 5. Hook the camera to the junction box with the safety rope. 6. Tighten the screws to fix the camera to the junction box. Safety Rope Figure 2-3 Fix the Camera to the Junction Box 7. Loosen the screws on the bracket to adjust the camera to the desired surveillance angle and then tighten the screws to fix the camera.
  • Page 16 ST-IP4VFB-MZ QUICK START GUIDE Pan Adjust Nut Tilt Adjust Nut Figure 2-4 Adjust Monitoring Angle  Please loosen the screws slightly until you can adjust the camera and do not remove the screws from the bracket. 8. Loosen the lock screw on the sun shield and remove the sun shield.
  • Page 17 ST-IP4VFB-MZ QUICK START GUIDE Romove the Front Box Zoom Lever Focus Lever Remove the Sun Shield Figure 2-5 Lens Adjustment For devices supporting motorized zoom lens (MZL), you can only adjust the camera to the proper surveillance angle via 3-axis adjustment, then adjust the zoom and focus by the PTZ control from the client software or web browser.
  • Page 18 ST-IP4VFB-MZ QUICK START GUIDE For projects with strict water-proofing demands, you may need to install a water-proof rubber case (purchased separately) to ensure a waterproof installation. See the figure below. Figure 2-6 Install the Rubber Case...
  • Page 19: Setting The Network Camera Over The Lan

    ST-IP4VFB-MZ QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet as your PC. Then, install the SADP or client software to search and change the IP of the network camera.
  • Page 20 ST-IP4VFB-MZ QUICK START GUIDE Use client software to list the online devices. Please refer to the user manual of client software for detailed information. 2. Change the IP address and subnet mask to the same subnet of your PC. Refer to the following introductions to set IP address with SADP software: ...
  • Page 21 ST-IP4VFB-MZ QUICK START GUIDE Figure 3-2 Search Online Devices Device can be searched and displayed in the list in 15 seconds after it goes online; it will be removed from the list in 45 seconds after it goes offline. Search online devices manually:...
  • Page 22 ST-IP4VFB-MZ QUICK START GUIDE You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click to show the device table...
  • Page 23 ST-IP4VFB-MZ QUICK START GUIDE Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters 3. Enter the IP address of network camera in the address field of the web browser to view the live video.
  • Page 24 ST-IP4VFB-MZ QUICK START GUIDE  The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.  For accessing the network camera from different subnets, please set the gateway for the network camera after you log in.
  • Page 25: Accessing Via Web Browser

    ST-IP4VFB-MZ QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 26 ST-IP4VFB-MZ QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of...
  • Page 27 ST-IP4VFB-MZ QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
  • Page 28 ST-IP4VFB-MZ QUICK START GUIDE Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
  • Page 29 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
