Summary of Contents for Security Tronix ST-D600DN2812-DSHB

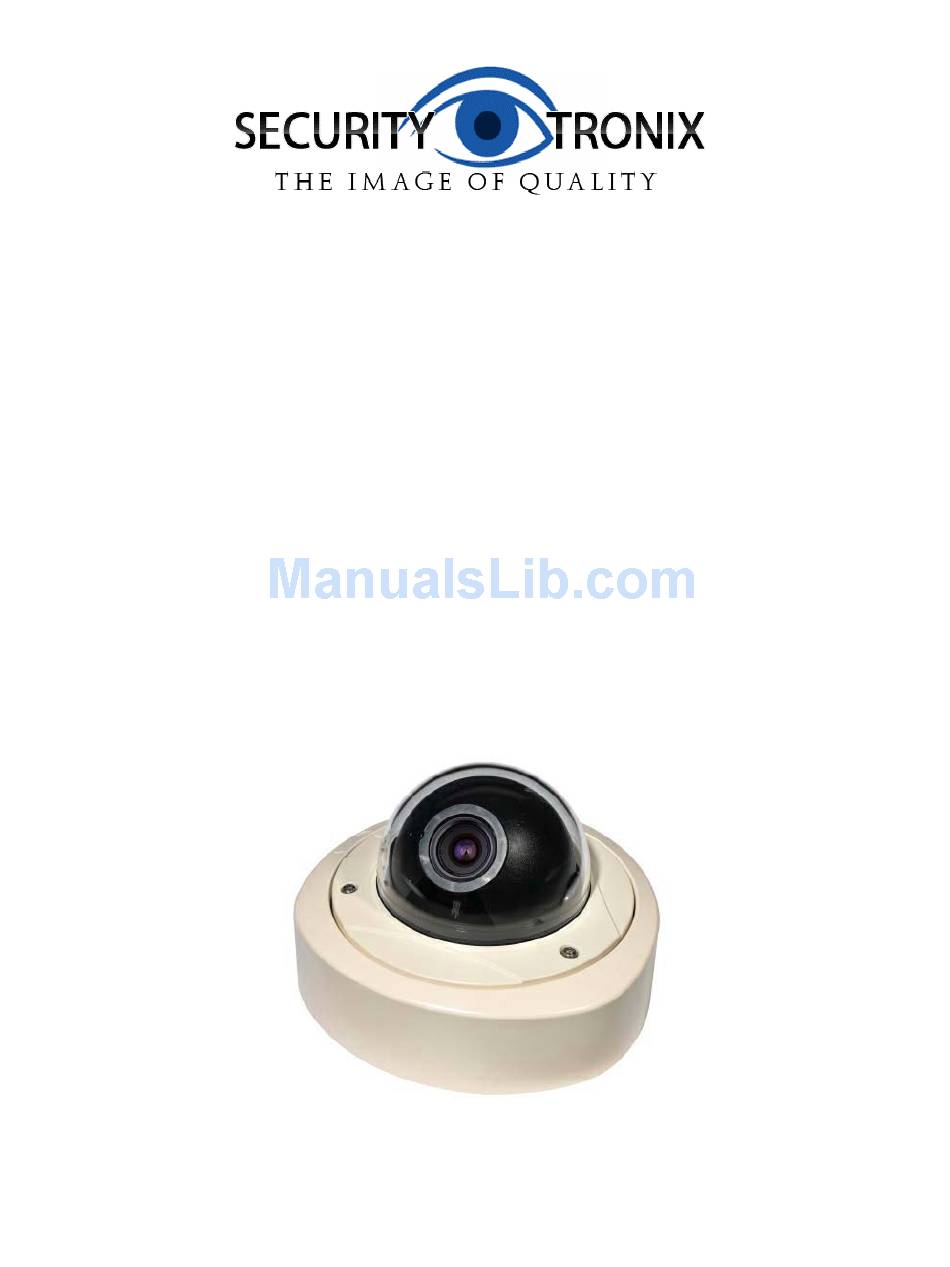

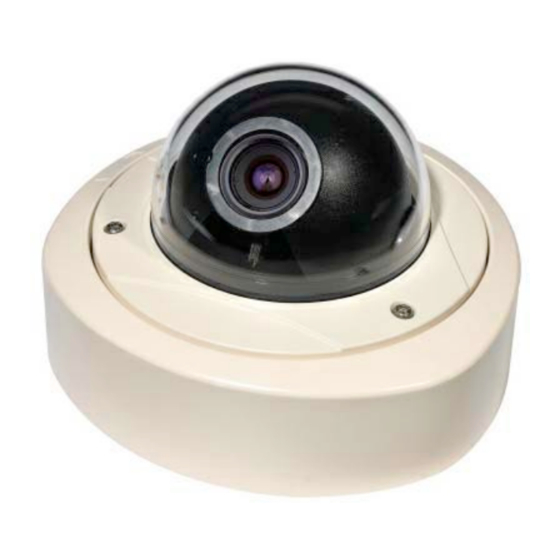

- Page 1 INSTALLATION MANUAL ST-D600DN2812-DSHB Super WDR, 3D DNR True Day & Night Dome Camera with Heater & Blower v1.0 1/19/11...
-
Page 2: Package Contents
The camera uses a 1/3” SONY Color Vertical Double Density CCD, provides 600TV lines of resolution in color and 700TV lines in B&W. The ST-D600DN2812-DSHB has a 2.8mm – 12mm lens for wide or narrow viewing. The 3 axis mount, built-in RS485 connection and on-screen display make this camera very easy to set up. -
Page 3: Unpacking And Handling
-4F° - 140°F 18. Operating Temperature 19. Operating Humidity 30% - 80% 20. Power Supply DC12V 150mA, AC24V 360mA (blower & heater on) 21. Dimensions 7”x4.5” 22. Weight 2.5 lbs. INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. -
Page 4: Wiring Connections
4. WIRING CONNECTIONS DC Power Wiring AC Power Wiring v1.0 1/19/11... - Page 5 To Adjust the Varifocal Lens v1.0 1/19/11...
-
Page 6: Osd Settings
5. OSD SETTINGS Accessing and setting the camera functions are done through the camera’s On Screen Display (OSD) via the included Video & External OSD Control Cable. A menu item may be selected my moving the joystick UP, DOWN, LEFT or RIGHT. The selected item may be entered by taping the joystick. - Page 7 OSD SETTINGS LENS DC, E LC E.SHUTTER AUTO, 1 /50(PAL), 1 /60(NTSC), ...
- Page 8 RED, M AGENTA, Y ELLOW, G RAY> MASK8 OFF ...
-
Page 9: Troubleshooting
Weight levels allow a dark area to become brighter. A lower Weight level is selected for a darker condition while higher levels are for increased brightness. 3D-Digital Noise Reduction (DNR) reduces the background noise in a low luminance environment. Upgraded 3D filtering ensures an even more clear image. Per the menu settings: ...
