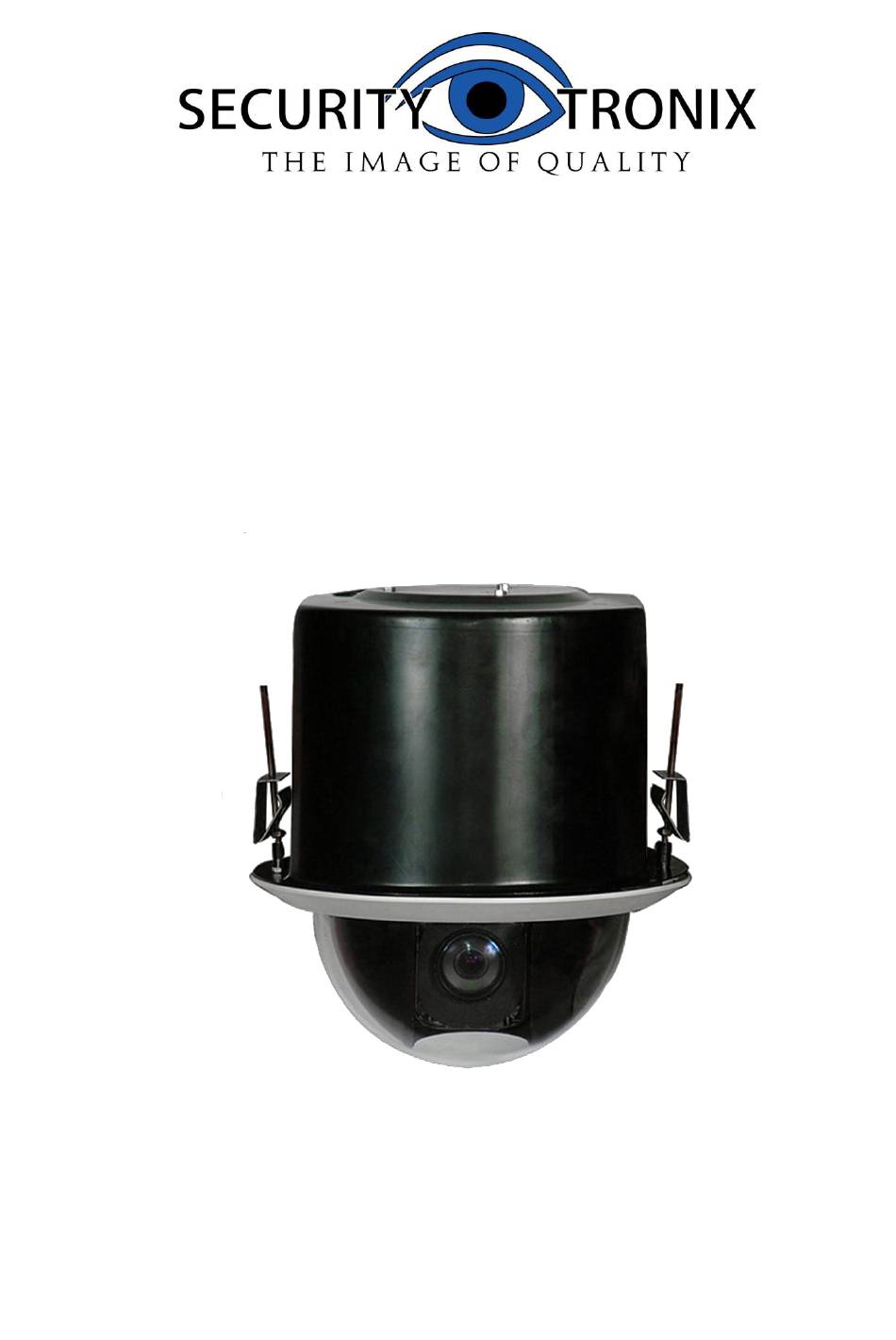

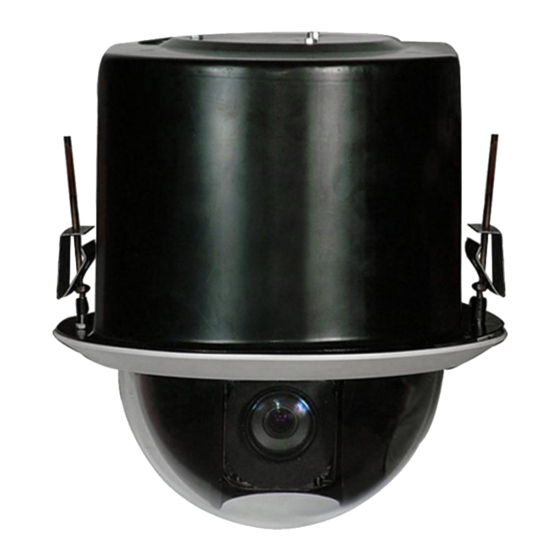

- Page 1 ST-PTZ650FM-23X INDOOR FLUSH MOUNT PTZ CAMERA Installation Manual...
- Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. PRECAUTIONS: 1. Persons without technical qualifications should not attempt to operate this dome device before reading this manual thoroughly.
-
Page 3: Package Contents
IMPORTANT SAFEGUARDS 1. Read these instructions before attempting installation or operation of this camera 2. Keep these instructions for future reference 3. Heed all warnings and adhere to electrical specifications Follow all instructions 4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners 5. -
Page 4: Specification
Specification Horizontal Rotation Speed 200°/s Tilt Rotation Speed 100°/s Horizontal Rotation Range 360° Tilt Rotation Range 93° Auto Flip Horizontal 180°, Vertical 180° Ratio Speed Supported PWR on Action Memory/NOP/A-B scan/360/Home/Tour 1-3 360° Scan Flip Range 0°-93° selectable A-B Scan User programmable A-B Scan Speed 1-64 speed selectable... -
Page 5: Installation
Installation DIP Switch Settings Preparation Before installation, make sure that the protocol, baud rate and address code used by the product is fully consistent with the PTZ control device. The corresponding DIP switch diagram can be seen below: Address Settings DIP switch SW1 is for the address settings of camera. - Page 6 RS-485 Bus Matching Resistance The 8 bit of DIP switch SW2 is to select the matching resistor. To the control center, in order to prevent the reflection and interference of RS-485 communication signal and other signals, the parallel matching resistor is needed in the communication interface of the dome camera at the end away from the control center.
-
Page 7: Function Instruction
Function Instruction Power Up Action <SYSTEM> <SYSTEM> PROTOCOL ATUO PROTOCOL ATUO DOME ID DOME ID COMM COMM VERSION VERSION PAN: XXX TILT: XXX DETECTING Power Up Self Testing Pan, Tilt, Camera Self-test Completion Pan action: Pan & rotate, then stop at the zero coordinate. ... - Page 8 Special Functions The follow presets are predefined as special functions. “Call” these preset numbers to enable those functions ： PREST FUNCTION PRESET FUNCTION Pan scan180 º Freeze on Reset Freeze off Digital zoom on A-B scan Digital zoom off OSD off Auto day/night OSD on Switch to night...
- Page 9 OSD Menu Menu Index...
-
Page 10: System Information
<MAIN MENU> <SYSTEM> <DOME> <CAMERA> <LANGUAGE> <DISPLAY> <RESET> EXIT fig 4.1.1 Get into the Menu Screen System Information <SYSTEM> PROTOCOL AUTO DOME ID COMM 2400.N.1 VERSION EXIT Fig 4.2.1 MFG ： Max 15 characters display on the screen. PROTOCOL ： Display the protocol of the dome... - Page 11 DOME ID ： Display the dome address. COMM: Format: Baud rate, Check bit, Data bit, Start bit VERSION: The current software version Note: Protocol, ID and COMM all can be set in menu <COMM>. Dome <DOME> <COMM> <GUARD TOURS> <A-B SCAN> <PAN SCAN>...
- Page 12 DEVICE ID Each dome will have its own unique ID number. CHECK ID Enter the device ID above in this field, to tell all domes in the system which specific unit you would like to make changes to. TARGET ID Target ID is available from 001 to 250.
- Page 13 GUARD TOUR Total 3 guard tours selectable: 01, 02, 03. SETTING Each guard tour includes max 16 presets. The number of the preset is from 1 ~ 63. Dwell time is 1 to 60s selectable. Speed is 1 to 64 speeds selectable. INIT After init, preset point, dwell time, speed will resume to the default setting.
- Page 14 DELETE Delete the presets from the A-B scan. After deleting, the preset points all display as “0”. Please note the actual presets are not removed from the camera, they are just removed from the A-B scan. Pan Scan <PAN SCAN> PAN SCAN RUNNING…...
- Page 15 When park mode is OFF status, the dome doesn’t run park mode. When park mode is PRESERVE ACTION status, it remembers the previous action (A-B scan, Pan scan, Guard tour 01, Guard tour 02, Guard tour 03). Example: If the A-B scan was previously used, when the action stops unexpectedly, the camera enters the park mode to continue to run the A-B scan.
- Page 16 RATIO SPEED Ratio speed can be set as ON or OFF status. AUTO FLIP Auto flip can be set as ON or OFF status. OTHERS Set other options. Camera <CAMERA> AUTO ZOOM SPEED QUICK DIGITAL ZOOM FOCUS AUTO IRIS AUTO FREEZE EXIT Fig.
- Page 17 Video freeze is ON and OFF selectable Note : Depending on the installed camera module, the CAMERA MENU may not be supported. Language <LANGUAGE> LANGUAGE ENGLISH EXIT Fig. 4.5.1 LANGUAGE Language can be set as Chinese or English. The default setting is English. Display <DISPLAY>...
- Page 18 COMM Enable or disable the display of the dome’s communication settings on screen Reset <RESET> <DOME RESTART> <DOME RESTART> <SYS DATA> CONFIRM: Save data, <CAM DATA> dome restart <PRESET> EXIT EXIT <SYS DATA> <CAM DATA> CONFIRM ： Factory default CONFIRM ： Factory default EXIT EXIT <PRESET>...
-
Page 19: Auto Temperature Control
Auto Temperature Control This product has a built-in fan and heater, which automatically cool or heat through a temperature sensing circuit inside the dome. Appendix Ⅰ Anti-lightning, Anti-surge This product has lightning protection with TVS tube technology, which can effectively prevent the transient lightning below 3000V, surge and damages caused by other types of pulse signals. -
Page 20: Appendix Ⅲ Common Knowledge On Rs-485 Bus
● Please use a soft dry cloth to wipe internal and external surfaces. ● If dirt is serious, a mild detergent may be used. Appendix Ⅲ Common Knowledge on RS-485 Bus 1. Basic Feature of RS-485bus According to industry bus standard of RS-485, RS-485 bus is half-duplex communication bus with the characteristic impedance of 120Ω, whose maximum load capacity is 32 payloads (including the master device and the controlled device). - Page 21 The following is a dome address code mapping table to set PELCO_D: Switch Settings Address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 ---- ---- ---- ---- ---- ---- ---- ----...
- Page 22 The following is a dome address code mapping table to set PELCO_P: Switch Settings Address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 ---- ---- ---- ---- ---- ---- ---- ----...
-
Page 23: Troubleshooting
TROUBLESHOOTING No picture after applying power (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. The picture has ripples (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
