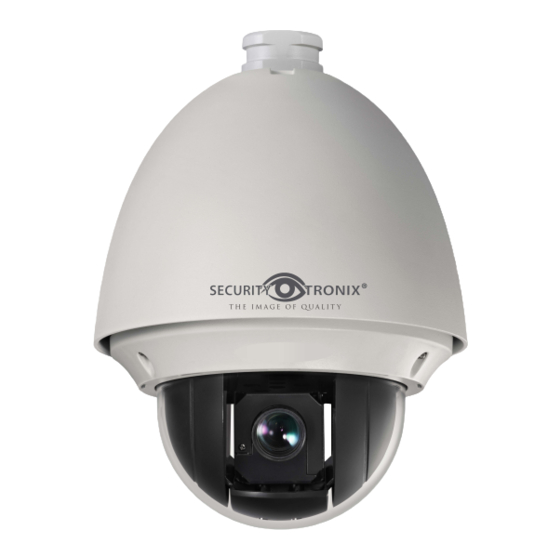

Security Tronix ST-IP2PTZ Quick Start Quide

Hide thumbs

Advertisement

Quick Links

Download this manual

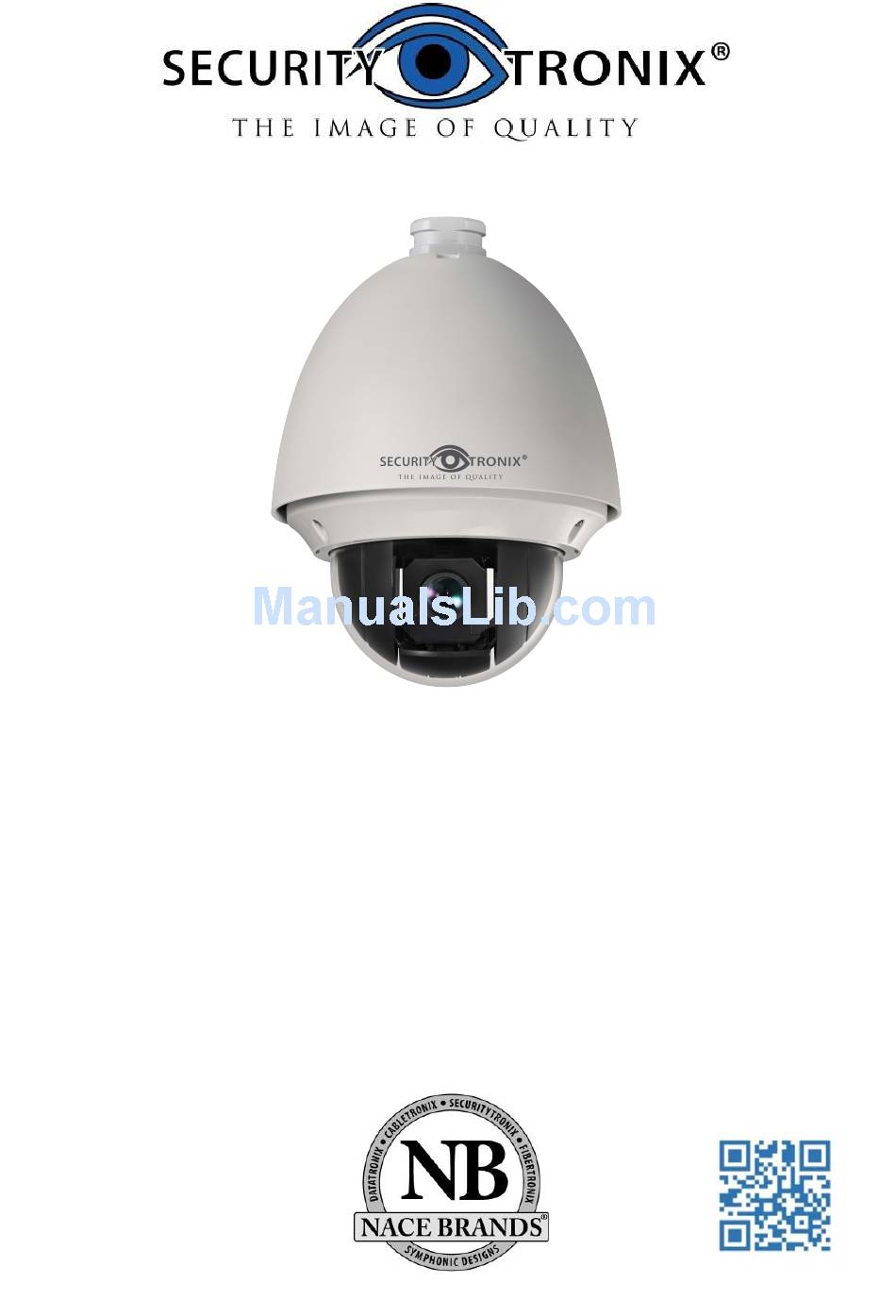

ST-IP2PTZ

QUICK START GUIDE

www.nacebrands.com
www.securitytronix.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-IP2PTZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Security Tronix ST-IP2PTZ

Summary of Contents for Security Tronix ST-IP2PTZ

  • Page 1: Quick Start Guide

    ST-IP2PTZ QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual applies to the ST-IP2PTZ network speed dome camera. This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
  • Page 3 ST-IP2PTZ QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP2PTZ QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death.
  • Page 5 ST-IP2PTZ QUICK START GUIDE  Exposing the equipment to direct sun light, low ventilation or heat sources such as heaters or radiators is not advisable (ignoring this may cause a fire hazard).  Do not aim the speed dome at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction), and affecting the longevity of the sensor at the same time.
  • Page 6 ST-IP2PTZ QUICK START GUIDE Table of Contents 1 Overview ...................... 6 2 Installation ....................7 3 Setting the Network Dome over the LAN............9 4 Accessing via Web Browser ................ 12...

  • Page 7: Overview

    ST-IP2PTZ QUICK START GUIDE 1 Overview Please make sure the power to the speed dome has been disconnected before connecting the cables. The cable interfaces of the network speed dome are shown in the following figure. The cables are distinguished by different colors. The labels attached on the cables are for identification.

  • Page 8: Installation

    ST-IP2PTZ QUICK START GUIDE 2 Installation Before you start:  Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included.  Please make sure the wall is strong enough to withstand more than 8 times the weight of the dome and the mount.
  • Page 9 ST-IP2PTZ QUICK START GUIDE Figure 2-2 Secure the Mount 4. Install the speed dome to the mount. 1). Hang the safety rope to the speed dome and then hook to the mount as shown in Figure 2-3. 2). Route the cables of the speed dome through the wall mount.

  • Page 10: Setting The Network Dome Over The Lan

    ST-IP2PTZ QUICK START GUIDE 3 Setting the Network Dome over the LAN To view and configure the speed dome via LAN (Local Area Network), you need to connect the network speed dome in the same subnet as your PC. Then install the SADP or the client software to search and change the IP of the network speed dome.
  • Page 11 ST-IP2PTZ QUICK START GUIDE Figure 3-2 Search Online Devices Device can be searched and displayed in the list 15 seconds after it goes Note: online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually: You can also click to refresh the online device list manually.
  • Page 12 ST-IP2PTZ QUICK START GUIDE Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters Enter the IP address of network speed dome in the address field of the web browser to view the live video. Notes:  The default IP address is 192.168.1.64. The default user name of administrator is admin, and password is 12345.

  • Page 13: Accessing Via Web Browser

    ST-IP2PTZ QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 14 ST-IP2PTZ QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in 6. Reopen the web browser after the installation of the plug-in and repeat the above steps 2-4 to login. For detailed instructions of further configuration, please refer to the user Note: manual of network dome.
  • Page 15 SECURITYTRONIX 1-Year Limited PTZ Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the PTZ Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the PTZ Camera.
