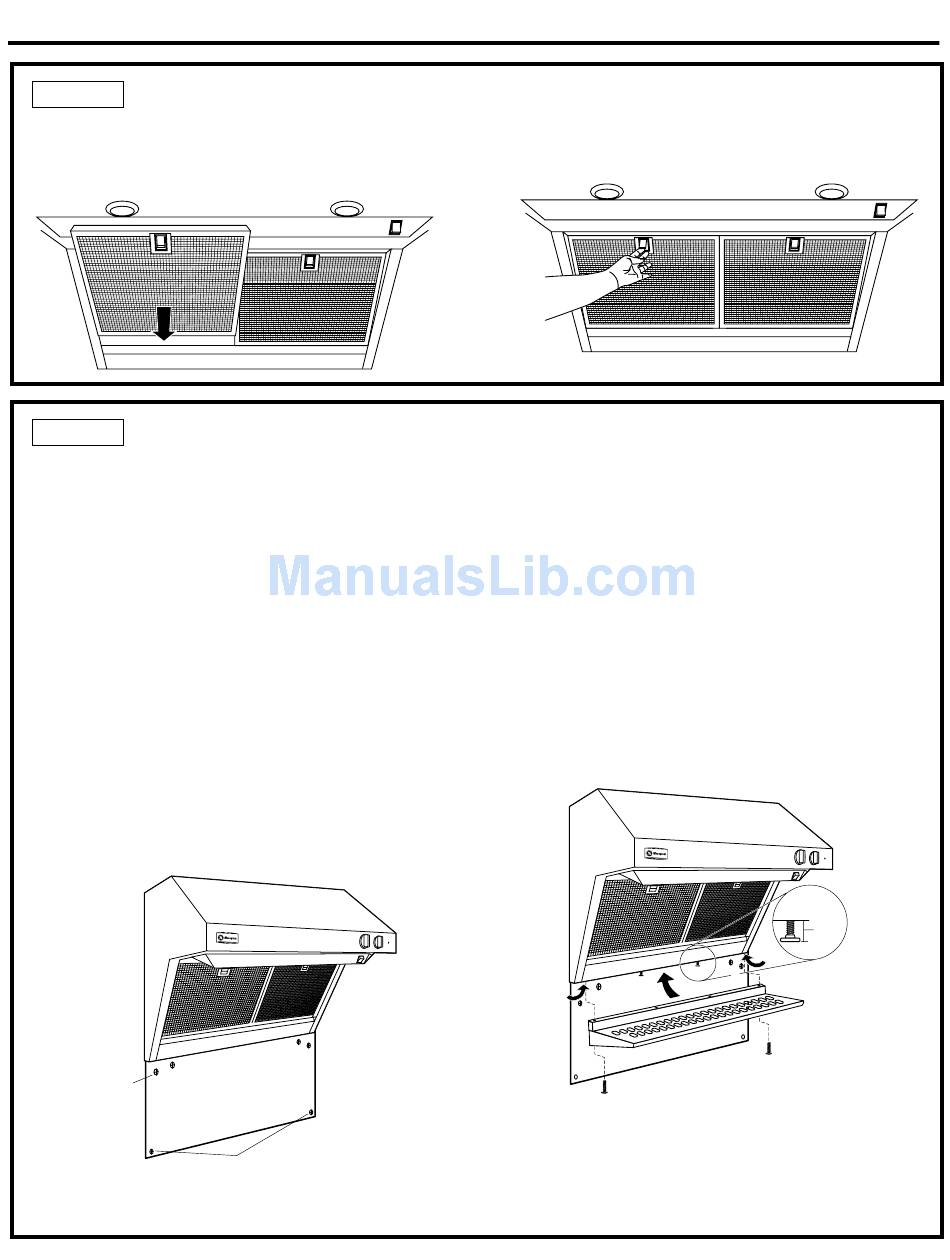

STEP 7 INSTALL FILTERS

• Insert the filter into the opening and drop into the
bottom. Raise filter to the top of the opening and
lock into place.

STEP 8 INSTALL BACKGUARD AND SHELF

INSTALL BACKGUARD:
• Remove packaging.
• Place backguard against the bottom of the hood to
use as a template. Mark upper screw locations "A"
and "B"
• Remove backguard. DO NOT remove the protective
film at this time.
• Drill four 1/8" pilot holes at screw locations "A"
and "B".
• If drill did not enter studs, enlarge holes to 3/8".
• Insert wall anchors into the enlarged holes. Remove
screws from wall anchors.
• Peel protective film about 3" away from the top and
bottom edge.
• Align and secure backguard to wall using 2 wall
anchor screws or wood screws in locations "A".
• Install 2 screws through hole locations "C" at the
bottom of the backguard.
A
Mounting
B
Holes for
B A C K G
Backguard (A, C)
and Shelf (B)
• If installing the backguard alone, without the
shelf, drive screws in all locations shown.
Installation Instructions
A
B
U A R D
C
• To remove the filters, grasp the latch, pull the filter
up and lift out.
This hood can be installed with the warm-
ing shelf and backguard together or with
the warming shelf or backguard alone.
INSTALL SHELF OVER BACKGUARD:
• Install two shoulder screws into holes "D" in the
bottom of hood flange leaving 1/8" gap.
• Remove shelf packaging and protective film.
• Engage shoulder screws into the keyhole slots in the
top of the shelf. Slide shelf towards the left to lock
into place.
• Install two 3/4" long machine screws through the
bottom of the shelf into the bottom hood flange,
location "E".
• Install anchor screws through the shelf and into the
wall holes "B".
• Remove all protective film.
D
E
B
14
1/8"
Gap
E
D
B
