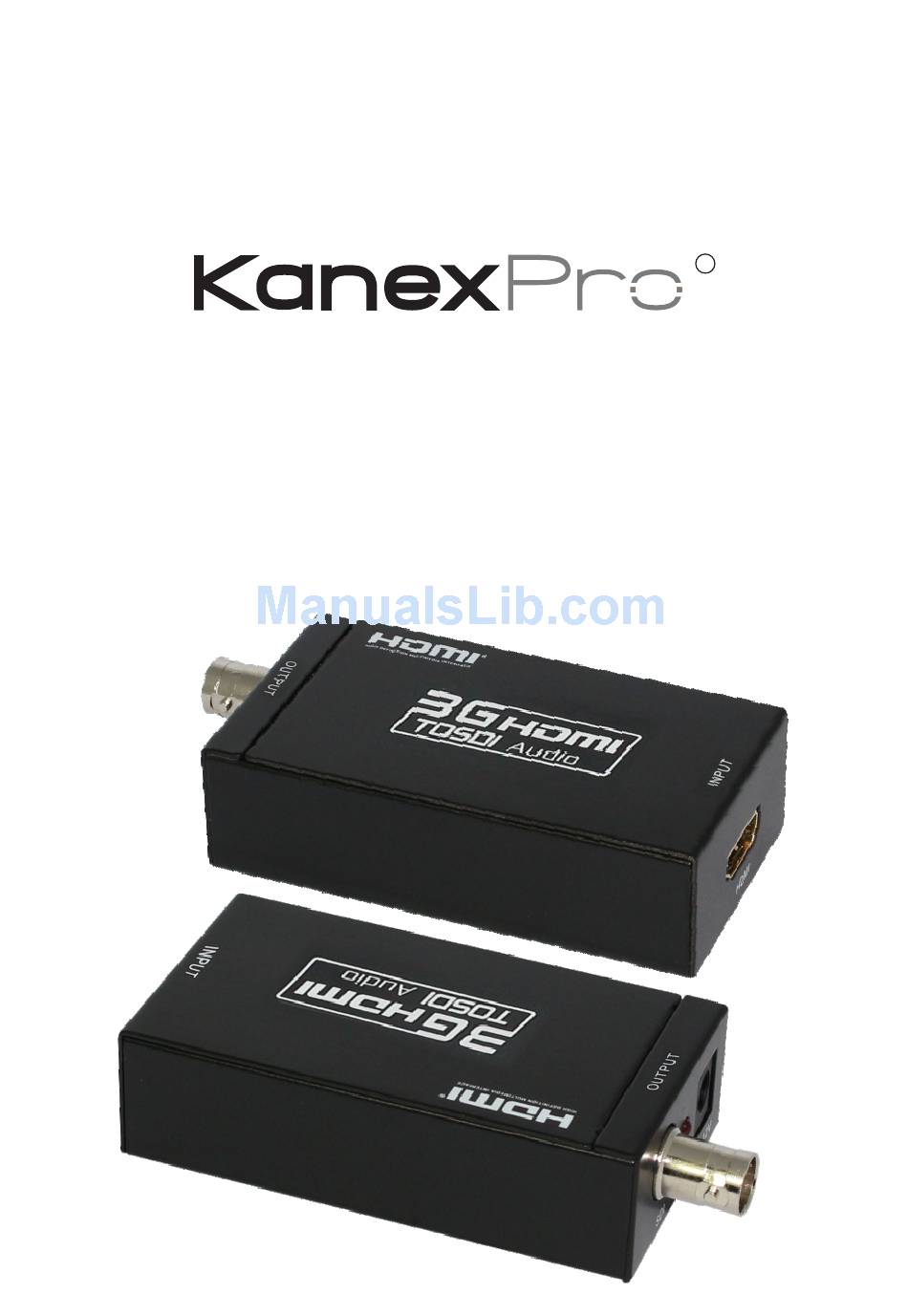

- Page 1 EXT-HDSDIX HDMI to 3G/HD-SDI/ SDI Converter...
-
Page 2: Speci Cations

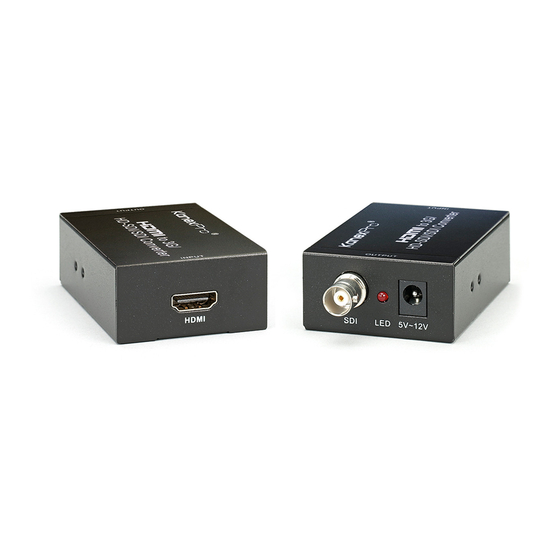

Introduction Introduction to EXT-HDSDIX e KanexPro HDMI to SDI converter is a compact device designed to transform high resolution HDMI sources such as HD cameras, GoPro cams, HDMI based PC's to an SDI monitor. e compact design can easily t behind an SDI display, in the back of a rack or directly on a camera rig. -
Page 3: Specifications
Specifications Input: 1 x HDMI Video Input: Input Connector: 1 x HDMI Female connector Input Video Signal: HDMI Output: 1 x SDI Video Output: Output Connector: 1 x BNC Output Video Signal: SD/HD/3G SDI 1080p, 1920x1080 Input Resolutions (HDTV): 720p; 1280x720 1280x720, 480I (NTSC mode) 576i Standard PAL mode HDMI Input Timings: Supports HDMI input timings: 480i@59.94, 576i,... -
Page 4: Application Example
Operation controls and functions SDI-OUT: is slot is where you will connect the SDI display with a coaxial cable POWER LED: is red LED will illuminate when the converter is connected to the provided power supply DC IN: Plug the 5V-12V DC power supply into the unit HDMI IN: is slot is where you will connect the HDMI source with a HDMI cable Application Example... - Page 5 KanexPro's entire liability and Customer's exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers' receipt.
