IFO2175-830 Series Panel PC User's Manual
CHAPTER 2
HARDWARE INSTALLATION
The IFO2175-830 Series are convenient for your various hardware
configurations, such as CPU (Central Processing Unit) and HDD (Hard
Disk Drive). The chapter 2 will show you how to install the hardware. It
includes:
2.1
DRAM Installation
The IFO2175-830 provides one 200-pin DDR2 SODIMM sockets
that support system memory up to 2GB. Please follow steps below
to install the memory modules:
Step 1
Turn off the system, and unplug the Power cord.
Step 2

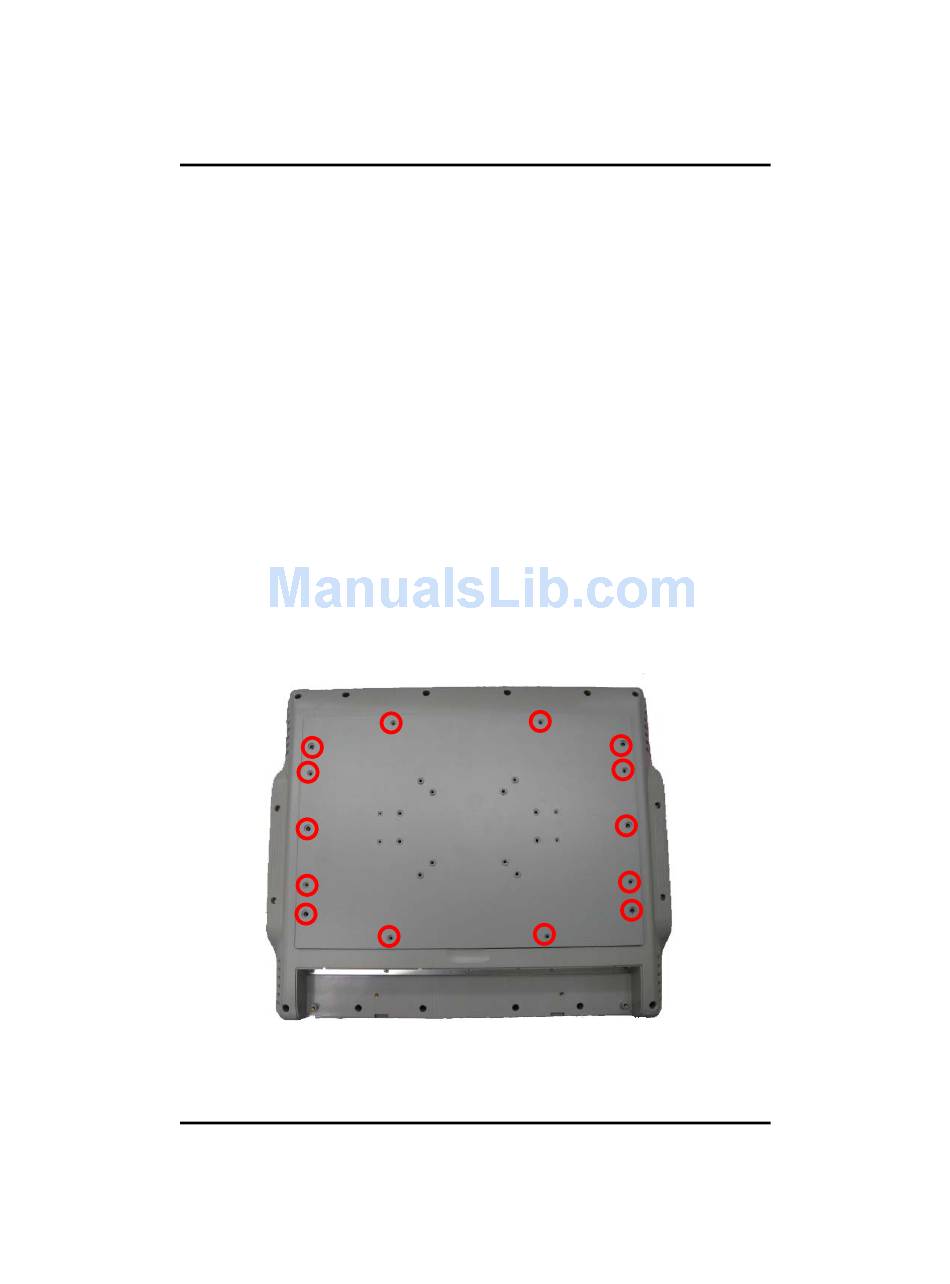

Locate and release these screws to open the back cover
Hardware Installation
10
