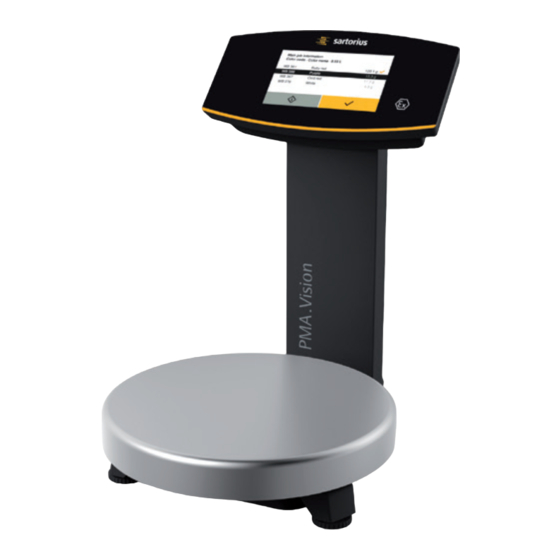

Sartorius PMA.Vision Connection And Quick Reference

Sartorius PMA.Vision Connection And Quick Reference

Paint mixing station
Hide thumbs Also See for PMA.Vision:

Advertisement

Quick Links

Download this manual
Color Marketing
Vehicle Refinishes – North America
Not from Sartorius, but provided from AkzoNobel and needed for set up is the StarTech ethernet to USB
converter.
1845 Maxwell Drive
Troy, MI 48084
USA
www.akzonobel.com
© 2017 Akzo Nobel N.V. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PMA.Vision and is the answer not in the manual?

Questions and answers

Related Manuals for Sartorius PMA.Vision

Summary of Contents for Sartorius PMA.Vision

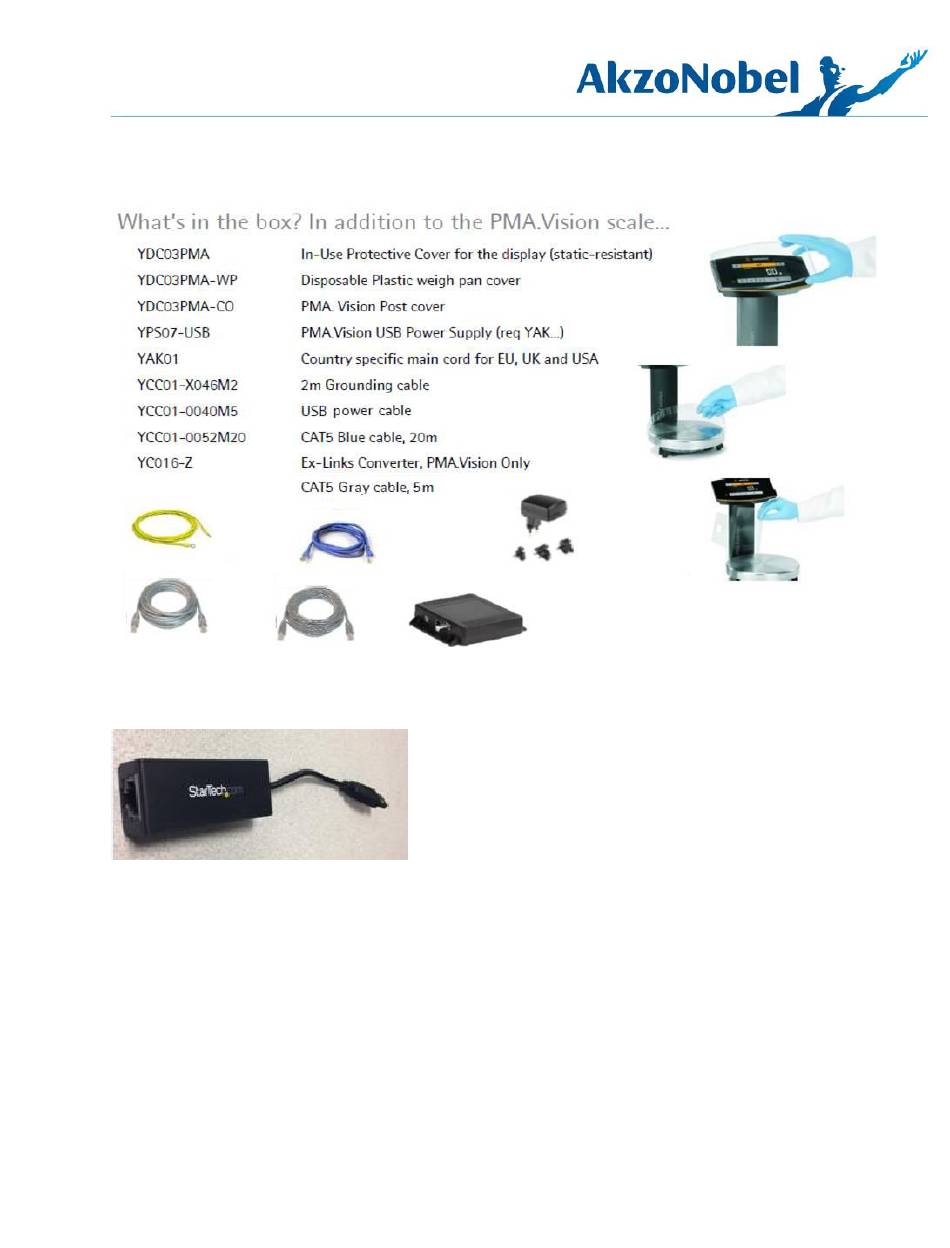

  • Page 1 Color Marketing Vehicle Refinishes – North America Not from Sartorius, but provided from AkzoNobel and needed for set up is the StarTech ethernet to USB converter. 1845 Maxwell Drive Troy, MI 48084 www.akzonobel.com © 2017 Akzo Nobel N.V. All rights reserved.
  • Page 2 PMA.Vision and MixIt Pro Computer Hardware Connections 1. Connect one end of the blue ethernet cable into the PMA.Vision scale (plugs into the back of the display screen). 2. Connect the other end of the blue ethernet cable to the power supply box into to the port marked “Scale.”...
  • Page 3 4. Connect the other end of the USB cable to the AC adapter and plug the adapter into the wall or power strip. 5. After the scale powers on, tap the menu icon for the home page.
  • Page 4 As an alternative you can use the supplied StarTech ethernet to USB adapter to connect PMA.Vision directly to the MixIt Pro computer. If you will be connecting PMA.Vision via the Ethenet cable to the router via DHCP you should skip to step 13, otherwise continue with the next step.
  • Page 5 9. Tap DHCP (On). 10. “On” will be in orange text and a dark background, as shown below.
  • Page 6 11. Tap “Off” Confirm that “Off” is now in orange text and a dark background, as shown below. Then tap the check mark. 12. It will return to the Ethernet screen and it will now show DHCP (Off). Tap left arrow to exit the settings menu and return to the home page.
  • Page 7 “Ethernet.” 14. If connecting directly to the PC, connect the gray Ethernet cable to the StarTech Ethernet to the USB adapter. If connecting PMA.Vision to the shop’s network, plug the other end of the Ethernet cable into the shop’s router.
  • Page 8 16. If PMA.Vision is connected to the shop’s network, in Tools/Settings/Devices edit PMA.Vision and enter the IP address or host name for the PMA.Vision scale that was assigned by the network administrator. The default static IP address for PMA.Vision scale is 192.168.140.16. If the static IP address for the scale is changed, the new IP address must also be entered into the PMA.Vision...
  • Page 9 Mixes are queued the same way except PMA.Vision queue is now available. • You can set PMA.Vision as the default Queue by clicking on Mixing Queues, highlight PMA.Vision and then click “Set as Default Queue” (you must do this for each user login).
  • Page 10 MIXING • Mixes that are queued to PMA.Vision appear in the job list on the scale. Tap on the job that you want to mix. • You can scroll up and down on the details screen to see more information.
  • Page 11 • Place empty can then tap the arrow. • Start pouring the first component.
  • Page 12 • Pour to 0.0 then tap the arrow to go to the next component. • If you over pour you are given the option to recalculate.
  • Page 13 • When the last component is poured the formula result is displayed. • The completed mix is automatically removed from the job list.
